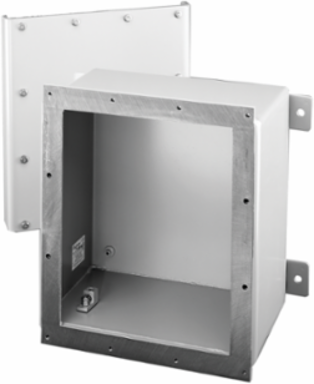

nVent Hoffman A10D84 NEMA Type 9 Gray Steel Enclosure 10.00x8.00x4.00 Inch
- MPN: A10D84
- UPC: 783510320409
- PPN: HOF-A10D84
- UNSPSC: 39121324
CAD
$2097.85
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Uniquely designed enclosure for use in Class II Division 1 and 2 locations, per NEC 500. This NEMA Type 9, A10D84 item measures 10.00x8.00x4.00 inches with a material of Steel colored Gray.
Features
- Ends are .38-in. (10-mm) steel plate to provide a minimum of 3.50 full threads for conduit sizes through 2.00 in. (51 mm)
- Covers are .25-in. (6-mm) thick to allow mounting of NEMA 9 pushbuttons and pilot lights, which require threaded holes (3/4-14 NPSM thread)
- "Heavy duty cover hinges on enclosures when ""A"" is 20.00 in. (508 mm) or more"
- Fiber gasket, mechanically attached to cover, assures dust-tight enclosure
- Weldnuts or collar studs provided for mounting optional panel
Documentation & Downloads
Specifications
Key Specifications
- BABA
- Contact Manufacturer
- Width (W)
- 203
- Protection Rating
- NEMA Type 9
- Color Code
- ANSI 61
- Door Thickness
- 6.4
- Mounting (G x H)
- 197 x 244
- Weight
- 29.7
- Size
- 10.00x8.00x4.00 in
- NEMA Rating
- 9 Class II Hazardous location certified
Height (H)254
Depth (D)102
FinishPowder Coated
Body Thickness4.8
Overall Dimensions (L x W)318 x 276
Mounting Hole Quanity4
MaterialSteel
ColorGray
