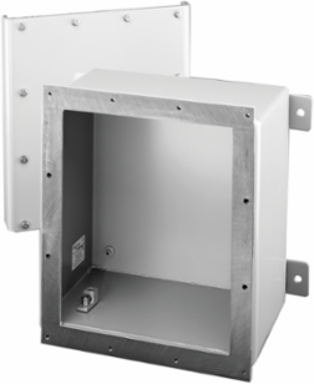

nVent Hoffman A36D3012 NEMA Type 9, 36.00x30.00x12.00, Gray, Steel
nVent Hoffman A36D3012 NEMA Type 9, 36.00x30.00x12.00, Gray, Steel
- MPN: A36D3012
- UPC: 783510323004
- PPN: HOF-A36D3012
- UNSPSC: 39121324
Spec sheet
Loading compare button...
Available to Order
Company Stock:
0
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
Description
Uniquely designed enclosure for use in Class II Division 1 and 2 locations, per NEC 500. This NEMA Type 9, A36D3012 item measures 36.00x30.00x12.00 inches with a material of Steel colored Gray.
Features
- Ends are .38-in. (10-mm) steel plate to provide a minimum of 3.50 full threads for conduit sizes through 2.00 in. (51 mm)
- Covers are .25-in. (6-mm) thick to allow mounting of NEMA 9 pushbuttons and pilot lights, which require threaded holes (3/4-14 NPSM thread)
- "Heavy duty cover hinges on enclosures when ""A"" is 20.00 in. (508 mm) or more"
- Fiber gasket, mechanically attached to cover, assures dust-tight enclosure
- Weldnuts or collar studs provided for mounting optional panel
Specifications
Specifications
- BABA
- Contact Manufacturer
- Width (W)
- 762
- Protection Rating
- NEMA Type 9
- Color Code
- ANSI 61
- Door Thickness
- 6.4
- Mounting (G x H)
- 781 x 803
- Weight
- 340
- Size
- 36.00x30.00x12.00 in
- NEMA Rating
- 9 Class II Hazardous location certified
Height (H)914
Depth (D)305
FinishPowder Coated
Body Thickness4.8
Overall Dimensions (L x W)978 x 835
Mounting Hole Quanity6
MaterialSteel
ColorGray
