nVent Hoffman A12D106 NEMA Type 9 Electrical Enclosure, 12.00x10.00x6.00 Inch, Gray Steel
- MPN: A12D106
- UPC: 783510320805
- PPN: HOF-A12D106
- UNSPSC: 39121324
CAD
$2465.08
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description

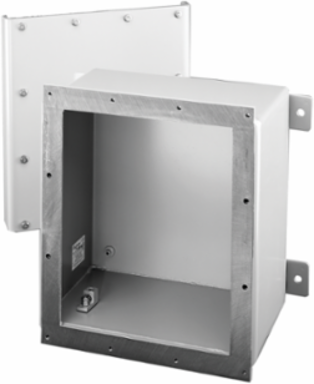

Uniquely designed enclosure for use in Class II Division 1 and 2 locations, per NEC 500. This NEMA Type 9, A12D106 item measures 12.00x10.00x6.00 inches with a material of Steel colored Gray.
Features
- Ends are .38-in. (10-mm) steel plate to provide a minimum of 3.50 full threads for conduit sizes through 2.00 in. (51 mm)
- Covers are .25-in. (6-mm) thick to allow mounting of NEMA 9 pushbuttons and pilot lights, which require threaded holes (3/4-14 NPSM thread)
- "Heavy duty cover hinges on enclosures when ""A"" is 20.00 in. (508 mm) or more"
- Fiber gasket, mechanically attached to cover, assures dust-tight enclosure
- Weldnuts or collar studs provided for mounting optional panel
Documentation & Downloads
Specifications
Key Specifications
| BABA | Contact Manufacturer |
|---|---|
| Width (W) | 254 |
| Protection Rating | NEMA Type 9 |
| Color Code | ANSI 61 |
| Door Thickness | 6.4 |
| Mounting (G x H) | 248 x 295 |
| Weight | 46.1 |
| Size | 12.00x10.00x6.00 in |
| NEMA Rating | 9 Class II Hazardous location certified |
| Height (H) | 305 |
|---|---|
| Depth (D) | 152 |
| Finish | Powder Coated |
| Body Thickness | 4.8 |
| Overall Dimensions (L x W) | 368 x 327 |
| Mounting Hole Quanity | 4 |
| Material | Steel |
| Color | Gray |
