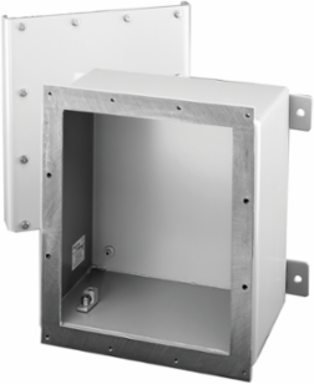

nVent Hoffman A24D2410 NEMA Type 9, 24.00x24.00x10.00, Gray, Steel
- MPN: A24D2410
- UPC: 783510322304
- PPN: HOF-A24D2410
- UNSPSC: 39121324
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Uniquely designed enclosure for use in Class II Division 1 and 2 locations, per NEC 500. This NEMA Type 9, A24D2410 item measures 24.00x24.00x10.00 inches with a material of Steel colored Gray.
Features
- Ends are .38-in. (10-mm) steel plate to provide a minimum of 3.50 full threads for conduit sizes through 2.00 in. (51 mm)
- Covers are .25-in. (6-mm) thick to allow mounting of NEMA 9 pushbuttons and pilot lights, which require threaded holes (3/4-14 NPSM thread)
- "Heavy duty cover hinges on enclosures when ""A"" is 20.00 in. (508 mm) or more"
- Fiber gasket, mechanically attached to cover, assures dust-tight enclosure
- Weldnuts or collar studs provided for mounting optional panel
Documentation & Downloads
Specifications
Key Specifications
- BABA
- Contact Manufacturer
- Width (W)
- 610
- Protection Rating
- NEMA Type 9
- Color Code
- ANSI 61
- Door Thickness
- 6.4
- Mounting (G x H)
- 476 x 651
- Weight
- 199
- Size
- 24.00x24.00x10.00 in
- NEMA Rating
- 9 Class II Hazardous location certified
Height (H)610
Depth (D)254
FinishPowder Coated
Body Thickness4.8
Overall Dimensions (L x W)673 x 683
Mounting Hole Quanity4
MaterialSteel
ColorGray
