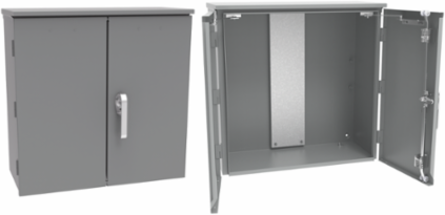

nVent Hoffman A484814CTAUE CT Cabinet 2-Door NEMA Type 3R, 48 x 48 x 14 Inch, Steel
- MPN: A484814CTAUE
- UPC: 783510393021
- PPN: HOF-A484814CTAUE
- UNSPSC: 39121319
CAD
$976.77
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Cabinets provide outdoor protection for instrument current transformer required in watt-hour metering. This CT Cabinet 2-Door with Steel Foot-Mount Panel Type 3R, A484814CTAUE item measures 48x48x14in with a material of Steel colored Gray.
Features
- 3-point latch with SS handle and padlock clasp
- Overlapping double doors with doorstop
- Lift-off hinges for removable doors
- Includes steel panel and studs for either vertical or horizontal panel mounting
- Mounting holes on back of enclosure
- Grounding provisions
- No gasketing or knockouts
Specifications
Key Specifications
| BABA | Contact Manufacturer |
|---|---|
| Width (W) | 1,219 |
| Protection Rating | NEMA Type 3R |
| Color Code | ANSI 61 |
| IP Rating | IP32 |
| Material | Mild Steel |
| Color | ANSI61 Gray |
| Mounting | Wall Mounting |
| NEMA Rating | Type 3R |
| Height (H) | 1,219 |
|---|---|
| Depth (D) | 355 |
| Finish | Galvanized |
| Thickness (T) | 1.9 |
| Weight | 210.85 |
| Size | 48.00 x 48.00 x 14.00 inch |
| Cable Entry | No |
| Cubic Capacity | 18.67 Cu-Ft |
| Insulation | No |
