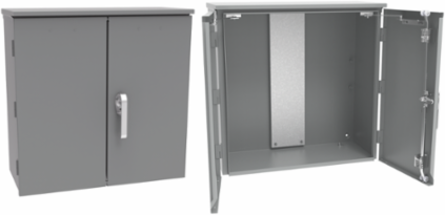

nVent Hoffman A545416CTAUE CT Cabinet 2-Door 54x54x16 Inch Gray Steel NEMA Type 3R
- MPN: A545416CTAUE
- UPC: 783510393038
- PPN: HOF-A545416CTAUE
- UNSPSC: 39121319
CAD
$1095.23
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Cabinets provide outdoor protection for instrument current transformer required in watt-hour metering. This CT Cabinet 2-Door with Steel Foot-Mount Panel Type 3R, A545416CTAUE item measures 54x54x16in with a material of Steel colored Gray.
Features
- 3-point latch with SS handle and padlock clasp
- Overlapping double doors with doorstop
- Lift-off hinges for removable doors
- Includes steel panel and studs for either vertical or horizontal panel mounting
- Mounting holes on back of enclosure
- Grounding provisions
- No gasketing or knockouts
Specifications
Key Specifications
| BABA | Contact Manufacturer |
|---|---|
| Width (W) | 1,371 |
| Protection Rating | NEMA Type 3R |
| Color Code | ANSI 61 |
| IP Rating | IP32 |
| Material | Mild Steel |
| Color | ANSI61 Gray |
| Mounting | Wall Mounting |
| NEMA Rating | Type 3R |
| Height (H) | 1,371 |
|---|---|
| Depth (D) | 406 |
| Finish | Galvanized |
| Thickness (T) | 1.9 |
| Weight | 162 |
| Size | 54.00 x 54.00 x 16.00 inch |
| Cable Entry | No |
| Cubic Capacity | 27.00 Cu-Ft |
| Insulation | No |
