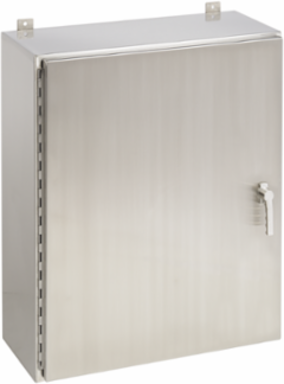

nVent Hoffman A60H3616SSLP3PT Wallmount 3-Point Latch Type 4X, 60x36x16, Brushed, SS 304
- MPN: A60H3616SSLP3PT
- UPC: 783510143268
- PPN: HOF-A60H3616SSLP3PT
- UNSPSC: 39121324
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
These enclosures feature nVent HOFFMAN's exclusive PowerGlide Handle with 3-point latching. This Wallmount 3-Point Latch Type 4X, A60H3616SSLP3PT item measures 60x36x16 in. with a material of SS304, Brushed.
Features
- Seams continuously welded and ground smooth
- Seamless foam-in-place gasket
- Rolled lip around three sides of door
- Internal 3-point latch and Type 316L stainless steel padlocking PowerGlide Handle
- Remove door by pulling stainless steel continuous hinge pin
- Data pocket is high-impact thermoplastic
- Collar studs provided for mounting optional panels
- Exterior hardware on Type 316L stainless steel enclosures matches enclosure material
- Bonding provision on door; grounding stud on body
Documentation & Downloads
Specifications
Key Specifications
- BABA
- Yes, BABA Compliant
- Width (W)
- 914
- Protection Rating
- NEMA Type 12
- Thickness (T)
- 2
- IP Rating
- IP66
- Material
- Stainless Steel
- NEMA Rating
- 4X Watertight, corrosion-resistant
Height (H)1,524
Depth (D)406
FinishBrushed #4
Data PocketLarge
Weight185
Size60.00x36.00x16.00 in
