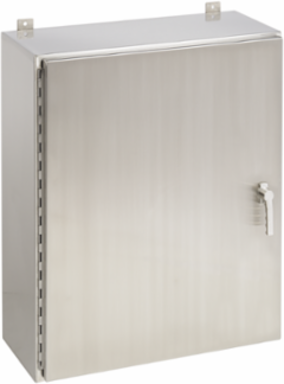

nVent Hoffman A48H3612SSLP3PT Wallmount 3-Point Latch Type 4X, 48x36x12, Brushed, SS 304
- MPN: A48H3612SSLP3PT
- UPC: 783510143237
- PPN: HOF-A48H3612SSLP3PT
- UNSPSC: 39121324
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
These enclosures feature nVent HOFFMAN's exclusive PowerGlide Handle with 3-point latching. This Wallmount 3-Point Latch Type 4X, A48H3612SSLP3PT item measures 48x36x12 in. with a material of SS304, Brushed.
Features
- Seams continuously welded and ground smooth
- Seamless foam-in-place gasket
- Rolled lip around three sides of door
- Internal 3-point latch and Type 316L stainless steel padlocking PowerGlide Handle
- Engineered with a robust NEMA Type 4X rating (as well as Type 3R, 4, 12, and 13), this enclosure provides maximum protection against windblown dust, driving rain, splashing water, and hose-directed washdowns. Constructed from high-grade Type 304 stainless steel with smooth, brushed finishes, it completely resists severe chemical corrosion and rust, making it ideal for food processing plants, pharmaceutical facilities, and marine environments.
- This spacious enclosure measures exactly 48 inches in height, 36 inches in width, and 12 inches in depth (1219mm x 914mm x 305mm). It delivers ample internal volume and accepts standard full-size subpanels, allowing industrial engineers and panel builders to layout dense arrangements of PLCs, variable frequency drives (VFDs), and terminal blocks while maintaining proper heat dissipation spacing.
- Featuring a heavy-duty 3-point latching system operated by a sleek, padlockable stainless steel PowerGlide handle, this enclosure ensures uniform gasket compression across the entire perimeter of the door. The seamless, oil-resistant foam-in-place gasket creates an airtight, watertight seal with minimal physical effort, preventing dust and moisture entry while providing high-tier security against unauthorized internal tampering.
- Fabricated from thick, 14-gauge Type 304 stainless steel with continuously welded seams that are ground smooth, the enclosure resists physical impacts and structural warping under heavy equipment loads. The door is supported by heavy-duty, removable stainless steel continuous hinges and features internal stiffeners, guaranteeing that the door remains perfectly aligned and sag-free over decades of rigorous field use.
- This industrial housing is fully UL 508A Listed (File No. E61997), CSA Certified, and conforms to IEC 60529 IP66 environmental standards. Utilizing this pre-certified nVent Hoffman enclosure streamlines your custom panel building process, ensures hassle-free municipal safety inspections.
- Remove door by pulling stainless steel continuous hinge pin
- Data pocket is high-impact thermoplastic
- Collar studs provided for mounting optional panels
- Exterior hardware on Type 316L stainless steel enclosures matches enclosure material
- Bonding provision on door; grounding stud on body
Documentation & Downloads
Specifications
Additional
- NEMA Rating
- 4X Watertight, corrosion resistant
- Protection Rating
- NEMA Type 12
- Height
- 1219 mm
- Depth
- 305 mm
- Weight
- 137 lb
- Finish
- Brushed #4
- Data Pocket
- Large high-impact thermoplastic
- Latch
- Internal 3-point latch
- Gasket
- Seamless foam-in-place
- Bonding Provision
- On door
- Door Removal
- By pulling stainless steel continuous hinge pin
- Exterior Hardware Material
- Type 316L stainless steel
IP RatingIP66
Size48 x 36 x 12 in
Width914 mm
Thickness2 mm
Material304 Stainless Steel
BABA ComplianceYes
Handle TypePowerGlide with 3-point latch
PadlockingType 316L stainless steel
SeamsContinuously welded and ground smooth
Grounding StudOn body
Collar StudsProvided for mounting optional panels
