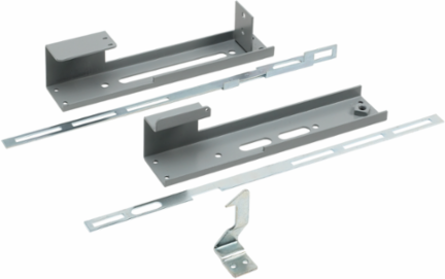

Nvent Hoffman ABBSV Operator Adapter Universal Cutout, ABB VD Small Handle, Gray, Steel
Nvent Hoffman ABBSV Operator Adapter Universal Cutout, ABB VD Small Handle, Gray, Steel
- MPN: ABBSV
- UPC: 783510291679
- PPN: HOF-ABBSV
- UNSPSC: 39121321
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$398.46/ EA
Description
Provides correct mounting pattern for specific disconnect model used with a Universal Disconnect Cutout. This Operator Adapter Universal Cutout, ABBSV item, supplier ABB VD Small Handle has a material of Steel colored Gray.
Features
- Used on all nVent HOFFMAN Type 4 and 12 disconnect enclosures with a universal flange cutout
- An operator adapter is required to install a disconnect in Bulletin A21, A28, A34, A35 and A4L3D HOFFMAN enclosures that have a universal cutout
- Operator adapters include an adapter plate and additional components needed to interlock the master door with the disconnect operating mechanism
- Installation instructions are included with each operator adapter
- Each brand and type of disconnect requires a different operator adapter
- A 400A (or greater) disconnect switch and 600A (or greater) circuit breaker require the large handle
- A 200A (or less) disconnect switch and 400A (or less) circuit breaker require a small handle
Specifications
Specifications
- BABA
- Contact Manufacturer
- Width (W)
- 61
- Finish
- Powder Coated
- Color Code
- ANSI 61
- Brand and Type of Operator
- ABB Variable-Depth
- Weight
- 2.1
- Material
- Steel
Height (H)268
Depth (D)16
ColorGray
Thickness (T)2.66
Accessory TypeMounting Accessories
Works WithNEMA
Consist ofOperator Adapter
