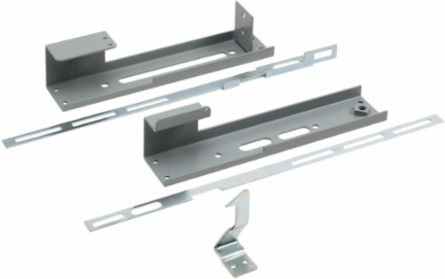

nVent Hoffman ABL Operator Adapter Universal Cutout, ABB ABL Large Handle, Gray, Steel
- MPN: ABL
- UPC: 783510280888
- PPN: HOF-ABL
- UNSPSC: 39121321
CAD
$382.31
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Provides correct mounting pattern for specific disconnect model used with a Universal Disconnect Cutout. This Operator Adapter Universal Cutout, ABL item, supplier ABB ABL Large Handle has a material of Steel colored Gray.
Features
- Used on all nVent HOFFMAN Type 4 and 12 disconnect enclosures with a universal flange cutout
- An operator adapter is required to install a disconnect in Bulletin A21, A28, A34, A35 and A4L3D HOFFMAN enclosures that have a universal cutout
- Operator adapters include an adapter plate and additional components needed to interlock the primary door with the disconnect operating mechanism
- Installation instructions are included with each operator adapter
- Each brand and type of disconnect requires a different operator adapter
- A 400A (or greater) disconnect switch and 600A (or greater) circuit breaker require the large handle
- A 200A (or less) disconnect switch and 400A (or less) circuit breaker require a small handle
Documentation & Downloads
Specifications
Additional
- Material
- Steel
- Width
- 61
- Depth
- 16
- Weight
- 1.5
- Brand and Type of Operator
- Allen-Bradley 1494V Variable-Depth
- Accessory Type
- Mounting Accessories
- Compatible Disconnect Switch Amperage
- 400A or greater
- Compatible Enclosure Types
- Type 4, Type 12
ColorGray (ANSI 61)
Height268
Thickness2.66
FinishPowder Coated
Works WithNEMA
Consist ofOperator Adapter
Compatible Circuit Breaker Amperage600A or greater
Compatible Enclosure BulletinsA21, A28, A34, A35, A4L3D
