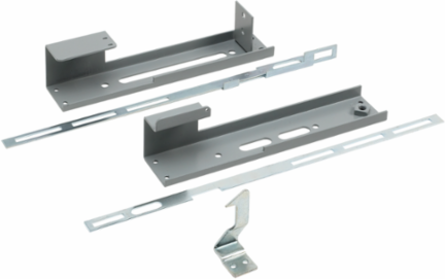

nVent Hoffman ABS Operator Adapter Universal Cutout, ABB ABS Small Handle, Gray, Steel
- MPN: ABS
- UPC: 783510280871
- PPN: HOF-ABS
- UNSPSC: 39121321
CAD
$382.31
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Provides correct mounting pattern for specific disconnect model used with a Universal Disconnect Cutout. This Operator Adapter Universal Cutout, ABS item, supplier ABB ABS Small Handle has a material of Steel colored Gray.
Features
- Used on all nVent HOFFMAN Type 4 and 12 disconnect enclosures with a universal flange cutout
- An operator adapter is required to install a disconnect in Bulletin A21, A28, A34, A35 and A4L3D HOFFMAN enclosures that have a universal cutout
- Operator adapters include an adapter plate and additional components needed to interlock the primary door with the disconnect operating mechanism
- Installation instructions are included with each operator adapter
- Each brand and type of disconnect requires a different operator adapter
- A 400A (or greater) disconnect switch and 600A (or greater) circuit breaker require the large handle
- A 200A (or less) disconnect switch and 400A (or less) circuit breaker require a small handle
Documentation & Downloads
Specifications
Additional
- Compatible Disconnect Switch Amperage
- 200A or less
- Depth
- 9
- Width
- 57
- Weight
- 1.3
- Finish
- Powder Coated
- Color Code
- ANSI 61
- Brand and Type of Operator
- Allen-Bradley 1494V Variable-Depth
- Accessory Type
- Mounting Accessories
Compatible Circuit Breaker Amperage400A or less
Height268
Thickness2.66
MaterialSteel
ColorGray
Works WithNEMA
Consist ofOperator Adapter
