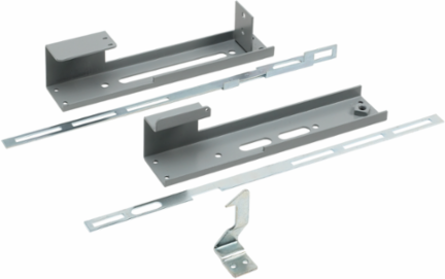

nVent Hoffman ECHC Operator Adapter Universal Cutout, Eaton Cutler Hammer Cable Oper, Gray, Steel
- MPN: ECHC
- UPC: 783510280949
- PPN: HOF-ECHC
- UNSPSC: 39121321
CAD
$382.31
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Provides correct mounting pattern for specific disconnect model used with a Universal Disconnect Cutout. This Operator Adapter Universal Cutout, ECHC item, supplier Eaton Cutler Hammer Cable Oper has a material of Steel colored Gray.
Features
- Used on all nVent HOFFMAN Type 4 and 12 disconnect enclosures with a universal flange cutout
- An operator adapter is required to install a disconnect in Bulletin A21, A28, A34, A35 and A4L3D HOFFMAN enclosures that have a universal cutout
- Operator adapters include an adapter plate and additional components needed to interlock the primary door with the disconnect operating mechanism
- Installation instructions are included with each operator adapter
- Each brand and type of disconnect requires a different operator adapter
- A 400A (or greater) disconnect switch and 600A (or greater) circuit breaker require the large handle
- A 200A (or less) disconnect switch and 400A (or less) circuit breaker require a small handle
Documentation & Downloads
Specifications
Key Specifications
- BABA
- Contact Manufacturer
- Width (W)
- 62
- Finish
- Powder Coated
- Color Code
- ANSI 61
- Brand and Type of Operator
- Eaton Cutler-Hammer C371 Flex-Shaft Cable-Operated
- Weight
- 1.4
- Material
- Steel
Height (H)268
Depth (D)13
ColorGray
Thickness (T)2.66
Accessory TypeMounting Accessories
Works WithNEMA
Consist ofOperator Adapter
