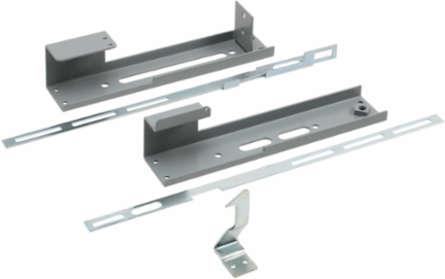

nVent Hoffman ABF Operator Adapter Universal Cutout, ABB Fixed FD Small Handle, Gray, Steel
- MPN: ABF
- UPC: 783510280895
- PPN: HOF-ABF
- UNSPSC: 39121321
CAD
$398.46
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Provides correct mounting pattern for specific disconnect model used with a Universal Disconnect Cutout. This Operator Adapter Universal Cutout, ABF item, supplier ABB Fixed FD Small Handle has a material of Steel colored Gray.
Features
- Used on all nVent HOFFMAN Type 4 and 12 disconnect enclosures with a universal flange cutout
- An operator adapter is required to install a disconnect in Bulletin A21, A28, A34, A35 and A4L3D HOFFMAN enclosures that have a universal cutout
- Operator adapters include an adapter plate and additional components needed to interlock the primary door with the disconnect operating mechanism
- Installation instructions are included with each operator adapter
- Each brand and type of disconnect requires a different operator adapter
- A 400A (or greater) disconnect switch and 600A (or greater) circuit breaker require the large handle
- A 200A (or less) disconnect switch and 400A (or less) circuit breaker require a small handle
Documentation & Downloads
Specifications
Additional
- Material
- Steel
- Width
- 61
- Thickness
- 2.66
- Finish
- Powder Coated
- Color Code
- ANSI 61
- Consist of
- Operator Adapter
- Cutout Type
- Universal
- Operator Type
- Fixed Depth
Height268
Depth9
Weight1.5
ColorGray
Accessory TypeMounting Accessories
Brand and Type of OperatorAllen-Bradley 1494F & 1494D Fixed-Depth Mechanisms
Handle SizeSmall
