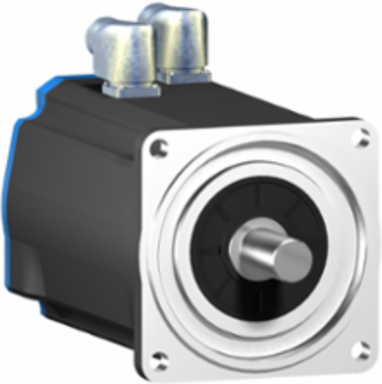

Schneider Electric BSH1404P12A2P AC Servo Motor Lexium 32 32.1 N.m 3000 RPM Keyed Shaft IP50
Schneider Electric BSH1404P12A2P AC Servo Motor Lexium 32 32.1 N.m 3000 RPM Keyed Shaft IP50
- MPN: BSH1404P12A2P
- PPN: SCH-BSH1404P12A2P
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$4576.42/ EA
Description
This AC servo motor from Schneider Electric features a robust design tailored for high-performance applications in automation and control. With a formidable torque of 32.1 N.m and a maximum speed of 3000 RPM, it is engineered to deliver precise motion control essential for demanding tasks. The Keyed Shaft design ensures secure mounting and alignment, enhancing operational reliability. Additionally, with an IP50 rating, this motor is suitable for environments where dust protection is necessary, making it a versatile choice for various motion control requirements.
Specifications
- Maximum Mechanical Speed
- 4000 rpm
- Peak Stall Torque
- 103.6 N.m
- Nominal Torque
- 19 N.m, 10.8 N.m
- Maximum Radial Force
- 1840 N, 2110 N, 2660 N
- Continuous Stall Current
- 21.3 A
- Torque Constant
- 1.57 N.m/A 120 °C
- Stator Resistance
- 0.28 Ohm 20 °C
- Stator Electrical Time Constant
- 13.93 ms 20 °C
- Supply Voltage
- 480 V
- Length
- 15.06 in (382.5 mm)
- Shaft Length
- 1.97 in (50 mm)
- Motor Flange Size
- 5.51 in (140 mm)
- Centering Collar Depth
- 0.14 in (3.5 mm)
- Circle Diameter of Mounting Holes
- 6.50 in (165 mm)
- Number of Motor Poles
- 10
- Shaft Type
- Keyed
- Electrical Connection
- rotatable right-angled connectors
- Holding Brake
- without
- Product Type
- servo motor
- Speed Feedback Resolution
- 131072 points/turn x 4096 turns
- Sustainable Offer Status
- Green Premium product
- RoHS Compliant
- Yes
- PVC Free
- Yes
Continuous Stall Torque33.4 N.m
Nominal Output Power5000 W, 3400 W
Nominal Speed2500 rpm, 3000 rpm
Maximum Axial Force0.2 x Radial force
Maximum Current Irms72 A, 95.6 A
Back EMF Constant104 V/krpm 120 °C
Stator Inductance3.9 mH 20 °C
Switching Frequency8 kHz
PhaseThree phase
Shaft Diameter0.94 in (24 mm)
Key Width1.57 in (40 mm)
Centering Collar Diameter5.12 in (130 mm)
Mounting Holes Diameter0.43 in (11 mm)
Number of Motor Stacks4
Number of Mounting Holes4
Mounting Supportinternational standard flange
Cooling TypeNatural convection
Net Weight57.32 lb (26 kg)
Feedback TypeMultiturn SinCos Hiperface
Second Shaftwithout second shaft end
ComplianceGreen Premium
Mercury FreeYes
Warranty18 months
