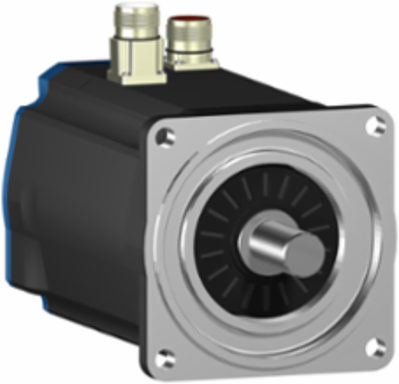

Schneider Electric BSH1404P12F1P AC servo motor BSH, Lexium 32, 32.1N.m, 3000rpm, keyed shaft, with brake, IP50

AC servo motor BSH, Lexium 32, 32.1N.m, 3000rpm, keyed shaft, with brake, IP50
  • MPN: BSH1404P12F1P
  • PPN: SCH-BSH1404P12F1P

Spec sheet

Loading compare button...

Available to Order

Company Stock:

0

Lead times may vary. For an accurate estimate please contact us.

Loading dialog...

Looking to buy a large quantity?

To view product inventory

Description

AC servo motor BSH, Lexium 32, 32.1N.m, 3000rpm, keyed shaft, with brake, IP50

Specifications

Offer Sustainability

Rohs Exemption Information
Yes
Environmental Disclosure
ENVPEP111049EN
Pvc Free
Yes
Weee
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Circularity Profile
N/A
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Reach RegulationReference contains Substances of Very High Concern above the threshold
China Rohs RegulationX
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)

Complementary

Circle Diameter Of The Mounting Holes
165 mm
Continuous Power
4.33 W
Stator Electrical Time Constant
13.93 ms 20 °C
Maximum Radial Force Fr
1840 N 3000 rpm || 2110 N 2000 rpm || 2660 N 1000 rpm
Rotor Inertia
29.2 kg.cm²
Back Emf Constant
104 V/krpm 120 °C
Centring Collar Depth
3.5 mm
Shaft Length
50 mm
Network Number Of Phases
three phase
Maximum Current Irms
72 A LXM32.D72N4 || 95.6 A LXM05AD57N4 || 95.6 A LXM05BD57N4 || 95.6 A LXM05CD57N4
Centring Collar Diameter
130 mm
Motor Flange Size
140 mm
Number Of Mounting Holes
4
Key Width
40 mm
Type Of Cooling
natural convection
Stator Resistance
0.28 Ohm 20 °C
Continuous Stall Current
21.3 A
Maximum Permanent Current95.6 A
Switching Frequency8 kHz
Holding Torque36 N.m holding brake
Number Of Motor Stacks4
Number Of Motor Poles10
Maximum Axial Force Fa0.2 x Fr
Second Shaftwithout second shaft end
Brake Pull-In Power26 W
Length420.5 mm
Net Weight27.8 kg
Stator Inductance3.9 mH 20 °C
[Us] Rated Supply Voltage480 V
Shaft Diameter24 mm
Mounting Holes Diameter11 mm
Feedback Typemultiturn SinCos Hiperface
Range CompatibilityLexium 32 || Lexium 05
Torque Constant1.57 N.m/A 120 °C

Contractual warranty

Warranty
18 months

Specifications

Maximum Mechanical Speed
4000 rpm
Holding Brake
with
Product Or Component Type
servo motor
Peak Stall Torque
103.6 N.m LXM32.D72N4 24 A, 400 V, three phase || 103.6 N.m LXM32.D72N4 24 A, 480 V, three phase || 63.09 N.m LXM05AD57N4, 380...480 V, three phase || 63.09 N.m LXM05BD57N4, 380...480 V, three phase || 63.09 N.m LXM05CD57N4, 380...480 V, three phase
Ip Degree Of Protection
IP50 standard
Nominal Speed
2500 rpm LXM32.D72N4 24 A, 400 V, three phase || 2500 rpm LXM32.D72N4 24 A, 480 V, three phase || 3000 rpm LXM05AD57N4, 380...480 V, three phase || 3000 rpm LXM05BD57N4, 380...480 V, three phase || 3000 rpm LXM05CD57N4, 380...480 V, three phase
Nominal Torque
19 N.m LXM32.D72N4 24 A, 400 V, three phase || 19 N.m LXM32.D72N4 24 A, 480 V, three phase || 10.8 N.m LXM05AD57N4, 380...480 V, three phase || 10.8 N.m LXM05BD57N4, 380...480 V, three phase || 10.8 N.m LXM05CD57N4, 380...480 V, three phase
Continuous Stall Torque
33.4 N.m LXM32.D72N4 24 A, 400 V, three phase || 33.4 N.m LXM32.D72N4 24 A, 480 V, three phase || 32.1 N.m LXM05AD57N4, 380...480 V, three phase || 32.1 N.m LXM05BD57N4, 380...480 V, three phase || 32.1 N.m LXM05CD57N4, 380...480 V, three phase
Mounting Supportinternational standard flange
Speed Feedback Resolution131072 points/turn x 4096 turns
Nominal Output Power5000 W LXM32.D72N4 24 A, 400 V, three phase || 5000 W LXM32.D72N4 24 A, 480 V, three phase || 3400 W LXM05AD57N4, 380...480 V, three phase || 3400 W LXM05BD57N4, 380...480 V, three phase || 3400 W LXM05CD57N4, 380...480 V, three phase
Product CompatibilityLXM05AD57N4 380...480 V three phase || LXM05BD57N4 380...480 V three phase || LXM05CD57N4 380...480 V three phase || LXM32.D72N4 400 V three phase || LXM32.D72N4 480 V three phase
Shaft Endkeyed
Electrical Connectionstraight connectors
Device Short NameBSH
