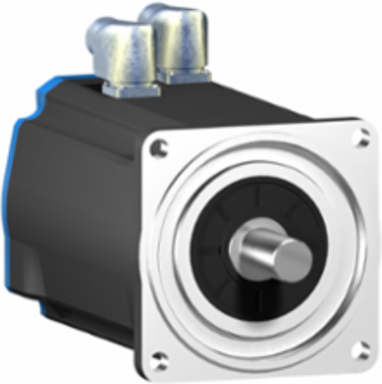

Schneider Electric BSH1401P32A2A AC Servo Motor, 11.1 N.m, 1500 RPM, Keyed Shaft, IP65
- MPN: BSH1401P32A2A
- PPN: SCH-BSH1401P32A2A
CAD
$3395.23
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Description
The Schneider Electric BSH1401P32A2A AC Servo Motor stands out in the realm of motion control with its impressive torque rating of 11.1 N.m, ensuring robust performance in various automation applications. Operating at a high speed of 1500 RPM, this servo motor is designed to deliver precision and reliability, making it an excellent choice for dynamic movement and positioning tasks. With a keyed shaft for secure mounting and an IP65 rating for protection against dust and water, it is built to perform effectively in challenging environments, enhancing the efficiency and durability of your automated systems.
Documentation & Downloads
Specifications
Additional
- Torque
- 11.1 N.m continuous stall torque, 27 N.m peak stall torque
- Nominal Output Power
- 2500 W
- Supply Voltage
- 480 V
- Switching Frequency
- 8 kHz
- Shaft Diameter
- 24 mm (0.94 in)
- Key Width
- 40 mm (1.57 in)
- Mounting Holes Diameter
- 11 mm (0.43 in)
- Number of Mounting Holes
- 4
- Product Type
- Servo motor
- Mounting Support
- International standard flange
- Centring Collar Depth
- 3.5 mm
- Type of Cooling
- Natural convection
- Feedback Type
- Multiturn SinCos Hiperface
- Stator Resistance
- 1.41 Ohm at 20 °C
- Maximum Radial Force
- 1530 N at 3000 rpm, 1760 N at 2000 rpm, 2210 N at 1000 rpm
- Environmental Compliance
- RoHS, Mercury Free, PVC Free, Green Premium
- Country of Origin
- Germany
Speed1500 rpm nominal speed, 4000 rpm maximum mechanical speed
Continuous Stall Current7.8 A
PhaseThree phase
Number of Motor Poles10
Shaft Length50 mm (1.97 in)
Motor Flange Size140 mm (5.51 in)
Circle Diameter of Mounting Holes165 mm (6.50 in)
Length217.5 mm (8.56 in)
Shaft TypeKeyed
Centring Collar Diameter130 mm
MaterialNot specified
Holding BrakeWithout
Rotor Inertia7.41 kg.cm²
Stator Inductance15.6 mH at 20 °C
Maximum Axial Force0.2 x Maximum Radial Force
IP RatingIP65 standard, IP67 with kit
