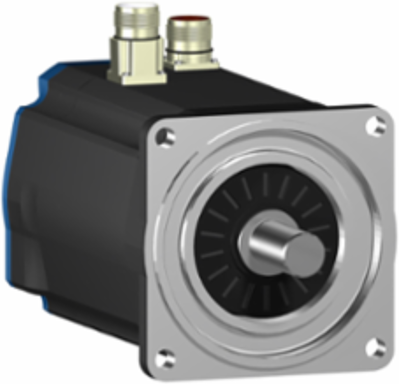

Schneider Electric BSH1401P31A1A AC Servo Motor 11.1 N.m 1500 RPM Keyed Shaft IP65
- MPN: BSH1401P31A1A
- PPN: SCH-BSH1401P31A1A
CAD
$2396.75
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Description
Schneider Electric's AC Servo Motor combines high-performance capabilities with robust design to meet the demands of automation and motion control applications. Delivering a powerful torque of 11.1 N.m at a speed of 1500 RPM, this motor ensures precise and efficient operation for various industrial uses. The inclusion of a keyed shaft enhances its adaptability, while the IP65 rating provides protection against dust and water, ensuring durability and reliability in challenging environments. This servo motor is an essential component for anyone looking to enhance the efficiency and control of their automation systems.
Documentation & Downloads
Specifications
Additional
- Nominal Torque
- 9.5 N.m
- Continuous Stall Torque
- 11.1 N.m
- Nominal Output Power
- 1400 W
- Maximum Mechanical Speed
- 4000 rpm
- Maximum Current Irms
- 20.8 A
- Phase
- three phase
- Switching Frequency
- 8 kHz
- Shaft Diameter
- 24 mm
- Key Width
- 40 mm
- Number of Mounting Holes
- 4
- Mounting Holes Circle Diameter
- 165 mm
- Centring Collar Depth
- 3.5 mm
- Shaft Type
- Keyed
- Electrical Connection
- Straight connectors
- Rotor Inertia
- 7.41 kg.cm²
- Stator Inductance
- 15.6 mH 20 °C
- Maximum Radial Force
- 1530 N at 3000 rpm
- Feedback Type
- Single turn SinCos Hiperface
- Number of Motor Stacks
- 1
- IP Degree of Protection
- IP65 standard, IP67 with IP67 kit
Torque Constant1.43 N.m/A
Peak Stall Torque27 N.m
Nominal Speed1500 rpm
Continuous Stall Current7.8 A
Voltage480 V
Speed Feedback Resolution131072 points/turn
Length217.5 mm
Shaft Length50 mm
Motor Flange Size140 mm
Mounting Holes Diameter11 mm
Centring Collar Diameter130 mm
Net Weight11.9 kg
Holding BrakeWithout
Cooling TypeNatural convection
Stator Resistance1.41 Ohm 20 °C
Stator Electrical Time Constant11.06 ms 20 °C
Maximum Axial Force0.2 x Radial Force
Number of Motor Poles10
Range CompatibilityLexium 32, Lexium 05, Lexium 15
RoHS ComplianceRoHS, Mercury free, PVC free
