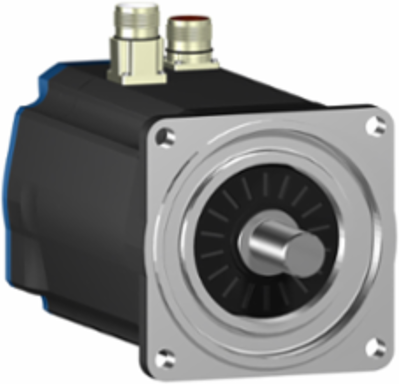

Schneider Electric BSH1401P11A1A Servo Motor 140mm Keyed Shaft 11.1N.m 1500rpm IP50
- MPN: BSH1401P11A1A
- PPN: SCH-BSH1401P11A1A
CAD
$2285.38
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Description
Designed for high-performance applications, this servo motor from Schneider Electric features a robust 140mm keyed shaft and delivers impressive torque of 11.1 N.m at speeds up to 1500 rpm. Its IP50 rating ensures protection against dust and solid objects, making it suitable for a range of industrial environments. Ideal for motion control tasks within automation systems, this motor combines reliability and precision, allowing for smooth and efficient operation in demanding applications. With its advanced engineering, it's an essential component for those looking to enhance their automation processes.
Documentation & Downloads
Specifications
Additional
- Peak Stall Torque
- 27 N.m
- Nominal Torque
- 9.5 N.m
- Maximum Mechanical Speed
- 4000 rpm
- Torque Constant
- 1.43 N.m/A
- Switching Frequency
- 8 kHz
- Maximum Axial Force
- 0.2 x Radial Force
- Shaft Diameter
- 24 mm (0.94 in)
- Motor Flange Size
- 140 mm
- Number Of Mounting Holes
- 4
- Circle Diameter Of The Mounting Holes
- 165 mm (6.50 in)
- Net Weight
- 11.9 kg
- Stator Resistance
- 1.41 Ohm at 20 °C
- Rotor Inertia
- 7.41 kg.cm²
- Feedback Type
- Single turn SinCos Hiperface
- Mercury Free
- Yes
- China RoHS Regulation
- Compliant
- Environmental Disclosure
- ENVPEP111049EN
Continuous Stall Torque11.1 N.m
Nominal Speed1500 rpm
Nominal Output Power2200 W
Back EMF Constant100 V/krpm
Maximum Radial Force1530 N at 3000 rpm
Length217.5 mm (8.56 in)
Shaft Length50 mm (1.97 in)
Number Of Motor Poles10
Mounting Holes Diameter11 mm (0.43 in)
Shaft EndKeyed
Type Of CoolingNatural convection
Stator Inductance15.6 mH at 20 °C
IP Degree Of ProtectionIP50
Electrical ConnectionStraight connectors
RoHS CompliancePro-active compliance (Product out of EU RoHS legal scope)
PVC FreeYes
