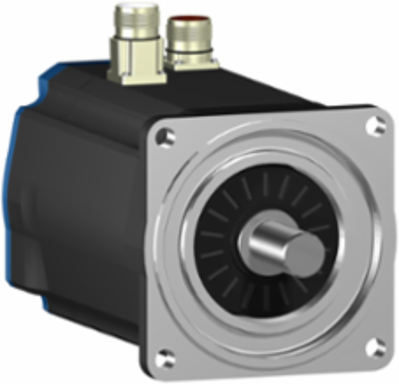

Schneider Electric BSH1404P31A1P AC Servo Motor, 32.1 N.m, 3000 RPM, Keyed Shaft, IP65
- MPN: BSH1404P31A1P
- PPN: SCH-BSH1404P31A1P
CAD
$3828.32
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Description
This AC servo motor from Schneider Electric is engineered for high-performance applications, providing a robust torque of 32.1 N.m and impressive speeds of up to 3000 RPM. The keyed shaft design ensures secure connections in various motion control setups, facilitating reliable operation in demanding environments. With its IP65 rating, this motor is well-protected against dust and water ingress, making it an ideal choice for automation and control applications in industrial conditions where durability and precision are paramount.
Documentation & Downloads
Specifications
Additional
- Peak Stall Torque
- 103.6 N.m, 63.09 N.m
- Nominal Torque
- 19 N.m, 10.8 N.m
- Continuous Power
- 4.33 W
- Maximum Mechanical Speed
- 4000 rpm
- Supply Voltage
- 480 V
- Torque Constant
- 1.57 N.m/A
- Stator Resistance
- 0.28 Ohm 20 °C
- Stator Electrical Time Constant
- 13.93 ms 20 °C
- Maximum Radial Force
- 1840 N at 3000 rpm, 2110 N at 2000 rpm, 2660 N at 1000 rpm
- Length
- 382.5 mm (15.06 in)
- Shaft Length
- 50 mm (1.97 in)
- Centring Collar Diameter
- 130 mm (5.12 in)
- Number of Mounting Holes
- 4
- Circle Diameter of Mounting Holes
- 165 mm (6.50 in)
- Net Weight
- 26 kg (57.32 lb)
- Feedback Type
- Single turn SinCos Hiperface
- Number of Motor Stacks
- 4
- IP Degree of Protection
- IP65 standard, IP67 with IP67 kit
- Eu Rohs Directive
- Pro-active compliance (Out of EU RoHS legal scope)
- REACH Compliance
- Contains SVHC above threshold
- Range Compatibility
- Lexium 32, Lexium 05
- Device Short Name
- BSH
- Electrical Connection
- Straight connectors
Continuous Stall Torque33.4 N.m, 32.1 N.m
Nominal Output Power5000 W, 3400 W
Maximum Current Irms72 A, 95.6 A
Nominal Speed3000 rpm, 2500 rpm
Phasethree phase
Back Emf Constant104 V/krpm 120 °C
Stator Inductance3.9 mH 20 °C
Switching Frequency8 kHz
Maximum Axial Force0.2 x Radial Force
Shaft Diameter24 mm (0.94 in)
Key Width40 mm (1.57 in)
Centring Collar Depth3.5 mm (0.14 in)
Mounting Holes Diameter11 mm (0.43 in)
Motor Flange Size140 mm (5.51 in)
Shaft EndKeyed
Type of CoolingNatural convection
Number of Motor Poles10
Mercury FreeYes
RoHS ComplianceRoHS compliant
PVC FreeYes
Product TypeServo motor
Mounting SupportInternational standard flange
Warranty18 months
