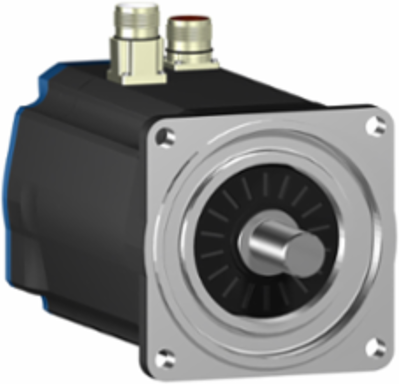

Schneider Electric BSH1404P11A1P Servo Motor Lexium 32, 32.1N.m, 3000rpm, 140mm Flange
- MPN: BSH1404P11A1P
- PPN: SCH-BSH1404P11A1P
CAD
$3715.06
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Description
Engineered for precision and reliability, the Schneider Electric BSH1404P11A1P Servo Motor Lexium 32 is a robust solution for various automation and motion control applications. With an impressive torque of 32.1 N.m and a maximum speed of 3000 rpm, this motor offers the necessary power and responsiveness for demanding tasks. Its 140mm flange size ensures compatibility with a wide range of systems, making it an adaptable choice for engineers and technicians looking to enhance their projects with dependable motion control solutions. This servo motor embodies the advanced technology and quality craftsmanship that Schneider Electric is known for, ensuring optimal performance in your automation endeavors.
Documentation & Downloads
Specifications
Additional
- Peak Stall Torque
- 63.09-103.6 N.m
- Nominal Output Power
- 3400-5000 W
- Continuous Stall Current
- 21.3 A
- Torque Constant
- 1.57 N.m/A 120 C
- Maximum Speed
- 4000 rpm
- Voltage
- Up to 480 V
- Stator Resistance
- 0.28 Ohm 20 C
- Stator Electrical Time Constant
- 13.93 ms 20 C
- Number of Motor Poles
- 10
- Weight
- 26 kg
- Mounting Holes Diameter
- 11 mm
- Number of Mounting Holes
- 4
- Shaft Length
- 50 mm
- Shaft End
- Keyed
- Type of Cooling
- Natural convection
- Speed Feedback Resolution
- 131072 points/turn
- Centring Collar Depth
- 3.5 mm
- Maximum Radial Force Fr
- 1840 N 3000 rpm, 2110 N 2000 rpm, 2660 N 1000 rpm
- Number of Motor Stacks
- 4
- Device Short Name
- BSH
- Range Compatibility
- Lexium 32, Lexium 05
- Environmental Disclosure
- ENVPEP111049EN
- Rohs Exemption Information
- Yes
- China Rohs Regulation
- X
- Pvc Free
- Yes
- IP Degree of Protection
- IP50 standard
- Warranty
- 18 months
Continuous Stall Torque32.1-33.4 N.m
Maximum Current Irms72-95.6 A
Torque32.1 N.m
Back EMF Constant104 V/krpm 120 C
Nominal Speed2500-3000 rpm
PhaseThree phase
Stator Inductance3.9 mH 20 C
Rotor Inertia23.7 kg.cmB2
Length382.5 mm
Flange Size140 mm
Circle Diameter of Mounting Holes165 mm
Shaft Diameter24 mm
Key Width40 mm
Mounting Supportinternational standard flange
Electrical ConnectionStraight connectors
Holding BrakeWithout
Centring Collar Diameter130 mm
Maximum Axial Force Fa0.2 x Fr
Feedback TypeSingle turn SinCos Hiperface
Product Or Component TypeServo motor
Product CompatibilityLXM05AD57N4 380-480 V three phase, LXM05BD57N4 380-480 V three phase, LXM05CD57N4 380-480 V three phase, LXM32.D72N4 400 V three phase, LXM32.D72N4 480 V three phase
ComplianceGreen Premium, RoHS, Mercury free, PVC free, Prop 65 Compliant (trimmed)
Eu Rohs DirectivePro-active compliance (out of EU RoHS legal scope)
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Country of OriginDE
