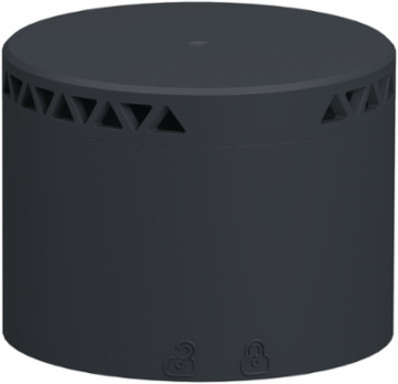

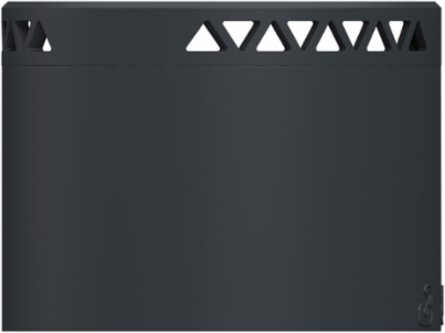

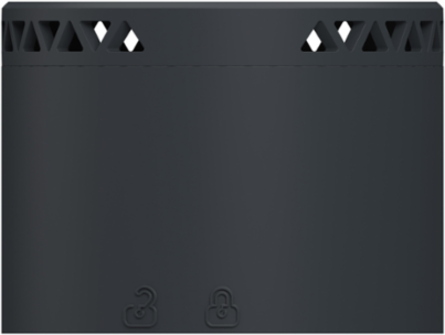

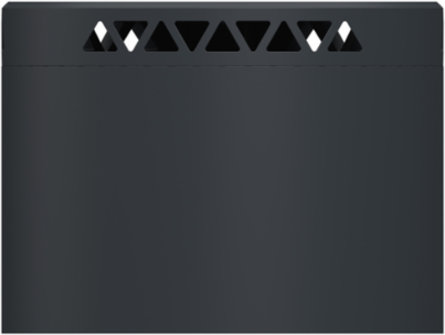

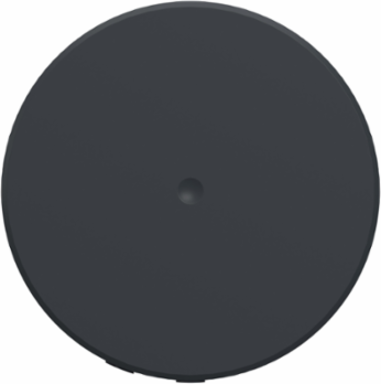

Schneider Electric XVB7C9S Sound Module, Harmony XVB7 Modular Tower Light, Ø70mm, 2 Tones, Grey
- MPN: XVB7C9S
- PPN: SCH-XVB7C9S
CAD
$114.09
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Sound Module, Harmony XVB7 Modular Tower Light, Ø70mm, 2 Tones, Grey
Features
- Emitting a piercing 360-degree acoustic alarm, this two-tone buzzer ensures critical machine statuses and faults are instantly communicated across high-decibel manufacturing environments. By easily adjusting the sound level directly on the unit via a built-in DIP switch, maintenance teams can overcome localized ambient noise without overwhelming operators in quieter zones, dramatically reducing response times to equipment errors.
- Featuring two distinct, switch-selectable signaling patterns, this audible module allows control engineers to assign specific sound profiles to different operational states. This completely eliminates frustrating shop-floor confusion, ensuring your technicians instantly know whether a machine is simply requesting routine material replenishment or experiencing an emergency fault that requires immediate intervention.
- Engineered with a rugged, impact-resistant dark grey housing, this sound module delivers an elite IP66 degree of protection against heavy dust, persistent vibrations, and powerful water jets. This makes it exceptionally reliable for continuous operation in harsh industrial automation settings, including food processing and packaging, eliminating the costly downtime and frequent replacement cycles associated with standard, unprotected tower lights.
- Designed for seamless snap-together assembly within the Schneider Electric Harmony XVB7 70mm ecosystem, this audible unit quickly connects to your choice of base units and visual LED modules without complex, time-consuming wiring. This modular construction significantly cuts down panel building and installation time while reducing inventory footprints, making rapid retrofits and custom machinery alarm configurations completely hassle-free.
- Operating on a standard 24-volt control power supply, this buzzer seamlessly interfaces directly with standard PLC outputs and modern machine control circuits. Fully UL Listed, CSA certified, and CE marked, this factory-tested signaling device guarantees your commercial machinery passes rigorous local and international safety inspections, ensuring highly reliable, liability-free deployment anywhere in the world.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Brazil, Germany, France, Indonesia, Philippines, United States
Physical Attributes
- Housing Color
- dark grey
Complementary Attributes
- Rated Operational Voltage Limits
- 21.6...26.4 V AC/DC
Important Information Attributes
- Control Type
- DIP switch for tone/loudness, DIP switch for tone/loudness
- Signalling Type
- 2 tones, continuous or intermittent buzzer, 2 tones
- Carbon Footprint Of The Distribution Phase [A4]
- 0.028004035859730218, 0 kg CO2 eq.
- Carbon Footprint Of The Installation Phase [A5]
- 0.00044593908514641185, 0 kg CO2 eq.
- Carbon Footprint Of The Use Phase [B2 B3 B4 B6]
- 6 kg CO2 eq., 5.604368153508221
- Local Publishable Date
- 2026-03-26
- Pre Comm Date
- 2025-02-06
- Stocking Flag
- N
- Weee Applicability
- Finished product
- Weee Product Category
- 5
- Eoli Availability Display
- Yes
- Reach Full Compliance Status
- Reference contains Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Reference contains Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant By Exemption
- Rohs Eur Full Compliance Status
- Compliant By Exemption
- China Rohs Label
- 5
- Without Single Use Plastic
- No
- Product Kit Identifier
- N
- Device Short Name
- XVB7
- Inrush Current
- 1 A

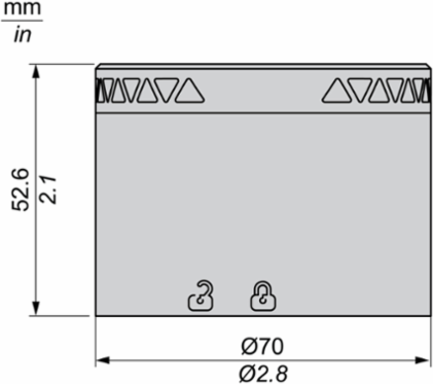

- Mounting Diameter
- 70 mm
- Noise Level
- 88-102 dB 1 m
- Product Or Component Type
- sound module
- Range Of Product
- Harmony XVB7
- Shock Resistance
- 30 gn 6 ms) in operation
- Sustainable Packaging
- No
- Vibration Resistance
- 6 gn +/- 0.5 mm 10-500 Hz)in operation
- Housing Color
- dark grey
- Database Version
- 2024-01
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
- Functional-unit Description
- The major function of the Harmony XVB7 range of products is to offer optical or audio signalling to operators, technicians, supervisors and other people who are engaged in the work specifically to identify the various states or sequences of a machine or installation from a distance through 360° in life span of 10 years.This product will be active for 73% of the time with a power consumption of 8.4W and adhering to standards IEC 60947-5-1.
- Functional-unit Unit
- unit
- Energy Consumption On Product Lifetime In Kwh
- 11.5632
- Energy Model - Installation [A5]
- No energy used
- Energy Model - End Of Life [C1-c4]
- Global, European and French datasets are used.
- [Ue] Rated Operational Voltage
- 24 V AC/DC
- [Uimp] Rated Impulse Withstand Voltage
- 0.5 kV
- Package Weight(Lbs)
- 80.000 g
- Warranty (In Months)
- 18
Device Composition2 tone buzzer, 2 tone buzzer
Certificate AgencycULus, CCC, RCM, UKCA, CE
Carbon Footprint Of The End-of-life Phase [C1 To C4]0.1 kg CO2 eq., 0.07999278019935556
Carbon Footprint Of The Manufacturing Phase [A1 To A3]1 kg CO2 eq., 0.9657673178916506
Local Data StatusPublishable
Pre Comm Announcement Date2025-02-06
Return IndicatorY
Stock Policy2
Weee ScopeIn
Scope PerimeterAt least in Europe
End Of Life Doc RefENVEOLI2501029EN
Reach Full Compliance Status IdCONTAINS_SVHC
Rohs Eur In ScopeYes
Rohs Eur Conformity Date2447
China Rohs In ScopeYes
With Recycled CardboardNo
Product Contributes To Saved And Avoided EmissionsNo
Current Consumption33 mA 24 V AC22 mA 24 V DC
Electrical Shock Protection Classclass II
Materialpolycarbonate
Mounting Positionupright/inverted
Product AvailabilityStock - Normally stocked in distribution facility
Pulse Frequency1 Hz
ReturnabilityYes
Software Versionv6.2.4
Total Lifecycle Carbon Footprint7 kg CO2 eq.
Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Pep CodeENVPEP2501029EN
Pep Verification Date2025-06-28
Psr VersionPSR-0005-ed3-2023 06 06
Data Sourceextrapolated product
Functional-unit Quantity1
Reference Lifetime In Y10
Energy Model - Manufacturing [A1-a3]Electricity Mix; High voltage; 2020; Germany, DE
Energy Model - Use [B6]Electricity Mix; Low voltage; 2020; Global, GLO
Recyclability Potential In %87
[Ui] Rated Insulation Voltage50 V
Nbr. Of Units In Pkg.1
Take-backNo
Customs Code8531809041
Environment Attributes Main
- Ambient Air Temperature For Operation
- -25-60 °C, -25-60 °C
- Take Back
- No
- China Rohs Regulation
- X
- Carbon Footprint
- 6.678578226544104
- Environmental Disclosure
- ENVPEP2501029EN
- Ip Degree Of Protection
- IP66
- Packaging Made With Recycled Cardboard
- No
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Pep Verification Date
- 2025-06-28
- Psr Version
- PSR-0005-ed3-2023 06 06
Ambient Air Temperature For Storage-40-70 °C, -40-70 °C
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Circularity ProfileENVEOLI2501029EN
Eu Rohs DirectiveCompliant By Exemption
Nema Degree Of ProtectionUL type 4X/13
Packaging Without Single Use PlasticNo
Pep CodeENVPEP2501029EN
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
General Attributes
- Product Or Component Type
- sound module
Range Of ProductHarmony XVB7
ETIM
- ETIM 8
- EC001261
ETIM 9EC001261
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
