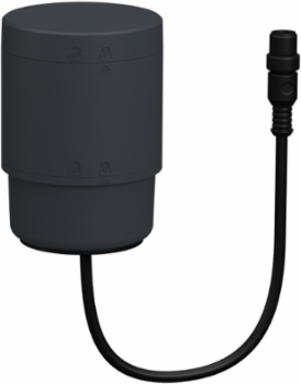

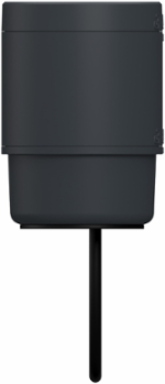

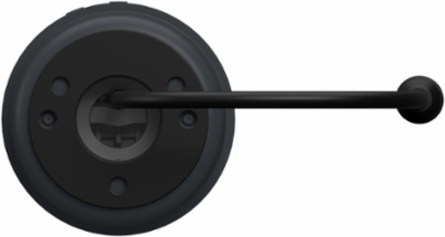

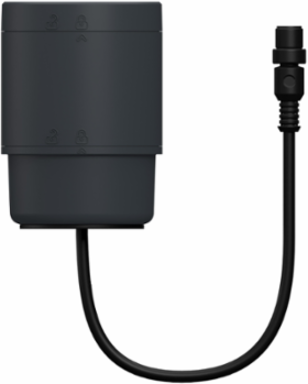

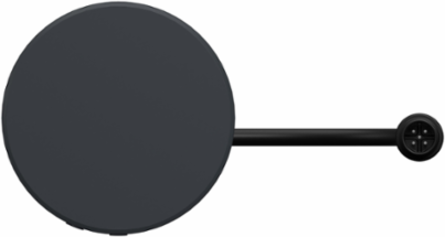

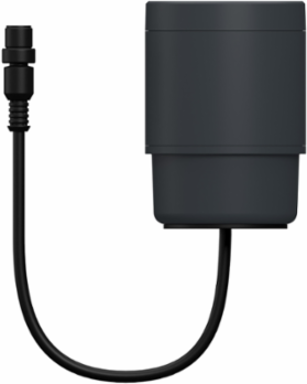

Schneider Electric XVB7C31 Base Module, Harmony XVB7 Modular Tower Light, Ø70mm, IO Link Base With Adapter And Cover, Grey
- MPN: XVB7C31
- PPN: SCH-XVB7C31
CAD
$268.94
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Base Module, Harmony XVB7 Modular Tower Light, Ø70mm, IO Link Base With Adapter And Cover, Grey
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Brazil, Germany, France, Indonesia, Philippines, United States
Communications & Management Attributes
- Communication Port Protocol
- IO Link v1.1
Physical Attributes
- Housing Color
- dark grey, dark grey
Complementary Attributes
- Rated Operational Voltage Limits
- 21.6...26.4 V DC
Important Information Attributes
- Housing Color
- dark grey, dark grey
- Carbon Footprint Of The Distribution Phase [A4]
- 0.071028418226043, 0.1 kg CO2 eq.
- Carbon Footprint Of The Installation Phase [A5]
- 0.001088703381616515, 0 kg CO2 eq.
- Carbon Footprint Of The Use Phase [B2, B3, B4, B6]
- 0 kg CO2 eq., 0
- Local Publishable Date
- 2026-03-26
- Pre Comm Date
- 2025-02-06
- Stocking Flag
- N
- Weee Applicability
- Finished product
- Weee Product Category
- 5
- Eoli Availability Display
- Yes
- Reach Full Compliance Status
- Reference contains Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Reference contains Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant By Exemption
- Rohs Eur Full Compliance Status
- Compliant By Exemption
- China Rohs Label
- 3
- Without Single Use Plastic
- Yes
- Product Kit Identifier
- N
- Current Consumption
- 6 mA
- Device Short Name
- XVB7
- Electrical Shock Protection Class
- class II
- Material
- polycarbonate
- Mounting Position
- upright/inverted
- Product Or Component Type
- base module
- Returnability
- Yes
- Software Version
- v6.2.4
- Total Lifecycle Carbon Footprint
- 2 kg CO2 eq.
- Vibration Resistance
- 6 gn +/- 0.5 mm 10-500 Hz)in operation

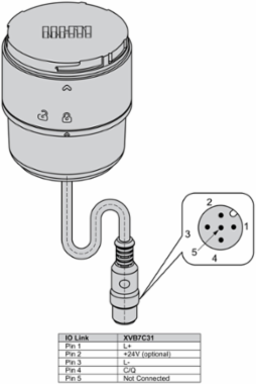

- Connections Terminals 8 Connections Terminals
- M12, 5 Pol Male, A-Coded port
- Database Version
- 2024-01
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
- Functional-unit Description

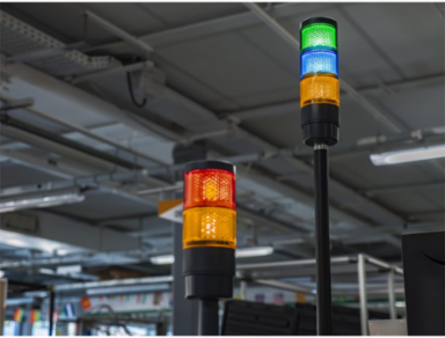

- This product is a highly customizable visual and audible signal indicator that can be precisely controlled through an IO-Link which is typically mounted on a tower used to alert people of a specific status or condition from a distance often by flashing a bright light and can indicate things like machine operation, warnings, hazards particularly in industrial applications with highly visible warning or status indicator with 360-degree visibility in life span of 10 years.This product will be active for 73% of the time with a power consumption of 3.168W and adhering to standards IEC 60947-5-1.
- Functional-unit Unit
- unit
- Energy Model - Manufacturing [A1-a3]
- Electricity Mix; High voltage; 2020; Germany, DE
- Energy Model - Use [B6]
- Electricity Mix; Low voltage; 2020; Global, GLO
- Recyclability Potential, In %
- 89
- [Ui] Rated Insulation Voltage
- 50 V
- Connections - Terminals
- M12, 5 Pol Male, A-Coded port
- Package Weight(Lbs)
- 204.000 g
- Warranty (In Months)
- 18
Certificate AgencycULus, CCC, RCM, UKCA, CE
Carbon Footprint Of The End-of-life Phase [C1 To C4]0.2 kg CO2 eq., 0.1946979303226761
Carbon Footprint Of The Manufacturing Phase [A1 To A3]2 kg CO2 eq., 2.134916763508013
Local Data StatusPublishable
Pre Comm Announcement Date2025-02-06
Return IndicatorY
Stock Policy2
Weee ScopeIn
Scope PerimeterAt least in Europe
End Of Life Doc RefENVEOLI2501028EN
Reach Full Compliance Status IdCONTAINS_SVHC
Rohs Eur In ScopeYes
Rohs Eur Conformity Date2445
China Rohs In ScopeYes
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Assembly StyleUp to 5 Modules (4 lens + 1 sound or 5 lens)
Device CompositionBase direct/tube & cover
Electrical ConnectionIO Link
Fixing Modedirect or tube fixing
Mounting Diameter70 mm
Product AvailabilityStock - Normally stocked in distribution facility
Range Of ProductHarmony XVB7
Shock Resistance30 gn 6 ms) in operation
Sustainable PackagingNo
Type Of CableM12 cable 15cm
Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Pep CodeENVPEP2501028EN
Pep Verification Date2025-04-03
Psr VersionPSR-0005-ed3-2023 06 06
Data Sourceextrapolated product
Functional-unit Quantity1
Reference Lifetime, In Y10
Energy Model - Installation [A5]No energy used
Energy Model - End Of Life [C1-c4]Global, European and French datasets are used.
[Ue] Rated Operational Voltage24 V DC
[Uimp] Rated Impulse Withstand Voltage0.5 kV
Nbr. Of Units In Pkg.1
Take-backNo
Environment Attributes Main
- Ambient Air Temperature For Operation
- -25-60 °C, -25-60 °C
- Take Back
- No
- China Rohs Regulation
- X
- Carbon Footprint
- 2.4017318154383487
- Environmental Disclosure
- ENVPEP2501028EN
- Ip Degree Of Protection
- IP66
- Packaging Made With Recycled Cardboard
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Pep Verification Date
- 2025-04-03
- Psr Version
- PSR-0005-ed3-2023 06 06
Ambient Air Temperature For Storage-40-70 °C, -40-70 °C
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Circularity ProfileENVEOLI2501028EN
Eu Rohs DirectiveCompliant By Exemption
Nema Degree Of ProtectionType 4/4X/12/13 indoor use only
Packaging Without Single Use PlasticYes
Pep CodeENVPEP2501028EN
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
General Attributes
- Product Or Component Type
- base module
Range Of ProductHarmony XVB7
ETIM
- ETIM 8
- EC001152
ETIM 9EC001152
Output Attributes
- Output Current
- 500 mA max per channel, 1600 mA max all channels
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
