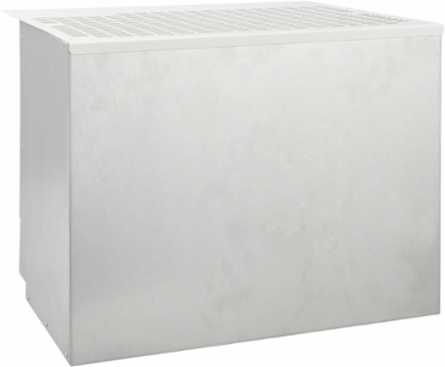

Square D PCSPWMKIT60A AccuSine PCS+ Wall Mounting Conversion Kit for 60A-120A, Height 1530mm, Weight 8.7kg
Square D PCSPWMKIT60A AccuSine PCS+ Wall Mounting Conversion Kit for 60A-120A, Height 1530mm, Weight 8.7kg
- MPN: PCSPWMKIT60A
- PPN: SCH-PCSPWMKIT60A
- UNSPSC: 39121032
Spec sheet
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$1028.54/ EA
Description
This kit ensure the possibility to mount an AccuSIne PCS+ or PFV+ enclosure on a wall. Can be used to convert an Ingress Protection IP00 (UP type open) rated encloure to IP20 (UL Type 1) enclosure. Includes HMI mounting plate and cable entry enclosure for mounting on the bottom of the IP00 assemblies. The kit is to be associated with a 60A unit rating. The final assembled dimensions will be 1530mm in height, 421mm in width and 349mm in depth. For a total weight, kit plus IP00 enlosure, of 8.7kg.
Features
- This kit is available as an option for converting IP00 chassis to wall mounted enclosure
- Preparation is needed to install HMI
- Screws provided for both kit and HMI
- Cover included to replace the access cover
Specifications
Environment Attributes Main
- Take Back
- No, Nej
- ROHS Exemption Information
- Yes
- China ROHS Regulation
- X
- Packaging Made With Recycled Cardboard
- No
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
EU ROHS DirectiveCompliant By Exemption , Compliant with Exemptions
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Packaging Without Single Use PlasticNo
Important Information Attributes
- Local Data Status
- Publishable
- Serviceability
- No
- Reach Full Compliance Status
- Reference contains Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Reference contains Substances of Very High Concern above the threshold
- ROHS EUR Status
- Compliant with Exemptions
- ROHS EUR Full Compliance Status Id
- COMPLIANT_WITH_EXEMPTIONS
- With Recycled Cardboard
- No
- Product Contributes To Saved And Avoided Emissions
- No
- Device Composition
- mounting support
- Mounting Location
- enclosure
- Package Weight Lbs
- 9.0 kg
- Product Or Component Type
- wall-mounting kit
- Returnability
- No
- Accessory Separate Part Category2
- installation accessory
- Stocking Flag
- Y
- Global Commercial Status
- Commercialised
Local Publishable Date2025-07-10
Scope PerimeterAt least in Europe
Reach Full Compliance Status IdCONTAINS_SVHC
ROHS EUR In ScopeYes
ROHS EUR Full Compliance StatusCompliant with Exemptions
China ROHS In ScopeYes
Without Single Use PlasticNo
Return IndicatorN
Energy Efficiency OptimizedFalse
Offer Typespare part
Product AvailabilityNon-Stock - Not normally stocked in distribution facility
RangeAccuSine
Sustainable PackagingNo
Medium DescAccuSine PCS+ wall mounting conversion kit for 60 A to 120 A
Product Kit IdentifierN
General Attributes
- Product Or Component Type
- wall-mounting kit
Output Attributes
- Nominal Output Current
- 235 A, 300 A
