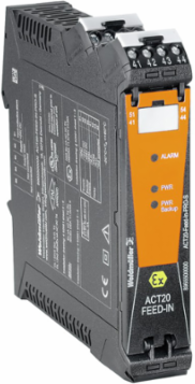

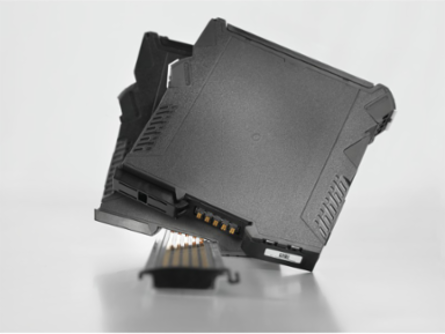

Weidmuller 8965500000 ACT20 Feed-In Power Supply Module, 24V DC Output, 4A Max Current, Screw Connection
- MPN: 8965500000
- PPN: WDM-8965500000
CAD
$309.97
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
ACT20M, Supply module, Screw connection
Documentation & Downloads
Specifications
General Data
- Degree of efficiency
- 0,976
- Rail
- TS 35, CH20M Bus
Power consumption< 2 W
Voltage supply21.6...26.4 V DC
Approvals
- Approvals
- CULUS, DEKRAATEX, DETNORVER, EAC, FMEX, IECEXDEK
- UL File Number Search
- E337701
ROHSConform

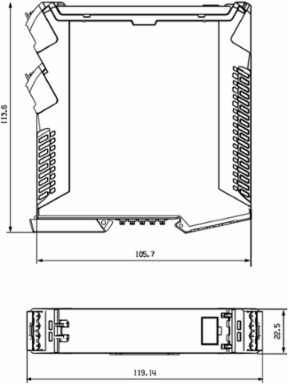

Dimensions And Weights
- Width
- 22.5 mm
- Height
- 117.2 mm
- Depth
- 113.6 mm
- Weight
- 140 g
Width (inches)0.886 inch
Height (inches)4.614 inch
Depth (inches)4.472 inch
Net weight173 g
Connection Data
- Type of connection
- Screw connection
- Tightening torque, max.
- 0.6 Nm
- Clamping range, min.
- 0.5 mm²
- Wire connection cross section AWG, min.
- AWG 30
Tightening torque, min.0.4 Nm
Clamping range, rated connection2.5 mm²
Clamping range, max.2.5 mm²
Wire connection cross section AWG, max.AWG 14
Rated Data Ul
- UL certificate
- E337701.pdf
Input
- Number of inputs
- 2
- Supply voltage (input)
- 21.6...26.4 V DC
- Backup power supply
- 21.6...26.4 V DC
Input voltage21.6…26.4 V DC
Input currentmax. 4 A
Trigger level for the power supplyFault < 21 V DC
Classifications
- ETIM 6.0
- EC001600
- eClass 9.0
- 27-24-26-10
- eClass 10.0
- 27-24-26-10
ETIM 7.0EC001600
eClass 9.127-24-26-10
UNSPSC30-21-18-01
Output
- Number of outputs
- 1
- Output current
- max. 4 A, (Supply of e.g. 110 devices of ACT20M-CI-2CO-S on one CH20M BUS)
- Supply voltage (output)
- 24 V DC
Output voltage, noteInput voltage -0.5 V DC / 4 A
Output power96 W
Product Information
- Product information

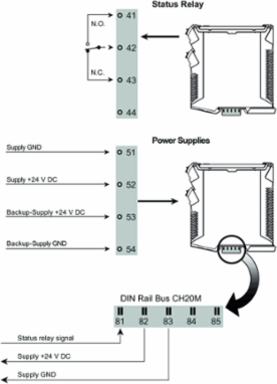

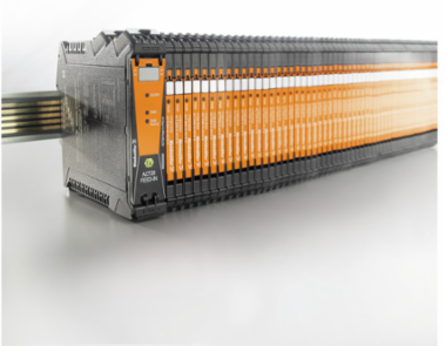

- The power-feed unit ACT20-FEED-IN-PRO-S distributes the supply voltage for the ACT20 range of devices to the Weidmüller CH20M DIN rail bus. The device also has a connection for a backup power supply. Installation is basically on the Weidmüller CH20M DIN rail bus. Properties The power-feed unit ACT20-FEED-IN-PRO-S detects errors on each of the devices mounted on the Weidmüller CH20M DIN rail and sends a collective message to an external controller via the internal status relay. Two power supplies for the primary and secondary supply (backup) can be optionally connected. A redundant power supply can be set up using two power-feed units and two separate power supplies. The status relay is activated when the following conditions are met: ◊ The supply voltage is on the connection terminals 51 and 52 ◊ The backup supply voltage is on the terminals 53 and 54. If the backup power supply is not required, the supplied jumper needs to be inserted between terminals 52 and 53. ◊ The devices mounted on the Weidmüller DIN rail do not report any errors The device can be used in safe (non-explosive risk) areas or in Zone 2 / Division 2. The operating status of the power supply and the backup power supply is indicated with two green LEDs. A malfunction is indicated with a red LED.
Environmental Product Compliance
- REACH SVHC
- Lead 7439-92-1
Insulation Coordination
- EMC standards
- IEC 61326-1, NE 21
Temperatures
- Humidity
- 95 %, no condensation
- Storage temperature, min.
- -20 °C
- Storage temperature
- -20 °C...85 °C
Storage temperature, max.85 °C
Ambient temperature-20...+60 °C
Ratings Iecex/Atex/Cul
- Certificate no. (cULus)
- E337701
