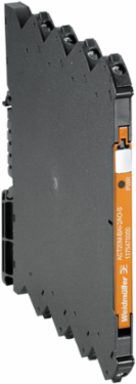

Weidmuller 1282490000 ACT20-FEED-IN-BASIC-S Supply Module, 24V DC, 2.5A, 6.1mm Width
- MPN: 1282490000
- PPN: WDM-1282490000
CAD
$84.82
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
ACT20M, Supply module, Screw connection
Documentation & Downloads
Specifications
General Data
- Degree of efficiency
- 100 %
- Voltage supply
- 21.6...26.4 V DC
RailTS 35, CH20M Bus
Approvals
- Approvals
- CULUS, DETNORVER, DNV GL, EAC, FMEX, IECEXKEM, KEMAATEX
- UL File Number Search
- E337701
ROHSConform
Dimensions And Weights
- Width
- 6.1 mm
- Height
- 112.5 mm
- Weight
- 70 g
Width (inches)0.24 inch
Height (inches)4.429 inch
Net weight83 g
Connection Data
- Type of connection
- Screw connection
- Tightening torque, max.
- 0.6 Nm
- Clamping range, min.
- 0.5 mm²
- Wire connection cross section AWG, min.
- AWG 30
Tightening torque, min.0.4 Nm
Clamping range, rated connection2.5 mm²
Clamping range, max.2.5 mm²
Wire connection cross section AWG, max.AWG 14
Rated Data Ul
- UL certificate
- E337701.pdf
Input
- Number of inputs
- 1
Input current0.5...2.5 A DC
Classifications
- ETIM 6.0
- EC001600
- eClass 9.0
- 27-24-26-10
- eClass 10.0
- 27-24-26-10
ETIM 7.0EC001600
eClass 9.127-24-26-10
Output
- Number of outputs
- 1
- Output current
- Equivalent to input current, (Supply of e.g. 75 devices of ACT20M-CI-2CO-S on one CH20M BUS)
Output voltage, noteCorresponds to the input voltage
Product Information
- Product information

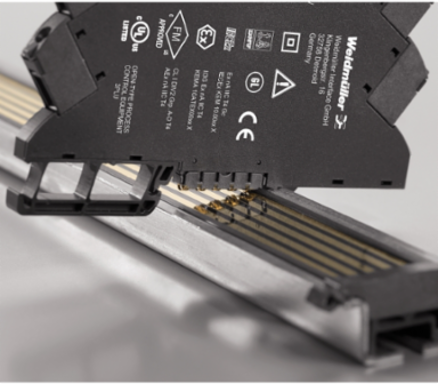

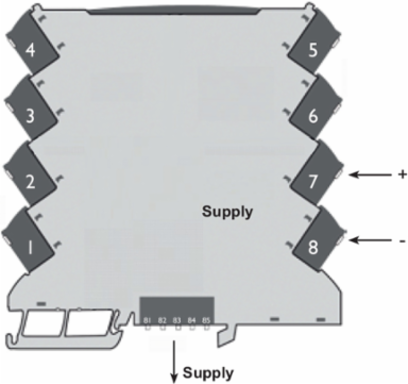

- The ACT20-FEED-IN-BASIC-S device supplies the Weidmüller CH20M DIN-rail bus with an externally connected supply voltage of 24V DC ± 30%. The current-carrying capacity of the power- feed device is 2.5 A max.The input current must be limited to this maximum value.
Environmental Product Compliance
- REACH SVHC
- Lead 7439-92-1
Data For Ex Applications (Atex)
- Marking
- II 3 G Ex nA IIC T4 Gc
Insulation Coordination
- EMC standards
- IEC 61326-1, NE 21
Temperatures
- Humidity
- 95 %, no condensation
- Operating temperature, min.
- -20 °C
- Storage temperature, min.
- -20 °C
- Ambient temperature
- -25 °C...+70 °C
Operating temperature, max.60 °C
Storage temperature, max.85 °C
Operating temperature-20 °C...60 °C
Storage temperature-20 °C...85 °C
Ratings Iecex/Atex/Cul
- Certificate No. (ATEX)
- KEMA10ATEX0183X
- Certificate no. (cULus)
- E337701
Certificate No. (IECEX)IECEXKEM10.0090X
