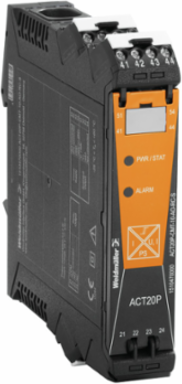

Weidmuller 1510420000 Current Measuring Transducer 60 A, 0-20 mA Output, True RMS

MPN: 1510420000
PPN: WDM-1510420000

$648.12

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

Current-measuring transducer, Input : 0…40/50/60 A, Output : 0(4)-20 mA, 0-10 V, Relay

Documentation & Downloads

Specifications

General Data

Accuracy	< 0.75 % FSR, < 1.5 % FSR with measurement range 50/60 A AC
Galvanic isolation	4-way isolator;, between input ⁄ output ⁄ supply ⁄ relay
Rail	TS 35
Temperature coefficient	typ. 0.04 % / K, max. 0.09 % / K

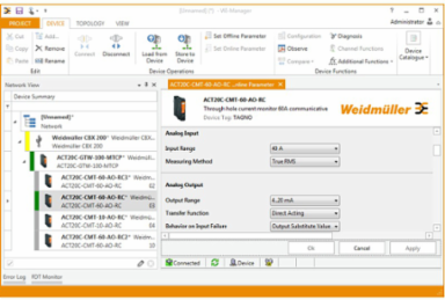

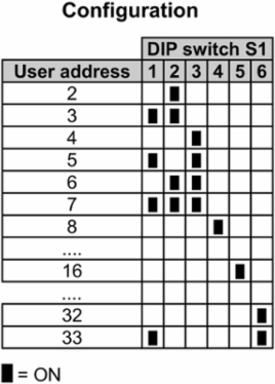

Configuration	With FDT/DTM software, via gateway (ACT20C-GTW-100-MTCP-S), Addressing via DIP switches
Power consumption, max.	2.2 W
Step response time	< 300 ms
Voltage supply	via the system bus

Probability Of Failure

MTTF	130 Years

Approvals

Approvals	CULUS, DNV GL, EAC
UL File Number Search	E141197

ROHS	Conform

Communication

Configuration	With FDT/DTM software, via gateway (ACT20C-GTW-100-MTCP-S), Addressing via DIP switches

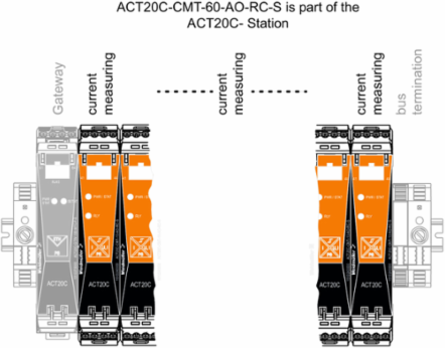

Interface	Communication via CH20M rail bus with gateway (ACT20C-GTW-100-MTCP-S)

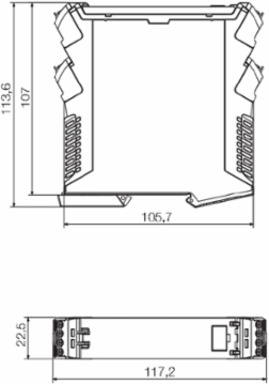

Dimensions And Weights

Width	22.5 mm
Height	117.2 mm
Depth	113.6 mm
Weight	180 g

Width (inches)	0.886 inch
Height (inches)	4.614 inch
Depth (inches)	4.472 inch
Net weight	154 g

Output (Digital)

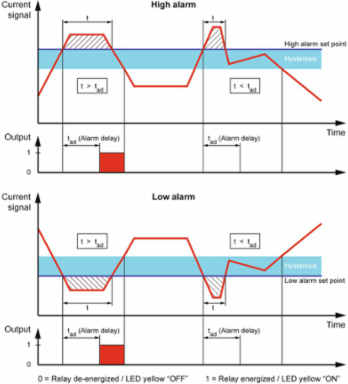

Type	Relay, 1 CO contact, Process alarms (4x) with hysteresis, with alarm delay (configurable) 0…180 s
Rated switching current	6 A

Max. switching voltage, AC	250 V

Connection Data

Type of connection	Screw connection
Tightening torque, max.	3.5 Lb In
Clamping range, min.	0.5 mm²
Wire connection cross section AWG, min.	AWG 30
Wire cross-section, solid, min.	0.5 mm²

Tightening torque, min.	0.5 Nm
Clamping range, rated connection	1.5 mm²
Clamping range, max.	2.5 mm²
Wire connection cross section AWG, max.	AWG 14
Wire cross-section, solid, max.	2.5 mm²

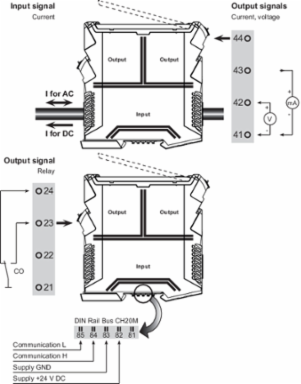

Input

Input signal	Current-carrying cable in feed-through hole, Diameter 10.5 mm
Input frequency	AC: 15…700 Hz

Input measurement range	configurable, 0…40/50/60 A AC (RMS) or DC

Output (Analogue)

Load resistance current	≤ 600 Ω
Output current	Adjustable, 0...20 mA, 4...20 mA, -20…+20 mA
Type (analogue output)	Voltage and current output (configurable)

Load resistance voltage	≥ 10 kΩ
Output voltage	Adjustable, 0...10 V, 2…10 V, 0...5 V, 1...5 V, -5…+5 V, -10...+10 V

Classifications

ETIM 6.0	EC002475
eClass 9.0	27-21-01-23
eClass 10.0	27-21-01-23

ETIM 7.0	EC002475
eClass 9.1	27-21-01-23

Product Information

Product information

The ACT20C-CMT-XX-AO-RC-S current measuring transducers from the ACT20C series measure and monitor DC and AC currents of up to 60 A. The True RMS method used allows for precise measurement, even in case of distorted current waveforms. The devices feature integrated limit value monitoring with an adjustable switching threshold, delay and hysteresis, as well as a relay output. Properties True RMS value measurement or arithmetic averaging (AA) measurement and contactless through-hole technologyLimit value monitoring for overcurrent or undercurrentRelay output by means of the open-circuit / closed-circuit principleInfinitely variable trigger delayOperational status and error display on a front panel LED and output signalling according to NE43, NE44, NE107Galvanic four-way insulation for secure isolation according to IEC/EN 61010-2-201:2013
