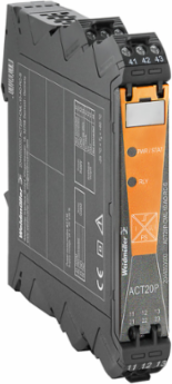

Weidmuller 2044850000 ACT20P Current Measuring Transducer, 0-10 A AC/DC, 119.2 mm Height

MPN: 2044850000
PPN: WDM-2044850000

$398.12

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

Current-measuring transducer, Limit value monitoring, Signal converter/isolator, Current monitoring, Analogue output, Screw connection, Input measurement range: configurable, 0…1/5/10 A AC (RMS) or DC

Documentation & Downloads

Specifications

General Data

Accuracy	≤ ±0.3 % @ 1 A ⁄ 5 A, ≤ ±0.6 % @ 10 A
Galvanic isolation	4-way isolator;, between input ⁄ output ⁄ supply ⁄ relay
Rail	TS 35
Temperature coefficient	≤ ±100 ppm⁄K @ -25…+55 °C, ≤ ±200 ppm/K @ +55…+70 °C

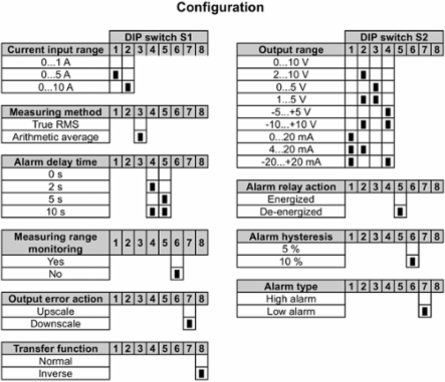

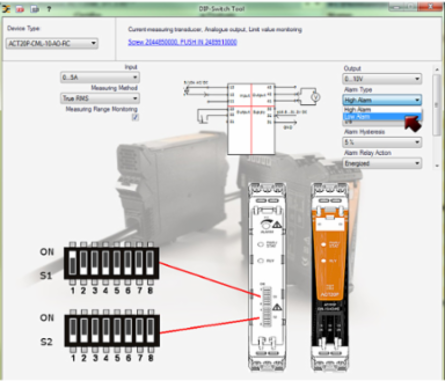

Configuration	DIP switch and potentiometer
Power consumption, max.	2.2 W
Step response time	≤ 300 ms (RMS), ≤ 60 ms (AA)
Voltage supply	16,8 V…31,2 V

Probability Of Failure

MTTF	130 Years

Approvals

Approvals	CULUS, DNV GL, EAC
UL File Number Search	E141197

ROHS	Conform

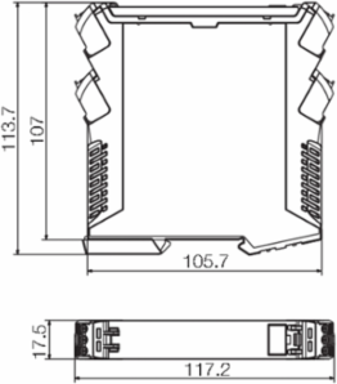

Dimensions And Weights

Width	17.5 mm
Height	119.2 mm
Depth	113.6 mm
Net weight	141 g

Width (inches)	0.689 inch
Height (inches)	4.693 inch
Depth (inches)	4.472 inch

Output (Digital)

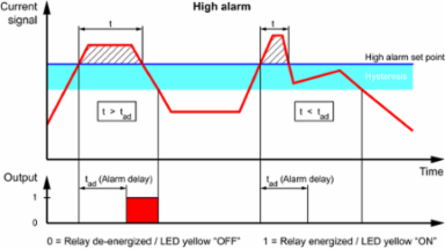

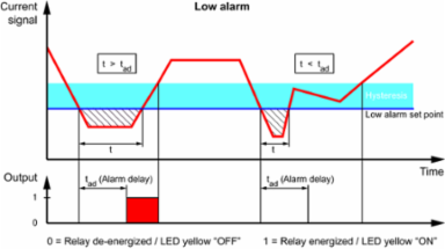

Alarm function	Surge current, Under-current, Alarm delay: 0...10 s
Type	Relay, 1 CO contact, normal / inverse adjustment
Max. switching voltage, AC	250 V

Number of digital outputs	1
Max. switching voltage, DC	24 V
Rated switching current	2 A

Connection Data

Type of connection	Screw connection
Tightening torque, max.	0.6 Nm
Clamping range, min.	0.5 mm²
Wire connection cross section AWG, min.	AWG 26

Tightening torque, min.	0.4 Nm
Clamping range, rated connection	1.5 mm²
Clamping range, max.	2.5 mm²
Wire connection cross section AWG, max.	AWG 12

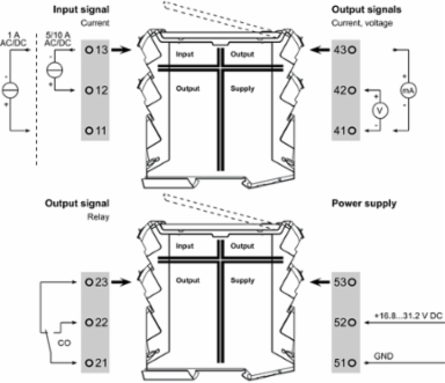

Input

Number of inputs	1
Input measurement range	configurable, 0…1/5/10 A AC (RMS) or DC

Input signal	Power cable can be connected to the terminals
Input frequency	AC: 15…400 Hz (true root mean square), AC: 50 Hz (arithmetic average)

Output (Analogue)

Load resistance current	≤ 600 Ω
Output current	Adjustable, 0...20 mA, 4...20 mA, -20…+20 mA
Type (analogue output)	Voltage and current output (configurable)

Load resistance voltage	≥ 10 kΩ
Output voltage	Adjustable, 0...10 V, 2…10 V, 0...5 V, 1...5 V, -5…+5 V, -10...+10 V

Classifications

ETIM 6.0	EC002475
eClass 9.0	27-21-01-23
eClass 10.0	27-21-01-23

ETIM 7.0	EC002475
eClass 9.1	27-21-01-23

Product Information

Product information

The device ACT20P-CML-10-AO-RC-S measures and monitors AC and DC currents of up to 10 A. The real effective value method used allows for precise measurement, even for distorted current curve shapes. The device features an integrated limit value monitoring function with an adjustable switching threshold, lag and hysteresis, as well as a relay output. Features Real effective value measurement (True RMS) or arithmetic averaging (AA) measurement Limit value monitoring for overcurrent or undercurrent Relay output by means of the open-circuit / closed-circuit principle Adjustable trigger delay for filtering current peaks Operational status and error display on a front panel LED and output signalling according to NE43, NE44, NE107 Galvanic four-way insulation for secure isolation according to IEC/EN 61010-2-201
