Weidmuller 2044840000 Current-Measuring Transducer 0-10 V, 0-20 mA, 0-5/10 A Input
- MPN: 2044840000
- PPN: WDM-2044840000
CAD
$476.04
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

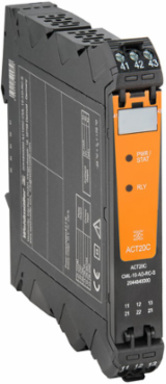

Current-measuring transducer, Input : 0…5/10 A, Output : 0(4)-20 mA, 0-10 V, Relay
Documentation & Downloads
Specifications
General Data
| Accuracy | ≤ ±0.3 % @ 1 A ⁄ 5 A, ≤ ±0.6 % @ 10 A |
|---|---|
| Galvanic isolation | 4-way isolator;, between input ⁄ output ⁄ supply ⁄ relay |
| Rail | TS 35 |
| Temperature coefficient | ≤ ±100 ppm⁄K @ -25…+55 °C, ≤ ±200 ppm/K @ +55…+70 °C |

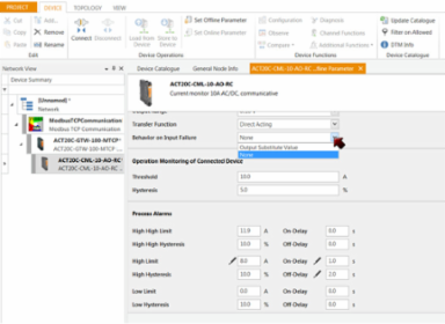

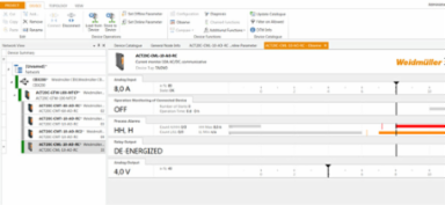

| Configuration | for thresholds (overcurrent ⁄ undercurrent), delay and hysteresis, via gateway (ACT20C-GTW-100-MTCP-S), With FDT/DTM software |
|---|---|
| Power consumption, max. | 2.2 W |
| Step response time | ≤ 300 ms (RMS), ≤ 60 ms (AA) |
| Voltage supply | 24 V DC ± 30 % |
Probability Of Failure
| MTTF | 130 Years |
|---|
Approvals
| Approvals | CULUS, DNV GL, EAC |
|---|---|
| UL File Number Search | E141197 |
| ROHS | Conform |
|---|

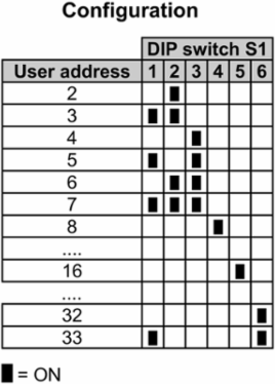

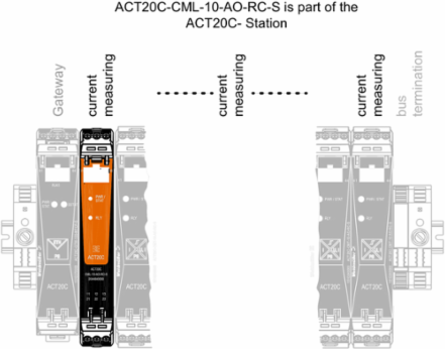

Communication
| Configuration | for thresholds (overcurrent ⁄ undercurrent), delay and hysteresis, via gateway (ACT20C-GTW-100-MTCP-S), With FDT/DTM software |
|---|

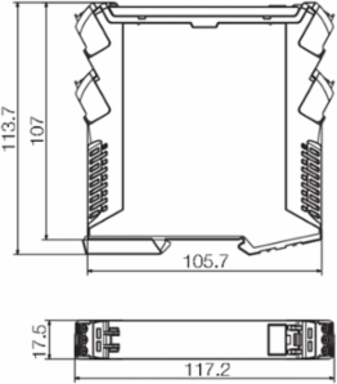

Dimensions And Weights
| Width | 17.5 mm |
|---|---|
| Height | 117.2 mm |
| Depth | 113.6 mm |
| Net weight | 134 g |
| Width (inches) | 0.689 inch |
|---|---|
| Height (inches) | 4.614 inch |
| Depth (inches) | 4.472 inch |

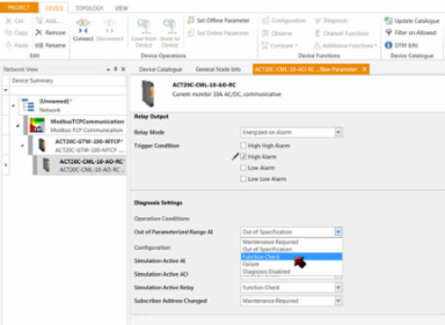

Output (Digital)
| Type | Relay, 1 CO contact, Process alarms (4x) with hysteresis, with alarm delay (configurable) 0…180 s |
|---|---|
| Max. switching voltage, AC | 250 V |
| Max. switching voltage, DC | 24 V |
|---|---|
| Rated switching current | 2 A |
Connection Data
| Type of connection | Screw connection |
|---|---|
| Tightening torque, max. | 3.5 Lb In |
| Clamping range, min. | 0.5 mm² |
| Wire connection cross section AWG, min. | AWG 30 |
| Wire cross-section, solid, min. | 0.5 mm² |
| Tightening torque, min. | 0.5 Nm |
|---|---|
| Clamping range, rated connection | 1.5 mm² |
| Clamping range, max. | 2.5 mm² |
| Wire connection cross section AWG, max. | AWG 14 |
| Wire cross-section, solid, max. | 2.5 mm² |

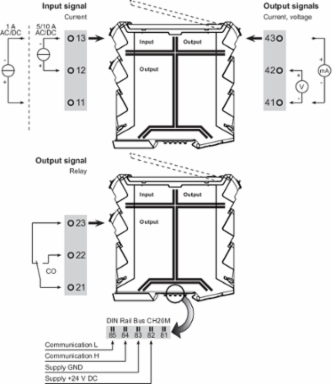

Input
| Input signal | Power cable can be connected to the terminals |
|---|---|
| Input frequency | AC: 15…400 Hz (true root mean square), AC: 50 Hz (arithmetic average) |
| Input measurement range | configurable, 0…1/5/10 A AC (RMS) or DC |
|---|
Output (Analogue)
| Load resistance current | ≤ 600 Ω |
|---|---|
| Output current | Adjustable, 0...20 mA, 4...20 mA, -20…+20 mA |
| Type (analogue output) | Voltage and current output (configurable) |
| Load resistance voltage | ≥ 10 kΩ |
|---|---|
| Output voltage | Adjustable, 0...10 V, 2…10 V, 0...5 V, 1...5 V, -5…+5 V, -10...+10 V |
Classifications
| ETIM 6.0 | EC002475 |
|---|---|
| eClass 9.0 | 27-21-01-23 |
| eClass 10.0 | 27-21-01-23 |
| ETIM 7.0 | EC002475 |
|---|---|
| eClass 9.1 | 27-21-01-23 |
Environmental Product Compliance
| REACH SVHC | Lead 7439-92-1 |
|---|
Insulation Coordination
| EMC standards | IEC 61326-1, IEC 61010-2-201 |
|---|---|
| Impulse withstand voltage | 6 kV (1.2/50 µs) |
| Rated voltage | 300 V ACrms |
| Galvanic isolation | 4-way isolator;, between input ⁄ output ⁄ supply ⁄ relay |
|---|---|
| Pollution severity | 2 |
| Surge voltage category | III |
Temperatures
| Humidity | 5...95 %, no condensation |
|---|---|
| Storage temperature, min. | -40 °C |
| Storage temperature | -40 °C...85 °C |
| Storage temperature, max. | 85 °C |
|---|---|
| Ambient temperature | -25 °C...+70 °C |
Ratings Iecex/Atex/Cul
| Certificate no. (cULus) | E141197 |
|---|
