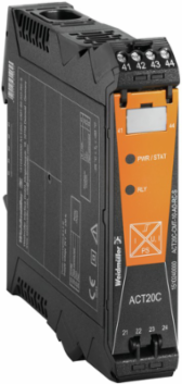

Weidmuller 1510240000 Current Measuring Transducer, 0…5/10 A Input, Relay Output, 0-20 mA
- MPN: 1510240000
- PPN: WDM-1510240000
CAD
$513.40
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Current-measuring transducer, Input : 0…5/10 A, Output : 0(4)-20 mA, 0-10 V, Relay
Documentation & Downloads
Specifications
General Data
- Accuracy
- < 0.75 % FSR
- Galvanic isolation
- 4-way isolator;, between input ⁄ output ⁄ supply ⁄ relay
- Rail
- TS 35
- Temperature coefficient
- typ. 0.04 % / K, max. 0.09 % / K

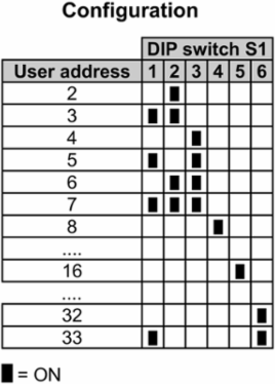

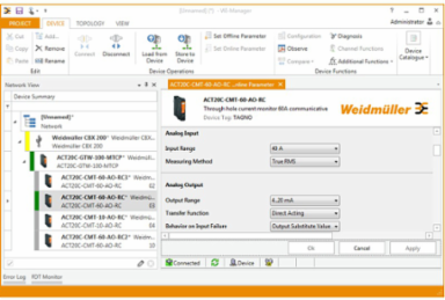

ConfigurationWith FDT/DTM software, via gateway (ACT20C-GTW-100-MTCP-S), Addressing via DIP switches
Power consumption, max.2.2 W
Step response time< 300 ms
Voltage supplyvia the system bus
Probability Of Failure
- MTTF
- 130 Years
Approvals
- Approvals
- CULUS, DNV GL, EAC
- UL File Number Search
- E141197
ROHSConform
Communication
- Configuration
- With FDT/DTM software, via gateway (ACT20C-GTW-100-MTCP-S), Addressing via DIP switches

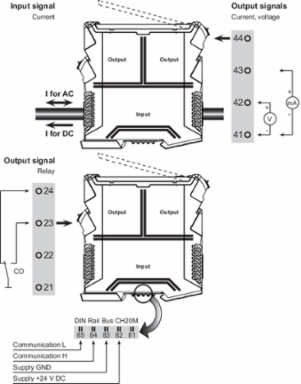

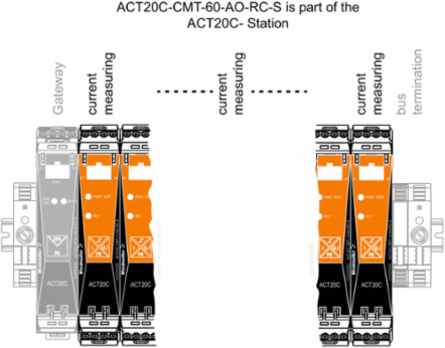

InterfaceCommunication via CH20M rail bus with gateway (ACT20C-GTW-100-MTCP-S)

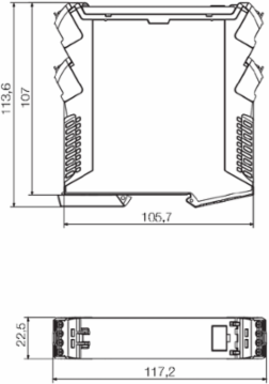

Dimensions And Weights
- Width
- 22.5 mm
- Height
- 117.2 mm
- Depth
- 113.6 mm
- Weight
- 180 g
Width (inches)0.886 inch
Height (inches)4.614 inch
Depth (inches)4.472 inch
Net weight154 g
Output (Digital)
- Type

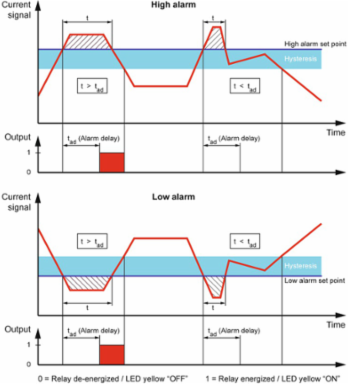

- Relay, 1 CO contact, Process alarms (4x) with hysteresis, with alarm delay (configurable) 0…180 s
- Max. switching voltage, AC
- 250 V
Max. switching voltage, DC24 V
Rated switching current6 A
Connection Data
- Type of connection
- Screw connection
- Tightening torque, max.
- 3.5 Lb In
- Clamping range, min.
- 0.5 mm²
- Wire connection cross section AWG, min.
- AWG 30
- Wire cross-section, solid, min.
- 0.5 mm²
Tightening torque, min.0.5 Nm
Clamping range, rated connection1.5 mm²
Clamping range, max.2.5 mm²
Wire connection cross section AWG, max.AWG 14
Wire cross-section, solid, max.2.5 mm²
Input
- Input signal
- Current-carrying cable in feed-through hole, Diameter 10.5 mm
- Input frequency
- AC: 15…700 Hz
Input measurement rangeconfigurable, 0…5/10 A AC (RMS) or DC
Output (Analogue)
- Load resistance current
- ≤ 600 Ω
- Output current
- Adjustable, 0...20 mA, 4...20 mA, -20…+20 mA
- Type (analogue output)
- Voltage and current output (configurable)
Load resistance voltage≥ 10 kΩ
Output voltageAdjustable, 0...10 V, 2…10 V, 0...5 V, 1...5 V, -5…+5 V, -10...+10 V
Classifications
- ETIM 6.0
- EC002475
- eClass 9.0
- 27-21-01-23
- eClass 10.0
- 27-21-01-23
ETIM 7.0EC002475
eClass 9.127-21-01-23
Product Information
- Product information
- The ACT20C-CMT-XX-AO-RC-S current measuring transducers from the ACT20C series measure and monitor DC and AC currents of up to 60 A. The True RMS method used allows for precise measurement, even in case of distorted current waveforms. The devices feature integrated limit value monitoring with an adjustable switching threshold, delay and hysteresis, as well as a relay output. Properties True RMS value measurement or arithmetic averaging (AA) measurement and contactless through-hole technologyLimit value monitoring for overcurrent or undercurrentRelay output by means of the open-circuit / closed-circuit principleInfinitely variable trigger delayOperational status and error display on a front panel LED and output signalling according to NE43, NE44, NE107Galvanic four-way insulation for secure isolation according to IEC/EN 61010-2-201:2013
Environmental Product Compliance
- REACH SVHC
- Lead 7439-92-1
Insulation Coordination
- EMC standards
- IEC 61326-1
- Impulse withstand voltage
- 6.4 kV (1.2/50 µs)
- Rated voltage
- 300 V ACrms
Galvanic isolation4-way isolator;, between input ⁄ output ⁄ supply ⁄ relay
Pollution severity2
Surge voltage categoryIII
Temperatures
- Humidity
- 5...95 %, no condensation
- Operating temperature, min.
- -25 °C
- Storage temperature, min.
- -40 °C
- Ambient temperature
- -25 °C...+60 °C
Operating temperature, max.60 °C
Storage temperature, max.85 °C
Operating temperature-25 °C...60 °C
Storage temperature-40 °C...85 °C
Ratings Iecex/Atex/Cul
- Certificate no. (cULus)
- E141197
