Weidmuller 2489910000 ACT20P Current Measuring Transducer, 0-10 A AC/DC Input, 141 g Weight
- MPN: 2489910000
- PPN: WDM-2489910000
CAD
$380.10
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Current-measuring transducer, Limit value monitoring, Signal converter/isolator, Current monitoring, Analogue output, PUSH IN connection, Input measurement range: configurable, 0…1/5/10 A AC (RMS) or DC
Documentation & Downloads
Specifications
General Data
- Accuracy
- ≤ ±0.3 % @ 1 A ⁄ 5 A, ≤ ±0.6 % @ 10 A
- Galvanic isolation
- 4-way isolator;, between input ⁄ output ⁄ supply ⁄ relay
- Rail
- TS 35
- Temperature coefficient
- ≤ ±100 ppm⁄K @ -25…+55 °C, ≤ ±200 ppm/K @ +55…+70 °C

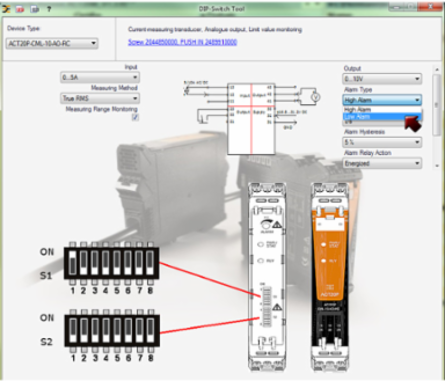

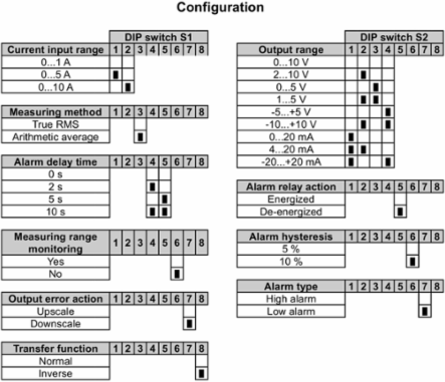

ConfigurationDIP switch and potentiometer
Power consumption, max.2.2 W
Step response time≤ 300 ms (RMS), ≤ 60 ms (AA)
Voltage supply16,8 V…31,2 V
Approvals
- ROHS
- Conform

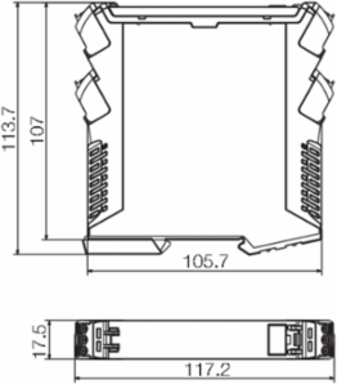

Dimensions And Weights
- Width
- 17.5 mm
- Height
- 127.1 mm
- Depth
- 114 mm
- Net weight
- 141 g
Width (inches)0.689 inch
Height (inches)5.004 inch
Depth (inches)4.488 inch

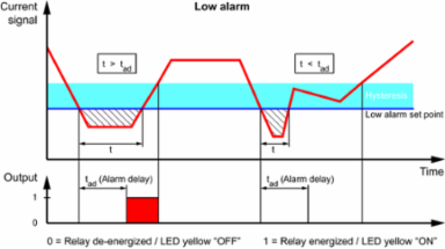

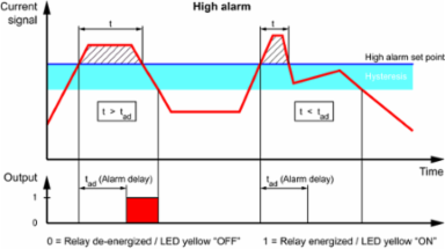

Output (Digital)
- Alarm function
- Surge current, Under-current, Alarm delay: 0...10 s
- Type
- Relay, 1 CO contact, normal / inverse adjustment
- Max. switching voltage, AC
- 250 V
Number of digital outputs1
Max. switching voltage, DC24 V
Rated switching current2 A

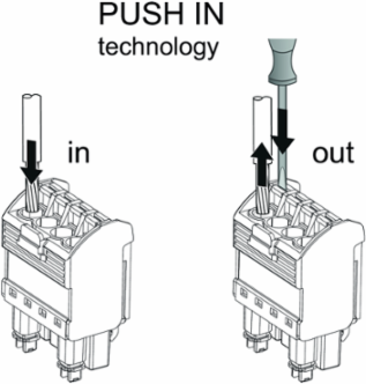

Connection Data
- Type of connection
- PUSH IN
- Wire connection cross section AWG, max.
- AWG 14
- Wire cross-section, solid, max.
- 2.5 mm²
- Wire connection cross section, finely stranded, max.
- 2.5 mm²
- Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max.
- 2.5 mm²
Wire connection cross section AWG, min.AWG 26
Wire cross-section, solid, min.0.2 mm²
Wire connection cross-section, finely stranded, min.0.2 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min.0.2 mm²

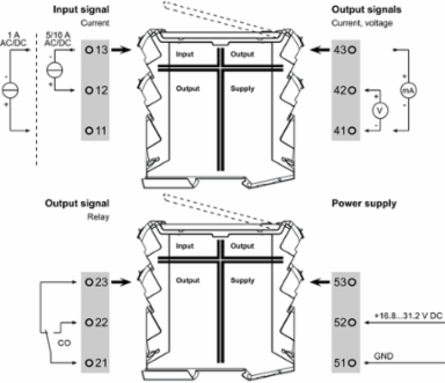

Input
- Number of inputs
- 1
- Input measurement range
- configurable, 0…1/5/10 A AC (RMS) or DC
Input signalPower cable can be connected to the terminals
Input frequencyAC: 15…400 Hz (true root mean square), AC: 50 Hz (arithmetic average)
Output (Analogue)
- Load resistance current
- ≤ 600 Ω
- Output current
- Adjustable, 0...20 mA, 4...20 mA, -20…+20 mA
- Type (analogue output)
- Voltage and current output (configurable)
Load resistance voltage≥ 10 kΩ
Output voltageAdjustable, 0...10 V, 2…10 V, 0...5 V, 1...5 V, -5…+5 V, -10...+10 V
Classifications
- ETIM 6.0
- EC002475
- eClass 9.0
- 27-21-01-23
- eClass 10.0
- 27-21-01-23
ETIM 7.0EC002475
eClass 9.127-21-01-23
Product Information
- Product information
- The device ACT20P-CML-10-AO-RC-P measures and monitors AC and DC currents of up to 10 A. The real effective value method used allows for precise measurement, even for distorted current curve shapes. The device features an integrated limit value monitoring function with an adjustable switching threshold, lag and hysteresis, as well as a relay output. Features Real effective value measurement (True RMS) or arithmetic averaging (AA) measurement Limit value monitoring for overcurrent or undercurrent Relay output by means of the open-circuit / closed-circuit principle Adjustable trigger delay for filtering current peaks Operational status and error display on a front panel LED and output signalling according to NE43, NE44, NE107 Galvanic four-way insulation for secure isolation according to IEC/EN 61010-2-201
Environmental Product Compliance
- REACH SVHC
- Lead 7439-92-1
Insulation Coordination
- EMC standards
- IEC 61326-1, IEC 61010-2-201
- Impulse withstand voltage
- 6 kV (1.2/50 µs)
- Pollution severity
- 2
- Surge voltage category
- III
Galvanic isolation4-way isolator;, between input ⁄ output ⁄ supply ⁄ relay
Insulation voltage4 kVeff / 1 min.
Rated voltage300 V ACrms
Temperatures
- Humidity
- 5...95 %, no condensation
- Operating temperature, min.
- -25 °C
- Storage temperature, min.
- -40 °C
- Storage temperature
- -40 °C...85 °C
Operating temperature, max.60 °C
Storage temperature, max.85 °C
Operating temperature-25 °C...60 °C
