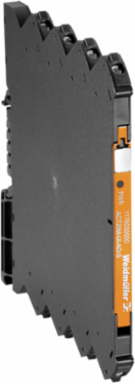

Weidmuller 1176080000 ACT20M 2-Channel Passive Signal Isolator, 4-20 mA Input, 6.1 mm Width
- MPN: 1176080000
- PPN: WDM-1176080000
CAD
$523.13
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Signal converter/insulator, Input current loop feed, 2-channel, Input : 4-20 mA, Output : 4-20 mA
Documentation & Downloads
Specifications
General Data
- Accuracy
- < 0.1 % of measuring range
- Galvanic isolation
- 2-way isolator
- Rail
- TS 35
- Temperature coefficient
- ≤ 0.01 % / °C
Configurationnone
Power consumption30 mW per channel
Step response time≤ 5 ms
Voltage supplyLoop powered, via 4…20 mA input
Probability Of Failure
- MTBF
- 699 Years
Approvals
- Approvals
- CULUS, DETNORVER, DNV GL, EAC, FMEX, IECEXKEM, KEMAATEX
- UL File Number Search
- E337701
ROHSConform
Dimensions And Weights
- Width
- 6.1 mm
- Height
- 112.5 mm
- Depth
- 114.3 mm
- Net weight
- 97 g
Width (inches)0.24 inch
Height (inches)4.429 inch
Depth (inches)4.5 inch
Connection Data
- Type of connection
- Screw connection
- Tightening torque, max.
- 0.6 Nm
- Clamping range, min.
- 0.5 mm²
- Wire connection cross section AWG, min.
- AWG 30
Tightening torque, min.0.4 Nm
Clamping range, rated connection2.5 mm²
Clamping range, max.2.5 mm²
Wire connection cross section AWG, max.AWG 14
Tender Specification Sheets
- Long specification
- Standard signal passive isolator2-channel passive isolator in 6.1 mm width input-loop powered,for transmitting and isolating analogue DC current signals 0/4...20 mA.Add-on housing for TS35 rail mountingDimensions: L/W/H 114.3/ 6.1/ 112.5 mmScrew connection / Nominal cross-section 2.5 mm2Protection degree: IP 20 Input 0/4...20 mAOutput 0/4...20 mALoad resistance < 600 OhmTransmission error < 0,1 % v. E. Limit frequency 100 Hz Auxiliary power 0/4...20 mA input current loop Power loss approx. 1.3 W Ambient temperature range -25 °C...+70 °CIsolation EN 61010-1, 2-way isolation up to 2.5 kV AC/DCTest voltage 2.5 kV input against output against auxiliary powerRated voltage 300 V AC/DC at overvoltage category II and pollution degree 2Approvals cULus, FM Div2, ATEX Zone2, DNV, GLType ACT20M-2CI-2CO-ILP-S
Short specificationStandard signal passive isolator2-channel signal passive isolator in 6.1 mm width with input current loop feed,for transmitting and isolating analogue DC current signals from 0/4 to 20 mA
Input
- Number of inputs
- 2
- Input current
- 0...20 mA, 4…20mA
- Input frequency
- 100 Hz
SensorCurrent source
Voltage drop, current input1.25 V + 0.015 Vout @25°C
Classifications
- ETIM 6.0
- EC002653
- eClass 9.0
- 27-21-01-20
- eClass 10.0
- 27-21-01-20
ETIM 7.0EC002653
eClass 9.127-21-01-20
Output
- Number of outputs
- 2
- Cut-off frequency (-3 dB)
- 100 Hz
Output current0...20 mA, 4...20 mA
load impedance current≤600 Ω (channel 1 + 2)
Product Information
- Product information

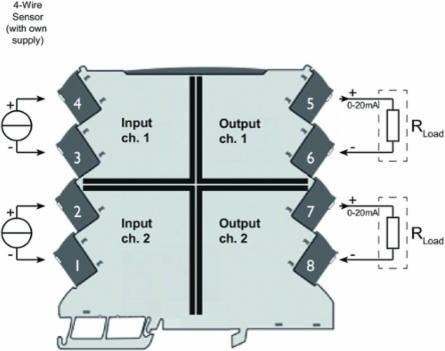

- The ACT20M-CI-CO-ILP-S passive isolator isolates standard analogue current signals. An analogue input current signal is linearly converted to an analogue output current signal and is galvanically isolated. Power is supplied through the input measuring circuit (input loop-powered). The passive isolator ACT20M-2CI-2CO-ILP-S offers the same functionality, but has two galvanically isolated channels.
Environmental Product Compliance
- REACH SVHC
- Lead 7439-92-1
Data For Ex Applications (Atex)
- Marking
- II 3 G Ex nA IIC T4 Gc
Insulation Coordination
- EMC standards
- IEC 61326-1, NE 21
- Insulation voltage
- 2.5 kVeff
- Rated voltage
- 300 Veff
Galvanic isolation2-way isolator
Pollution severity2
Surge voltage categoryII
Temperatures
- Humidity
- 40 °C / 93 % rel. humidity, no condensation
- Operating temperature, min.
- -25 °C
- Storage temperature, min.
- -40 °C
- Ambient temperature
- -25 °C...+70 °C
Operating temperature, max.70 °C
Storage temperature, max.85 °C
Operating temperature-25 °C...70 °C
Storage temperature-40 °C...85 °C
Ratings Iecex/Atex/Cul
- Certificate No. (ATEX)
- KEMA10ATEX0183X
- Certificate no. (cULus)
- E337701
Certificate No. (IECEX)IECEXKEM10.0090X
