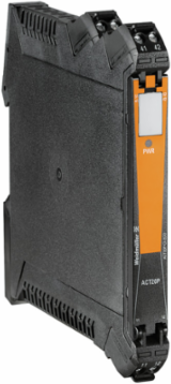

Weidmuller 7760054114 Signal Converter/Isolator 0(4)-20 mA Input, 0(4)-20 mA Output, 110 g Weight
- MPN: 7760054114
- PPN: WDM-7760054114
CAD
$362.36
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Signal converter/isolator, Input : 0(4)-20 mA, Output : 0(4)-20 mA
Documentation & Downloads
Specifications
General Data
| Accuracy | < 0.1 % of end value |
|---|---|
| Current consumption | ≤60 mA (24V power supply, 20mA output) |
| Rail | TS 35 |
| Temperature coefficient | 80 ppm/K |
| Configuration | none |
|---|---|
| Galvanic isolation | 3-way isolator, between input ⁄ output ⁄ supply |
| Step response time | ≤ 0,5 ms |
| Voltage supply | 20…30 V DC |
Approvals
| Approvals | CE, CULUS, EAC |
|---|---|
| UL File Number Search | E366074 |
| ROHS | Conform |
|---|

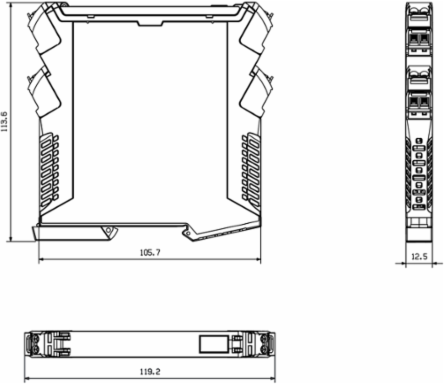

Dimensions And Weights
| Width | 12.5 mm |
|---|---|
| Height | 117.2 mm |
| Depth | 113.7 mm |
| Weight | 110 g |
| Width (inches) | 0.492 inch |
|---|---|
| Height (inches) | 4.614 inch |
| Depth (inches) | 4.476 inch |
| Net weight | 142 g |
Connection Data
| Type of connection | Screw connection |
|---|---|
| Tightening torque, max. | 0.6 Nm |
| Clamping range, min. | 0.5 mm² |
| Wire connection cross section AWG, min. | AWG 26 |
| Tightening torque, min. | 0.4 Nm |
|---|---|
| Clamping range, rated connection | 2.5 mm² |
| Clamping range, max. | 2.5 mm² |
| Wire connection cross section AWG, max. | AWG 12 |
Input
| Number of inputs | 1 |
|---|---|
| Input signal | 2-/3-wire transmitter, HART signal® bidirectional |
| Voltage drop | ca. 3.8 V @ RLoad = 0 Ω; ca. 15 V @ RLoad = 600 Ω; (Iinput = 20 mA) |
| Sensor supply | > 17 V DC at 20 mA, max 30 V @ open circuit, max 50 mA @ short-circuit |
|---|---|
| Input current | 0...20 mA, 4…20mA |
Classifications
| ETIM 6.0 | EC002653 |
|---|---|
| eClass 9.0 | 27-21-01-20 |
| eClass 10.0 | 27-21-01-20 |
| ETIM 7.0 | EC002653 |
|---|---|
| eClass 9.1 | 27-21-01-20 |
Output
| Number of outputs | 1 |
|---|---|
| load impedance current | ≤ 550 Ω |
| Output current | 0...20 mA, 4...20 mA, HART® digital signal |
|---|
Product Information

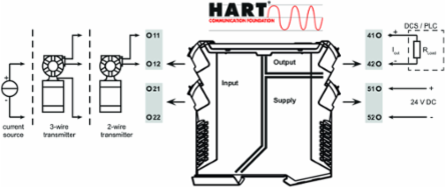

| Product information | The non-adjustable DC isolating amplifier ACT20P-CI-CO isolates analogue standard current signals from a power source or from a 2- or 3-wire sensor. An analogue input current signal is linearly converted into an analogue output current signal and is galvanically isolated. The power supply is galvanically isolated from the input and output (3-way isolation). Properties HART-compatible for 0.5 - 2.5 kHz The active or passive mA signal inputs are fully galvanically isolated. Operating status display on a front panel LED Galvanic 3-way isolation between input, output and supply. |
|---|
Environmental Product Compliance
| REACH SVHC | Lead 7439-92-1 |
|---|
Insulation Coordination
| EMC standards | EN 61010-1:2011, UL 61010-1, EN 61326-1 |
|---|---|
| Impulse withstand voltage | 4 kV (1.2/50 µs) |
| Pollution severity | 2 |
| Galvanic isolation | 3-way isolator, between input ⁄ output ⁄ supply |
|---|---|
| Insulation voltage | 2 kV inputs / outputs / power supply |
| Surge voltage category | III |
Temperatures
| Humidity | 5...95 %, no condensation |
|---|---|
| Operating temperature, min. | -20 °C |
| Storage temperature, min. | -40 °C |
| Storage temperature | -40 °C...85 °C |
| Operating temperature, max. | 60 °C |
|---|---|
| Storage temperature, max. | 85 °C |
| Operating temperature | -20 °C...60 °C |
Ratings Iecex/Atex/Cul
| Certificate no. (cULus) | E366074 |
|---|
