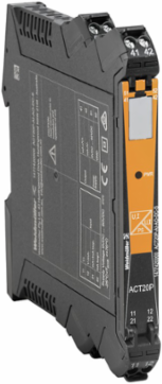

Weidmuller 1477420000 Signal Converter Isolator, Universal, 2 kV, 0.492 Inch Width, 1 Input/Output
- MPN: 1477420000
- PPN: WDM-1477420000
CAD
$534.21
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Signal converter/isolator, universal, Input : I/U universal, Output : I/U universal
Documentation & Downloads
Specifications
General Data

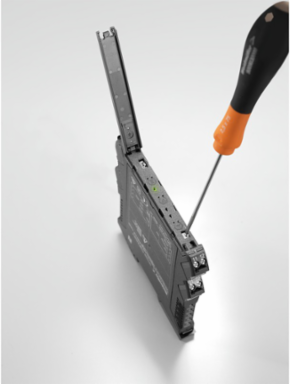

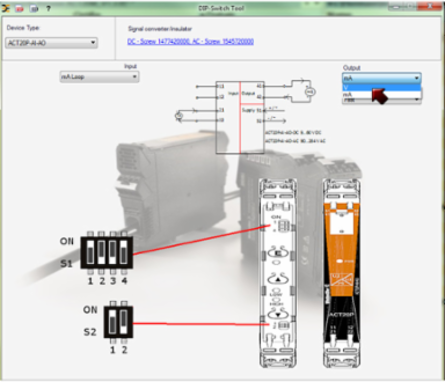

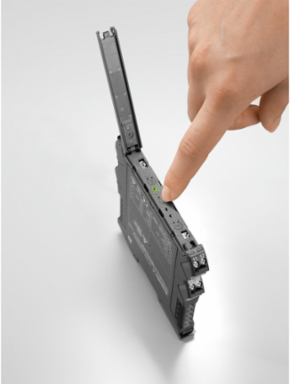

| Configuration | DIP switch, Keys and LED display, with reference voltage/current sources |
|---|---|
| Linearity | < ± 0.1 % of signal range, Typ. ± 0.05 % of signal range |
| Power consumption, typ. | 3 W |
| Step response time | 350 ms |
| Voltage supply | 12...60 V DC |
| Galvanic isolation | 3-way isolator, between input ⁄ output ⁄ supply |
|---|---|
| Long-term drift | 0.1 % / 10.000 h |
| Rail | TS 35 |
| Temperature coefficient | < 0.05 % / °C |
Approvals
| ROHS | Conform |
|---|

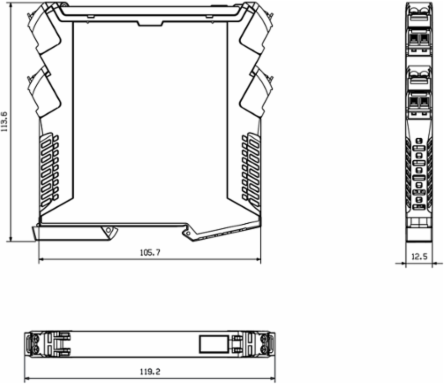

Dimensions And Weights
| Width | 12.5 mm |
|---|---|
| Height | 119.2 mm |
| Depth | 113.7 mm |
| Weight | 80 g |
| Width (inches) | 0.492 inch |
|---|---|
| Height (inches) | 4.693 inch |
| Depth (inches) | 4.476 inch |
| Net weight | 150 g |
Connection Data
| Type of connection | Screw connection |
|---|---|
| Tightening torque, max. | 0.6 Nm |
| Clamping range, min. | 0.5 mm² |
| Wire connection cross section AWG, min. | AWG 26 |
| Tightening torque, min. | 0.4 Nm |
|---|---|
| Clamping range, rated connection | 1.5 mm² |
| Clamping range, max. | 2.5 mm² |
| Wire connection cross section AWG, max. | AWG 12 |
Input
| Number of inputs | 1 |
|---|---|
| Input voltage | configurable, 0-11 V (min. measurement range 2 V) |
| Input current | configurable, 0-22 mA (min. measurement range 4 mA) |
| Resolution | 3.5 µA / 1.76 mV per bit |
| Sensor supply | 24 V DC |
|---|---|
| Input resistance, voltage | ≥ 1 MΩ |
| Input resistance, current | 100 Ω |
Classifications
| ETIM 6.0 | EC002653 |
|---|---|
| eClass 9.0 | 27-21-01-20 |
| eClass 10.0 | 27-21-01-20 |
| ETIM 7.0 | EC002653 |
|---|---|
| eClass 9.1 | 27-21-01-20 |
Output
| Number of outputs | 1 |
|---|---|
| Output current | Adjustable, 0...22 mA, Output range, min, 4 mA |
| load impedance current | ≤ 1kΩ |
| Output voltage, note | Adjustable, 0...11 V, Output range, min, 2 V |
|---|---|
| load impedance voltage | ≥ 500 kΩ |
| Offset voltage | ≤ 20 mV |
Environmental Product Compliance
| REACH SVHC | Lead 7439-92-1 |
|---|
Insulation Coordination
| EMC standards | IEC 61326-1 |
|---|---|
| Impulse withstand voltage | 4 kV (1.2/50 µs) |
| Pollution severity | 2 |
| Galvanic isolation | 3-way isolator, between input ⁄ output ⁄ supply |
|---|---|
| Insulation voltage | 2 kV inputs / outputs |
| Surge voltage category | III |
Temperatures
| Humidity | 10…90 %, no condensation |
|---|---|
| Operating temperature, min. | -20 °C |
| Storage temperature, min. | -25 °C |
| Storage temperature | -25 °C...70 °C |
| Operating temperature, max. | 60 °C |
|---|---|
| Storage temperature, max. | 70 °C |
| Operating temperature | -20 °C...60 °C |
