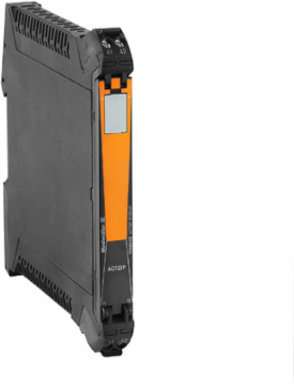

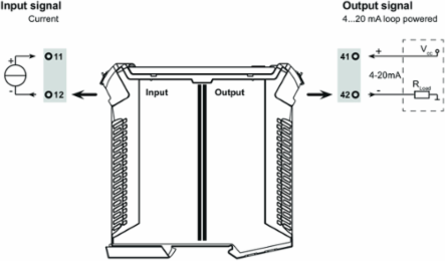

Weidmuller 7760054119 Signal Converter Isolator, 4-20 mA Input/Output, Size 4.614 Inch x 0.492 Inch
- MPN: 7760054119
- PPN: WDM-7760054119
CAD
$295.97
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Signal converter/isolator, Output current loop powered, Input : 4-20 mA, Output : 4-20 mA
Documentation & Downloads
Specifications
General Data
| Accuracy | < 0.1 % of end value |
|---|---|
| Galvanic isolation | 2-way isolator |
| Step response time | ≤ 2 ms |
| Voltage supply | via output current loop, min. 12 V DC/ max. 30 V DC |
| Configuration | none |
|---|---|
| Rail | TS 35 |
| Temperature coefficient | ≤ 100 ppm/K |
Approvals
| Approvals | EAC |
|---|

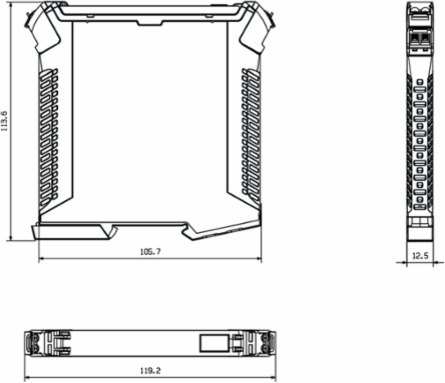

Dimensions And Weights
| Width | 12.5 mm |
|---|---|
| Height | 117.2 mm |
| Depth | 114 mm |
| Weight | 126 g |
| Width (inches) | 0.492 inch |
|---|---|
| Height (inches) | 4.614 inch |
| Depth (inches) | 4.488 inch |
| Net weight | 100 g |
Connection Data
| Type of connection | Screw connection |
|---|---|
| Tightening torque, max. | 0.6 Nm |
| Clamping range, min. | 0.5 mm² |
| Wire connection cross section AWG, min. | AWG 26 |
| Tightening torque, min. | 0.4 Nm |
|---|---|
| Clamping range, rated connection | 2.5 mm² |
| Clamping range, max. | 2.5 mm² |
| Wire connection cross section AWG, max. | AWG 12 |
Input
| Number of inputs | 1 |
|---|---|
| Input current | 4…20mA |
| Sensor | Current source |
|---|---|
| Voltage drop, current input | < 3 V |
Classifications
| ETIM 6.0 | EC002475 |
|---|---|
| eClass 9.0 | 27-21-01-23 |
| eClass 10.0 | 27-21-01-23 |
| ETIM 7.0 | EC002475 |
|---|---|
| eClass 9.1 | 27-21-01-23 |
Output
| Number of outputs | 1 |
|---|---|
| load impedance current | ≤ 600 Ω |
| Output current | 4...20 mA, loop-powered |
|---|
Product Information
| Product information | The ACT20P-CIX-CO-OLP-S single-channel fixed passive isolator isolates analogue standard current source signals. An analogue input current signal is converted linear and galvanic isolated into an analogue output current signal. The device is powered via the output current loop. Features 2-way galvanic isolation between input and output. |
|---|
Environmental Product Compliance
| REACH SVHC | Lead 7439-92-1 |
|---|
Insulation Coordination
| EMC standards | EN 61010-1:2011, UL 61010-1, IEC61000-6-2, IEC 61000-6-4 |
|---|---|
| Impulse withstand voltage | 4 kV (1.2/50 µs) |
| Pollution severity | 2 |
| Surge voltage category | III |
| Galvanic isolation | 2-way isolator |
|---|---|
| Insulation voltage | 2 kV inputs / outputs |
| Rated voltage | 300 V |
Temperatures
| Humidity | 5...95 %, no condensation |
|---|---|
| Operating temperature, min. | -20 °C |
| Storage temperature, min. | -40 °C |
| Ambient temperature | -20 °C...+60 °C |
| Operating temperature, max. | 60 °C |
|---|---|
| Storage temperature, max. | 85 °C |
| Operating temperature | -20 °C...60 °C |
| Storage temperature | -40 °C...85 °C |
