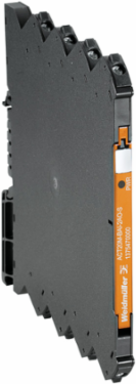

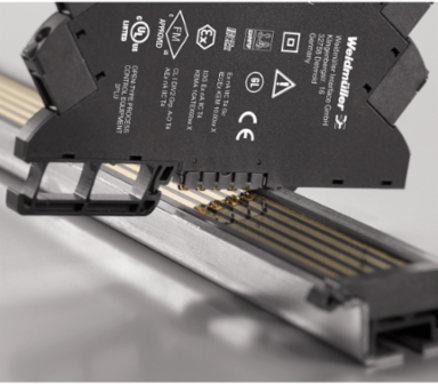

Weidmuller 1375470000 Configurable Signal Duplicator/Isolator, 2 Outputs, 0.24 Inch Width
- MPN: 1375470000
- PPN: WDM-1375470000
CAD
$522.88
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Signal duplicator/isolator, Configurable, Input : I/U/bidirectional I, Output : I/U/bidirectional I
Documentation & Downloads
Specifications
General Data
- Accuracy
- < 0.05 % of measuring range
- Galvanic isolation
- 4-way isolator;
- Power consumption, typ.
- 0.84 W
- Step response time
- ≤ 7 ms, ≤ 100 ms, Configurable
- Voltage supply
- 24 V DC ± 30 %

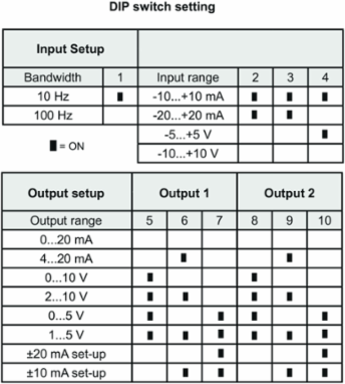

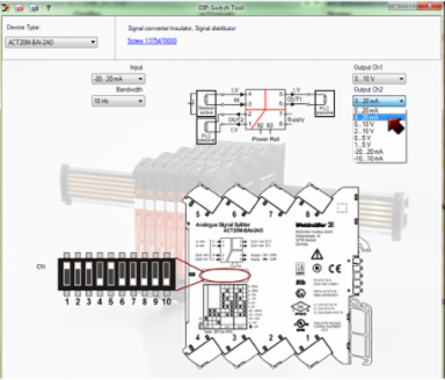

ConfigurationDIP switch
Power consumption, max.1.2 W
RailTS 35
Temperature coefficient< 0.01% of span/°C (TU)
Approvals
- Approvals
- CULUS, DETNORVER, DNV GL, EAC, FMEX, IECEXKEM, KEMAATEX
- UL File Number Search
- E337701
ROHSConform
Dimensions And Weights
- Width
- 6.1 mm
- Height
- 112.5 mm
- Depth
- 114.3 mm
- Net weight
- 80 g
Width (inches)0.24 inch
Height (inches)4.429 inch
Depth (inches)4.5 inch
Connection Data
- Type of connection
- Screw connection
- Tightening torque, max.
- 0.6 Nm
- Clamping range, min.
- 0.5 mm²
- Wire connection cross section AWG, min.
- AWG 30
Tightening torque, min.0.4 Nm
Clamping range, rated connection2.5 mm²
Clamping range, max.2.5 mm²
Wire connection cross section AWG, max.AWG 14
Rated Data Ul
- UL certificate
- E337701.pdf
Input
- Number of inputs
- 1
- Input voltage
- configurable, -5 V…0…+5 V, -10 V…0…+10 V
- Input current
- configurable, -10 mA…0…+10 mA, -20 mA…0…+20 mA
SensorVoltage source, Current source
Input resistance, voltage≥ 1 MΩ
Voltage drop, current input1 V at 20 mA
Classifications
- ETIM 6.0
- EC002653
- eClass 9.0
- 27-21-01-20
- eClass 10.0
- 27-21-01-20
ETIM 7.0EC002653
eClass 9.127-21-01-20
Output
- Number of outputs
- 2
- Output current

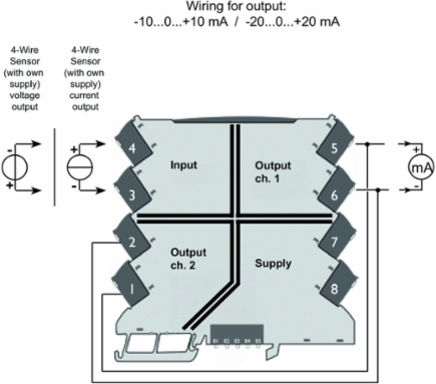

- configurable, 0...20 mA, 4...20 mA, 1 channel -10...0...+10 mA, 1 channel -20...0...+20 mA
- load impedance voltage
- ≥ 10 kΩ
Output voltage, noteconfigurable, 0(2)...10 V, 0(1)...5 V
Cut-off frequency (-3 dB)≥ 100 Hz, 10 Hz
load impedance current< 300 Ω, per channel
Product Information
- Product information

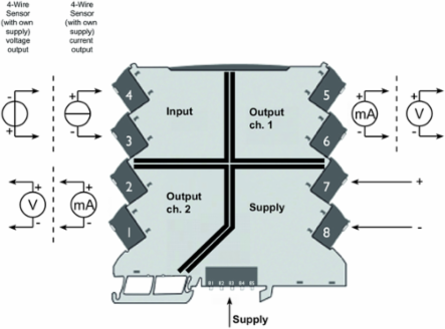

- The configurable DC-Converter ACT20M-BAI-AO-S separates and converts standard analogue signals. An analogue input signal is converted linear and galvanic isolated into an analogue output signal. The power supply is galvanically isolated from input and output and happens via a direct wiring or the Weidmüller DIN Rail Bus (3-way isolation).The configurable DC-Converter ACT20M-BAI-2AO-S provides the same functionality, but has two galvanically separated outputs (4-way split).
Environmental Product Compliance
- REACH SVHC
- Lead 7439-92-1
Data For Ex Applications (Atex)
- Marking
- II 3 G Ex nA IIC T4 Gc
Insulation Coordination
- EMC standards
- IEC 61326-1, NE 21
- Insulation voltage
- 2.5 kVeff /1 min.
- Rated voltage
- 300 Veff
Galvanic isolation4-way isolator;
Pollution severity2
Surge voltage categoryII
Temperatures
- Humidity
- 40 °C / 93 % rel. humidity, no condensation
- Operating temperature, min.
- -25 °C
- Storage temperature, min.
- -40 °C
- Ambient temperature
- -25 °C...+70 °C
Operating temperature, max.70 °C
Storage temperature, max.85 °C
Operating temperature-25 °C...70 °C
Storage temperature-40 °C...85 °C
Ratings Iecex/Atex/Cul
- Certificate No. (ATEX)
- KEMA10ATEX0183X
- Certificate no. (cULus)
- E337701
Certificate No. (IECEX)IECEXKEM10.0090X
