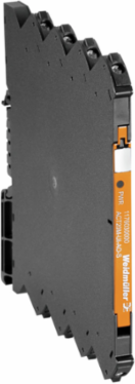

Weidmuller 1176050000 ACT20M 2-Channel Signal Converter, Input/Output 4-20 mA, Height 4.43 Inch

MPN: 1176050000
PPN: WDM-1176050000

$523.18

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

Signal converter/insulator, Output current loop powered, 2-channel, Input : 4-20 mA, Output : 4-20 mA

Documentation & Downloads

Specifications

General Data

Accuracy	< 0.05 % of measuring range
Galvanic isolation	2-way isolator
Rail	TS 35
Temperature coefficient	≤± 0.07 µA x (Δ °C x V supply) @ Tamb < 25 °C, ≤±0.02 µA x (Δ °C x V supply) @ Tamb > 25 °C

Configuration	none
Power consumption, max.	50 mW per channel
Step response time	≤ 5 ms
Voltage supply	Output loop powered

Approvals

Approvals	CULUS, DETNORVER, DNV GL, EAC, FMEX, IECEXKEM, KEMAATEX
UL File Number Search	E337701

ROHS	Conform

Dimensions And Weights

Width	6.1 mm
Height	112.5 mm
Depth	114.3 mm
Net weight	96 g

Width (inches)	0.24 inch
Height (inches)	4.429 inch
Depth (inches)	4.5 inch

Connection Data

Type of connection	Screw connection
Tightening torque, max.	0.6 Nm
Clamping range, min.	0.5 mm²
Wire connection cross section AWG, min.	AWG 30

Tightening torque, min.	0.4 Nm
Clamping range, rated connection	2.5 mm²
Clamping range, max.	2.5 mm²
Wire connection cross section AWG, max.	AWG 14

Rated Data Ul

UL certificate	E337701.pdf

Tender Specification Sheets

Long specification

Standard signal isolating amplifier2-channel signal isolating amplifier in 6.1 mm width output-loop powered,for transmitting and isolating analogue DC current signals 0/4...20 mA.Add-on housing for TS35 rail mountingDimensions: L/W/H 114.3/ 6.1/ 112.5 mmScrew connection / Nominal cross-section 2.5 mm2Protection degree: IP 20 Input 0/4...20 mAOutput 0/4...20 mALoad resistance < 600 OhmTransmission error < 0,1 % v. E. Limit frequency 100 HzAuxiliary power 0/4...20 mA output current loop Power loss approx. 1.2 W Ambient temperature range -25 °C...+70 °C Isolation EN 61010-1, 2-way isolation up to 2.5 kV AC/DCTest voltage 2.5 kV input against output against auxiliary powerRated voltage 300 V AC/DC at overvoltage category II and pollution degree 2Approvals cULus, FM Div2, ATEX Zone2, DNV, GLType ACT20M-2CI-2CO-OLP-S

Short specification	Standard signal isolating amplifier2-channel signal isolating amplifier in 6.1 mm width with output current loop feed,for transmitting and isolating analogue DC current signals from 0/4 to 20 mA

Input

Number of inputs	2
Sensor supply	6…35 V (@ 20 mA)
Voltage drop, current input	Typical 2.5 V

Sensor	2-wire transmitter (without own power supply)
Input current	4...20 mA

Classifications

ETIM 6.0	EC002653
eClass 9.0	27-21-01-20
eClass 10.0	27-21-01-20

ETIM 7.0	EC002653
eClass 9.1	27-21-01-20

Output

Number of outputs	2
Cut-off frequency (-3 dB)	100 Hz
Supply voltage (output)	6…35 V

Output current	4...20 mA
load impedance current	≤600 Ω (channel 1 + 2), @ max 23mA

Product Information

Product information

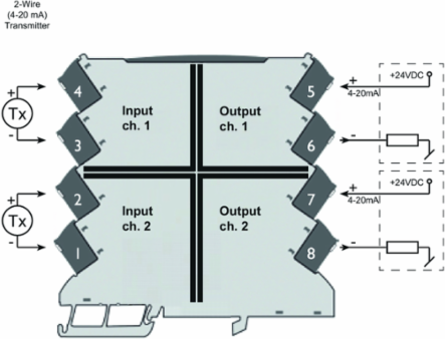

The passive isolator ACT20M-CI-CO-OLP-S isolates standard analogue current signals. An analogue input current signal is linearly converted into an analogue output current signal and galvanically isolated. Power is supplied through the output measurement circuit (output loop-powered). The passive isolator ACT20M-2CI-2CO-OLP-S offers the same functionality, but has two galvanically isolated channels..

Environmental Product Compliance

REACH SVHC	Lead 7439-92-1

Data For Ex Applications (Atex)

Marking	II 3 G Ex nA IIC T4 Gc

Insulation Coordination

EMC standards	IEC 61326-1, NE 21
Insulation voltage	2.5 kVeff /1 min.
Rated voltage	300 Veff

Galvanic isolation	2-way isolator
Pollution severity	2
Surge voltage category	II

Temperatures

Humidity	40 °C / 93 % rel. humidity, no condensation
Operating temperature, min.	-25 °C
Storage temperature, min.	-40 °C
Ambient temperature	-25 °C...+70 °C
