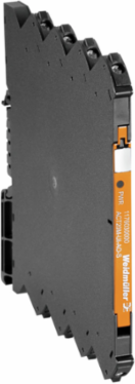

Weidmuller 1175990000 Signal Duplicator/Isolator, 2 Outputs, 4-20 mA, 0.24 Inch Width
- MPN: 1175990000
- PPN: WDM-1175990000
CAD
$473.09
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Signal duplicator/isolator, Input : 4-20 mA, Output : 2 x 4-20 mA
Documentation & Downloads
Specifications
General Data
- Accuracy
- < 0.05 % of measuring range
- Galvanic isolation
- 3-way isolator
- Power consumption, typ.
- 0.53 W
- Step response time
- ≤ 7 ms
- Voltage supply
- 24 V DC ± 30 %
Configurationnone
Power consumption, max.0.75 W
RailTS 35
Temperature coefficient≤ 0.01 % / °C
Probability Of Failure
- MTBF
- 219 Years
Approvals
- Approvals
- CE, CULUS, DETNORVER, DNV GL, EAC, FMEX, IECEXKEM, KEMAATEX
- UL File Number Search
- E337701
ROHSConform
Dimensions And Weights
- Width
- 6.1 mm
- Height
- 112.5 mm
- Depth
- 114.3 mm
- Net weight
- 83.6 g
Width (inches)0.24 inch
Height (inches)4.429 inch
Depth (inches)4.5 inch
Connection Data
- Type of connection
- Screw connection
- Tightening torque, max.
- 0.6 Nm
- Clamping range, min.
- 0.5 mm²
- Wire connection cross section AWG, min.
- AWG 30
Tightening torque, min.0.4 Nm
Clamping range, rated connection2.5 mm²
Clamping range, max.2.5 mm²
Wire connection cross section AWG, max.AWG 14
Rated Data Ul
- UL certificate
- E337701.pdf
Tender Specification Sheets
- Long specification
- Standard signal splitter1-channel signal splitter in 6.1 mm width with external power supply,to transmit, isolate and split analogue DC current signals 0/4...20 mAAdd-on housing for TS35 rail mountingDimensions: L/W/H 114.3/ 6.1/ 112.5 mmScrew connection / Nominal cross-section 2.5 mm2Protection degree: IP 20 Input 0/4...20 mAOutput 2 x 0/4...20 mA Load resistance < 300 Ohm/ AusgangTransmission error < 0,05 % v. E. Limit frequency 100 Hz Auxiliary power 24 VDC +/- 30 %Power loss approx. 0.8 WAmbient temperature range -25 °C...+70 °C Isolation EN 61010-1, 3-way isolation up to 2.5 kV AC/DC of all circuits against each otherTest voltage 2.5 kV input against output against auxiliary powerRated voltage 300 V AC/DC at overvoltage category II and pollution degree 2Approvals cULus, FM Div2, ATEX Zone2, DNV, GLType ACT20M-CI-2CO-S
Short specificationStandard signal splitter1-channel signal splitter in 6.1 mm width with external power supply,to transmit, isolate and split analogue DC current signals 0/4 to 20 mA
Input
- Number of inputs
- 1
- Input current
- 0...20 mA, 4…20mA
- Input resistance, current
- 70 Ω
SensorCurrent source, Sensor with own supply, 4-wire sensor
Voltage drop, current input< 1.5 V
Classifications
- ETIM 6.0
- EC002653
- eClass 9.0
- 27-21-01-20
- eClass 10.0
- 27-21-01-20
ETIM 7.0EC002653
eClass 9.127-21-01-20
Output
- Number of outputs
- 2
- Cut-off frequency (-3 dB)
- 100 Hz
- load impedance current
- < 300 Ω, per channel, @ max 23mA
Output current0...20 mA, 4...20 mA
load impedance voltage≥ 10 kΩ
Product Information
- Product information

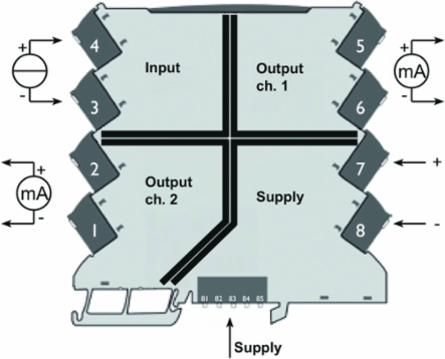

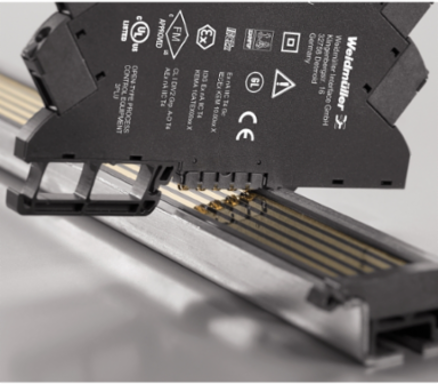

- The non-adjustable DC isolating amplifier ACT20M-CI-CO-S isolates analogue standard current signals. An analogue input current signal is linearly converted to an analogue output current signal and is galvanically isolated. The power supply is galvanically isolated from the input and output (3-way isolation) by means of direct wiring or the Weidmüller rail bus. The non-adjustable DC isolation amplifier ACT20M CI-2CO-S offers the same functionality, but has 2 galvanically isolated outputs (4-way isolation).
Environmental Product Compliance
- REACH SVHC
- Lead 7439-92-1
Data For Ex Applications (Atex)
- Marking
- II 3 G Ex nA IIC T4 Gc
Insulation Coordination
- EMC standards
- IEC 61326-1, NE 21
- Insulation voltage
- 2.5 kVeff /1 min.
- Rated voltage
- 300 Veff
Galvanic isolation3-way isolator
Pollution severity2
Surge voltage categoryII
Temperatures
- Humidity
- 95 %, no condensation
- Operating temperature, min.
- -25 °C
- Storage temperature, min.
- -40 °C
- Ambient temperature
- -25 °C...+70 °C
Operating temperature, max.70 °C
Storage temperature, max.85 °C
Operating temperature-25 °C...70 °C
Storage temperature-40 °C...85 °C
Ratings Iecex/Atex/Cul
- Certificate No. (ATEX)
- KEMA10ATEX0183X
- Certificate no. (cULus)
- E337701
Certificate No. (IECEX)IECEXKEM10.0090X
