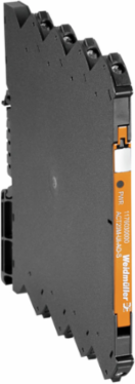

Weidmuller 1176010000 ACT20M Signal Converter/Insulator, 1-Channel, 6.1mm Width, 0-20 mA Input
- MPN: 1176010000
- PPN: WDM-1176010000
CAD
$331.04
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Signal converter/insulator, Configurable, without sensor supply, Input : I / U, Output : I / U
Documentation & Downloads
Specifications
General Data
- Accuracy
- < 0.2 % of measuring range
- Galvanic isolation
- 3-way isolator
- Power consumption, typ.
- 0.56 W
- Step response time
- ≤ 7 ms
- Voltage supply
- 24 V DC ± 30 %

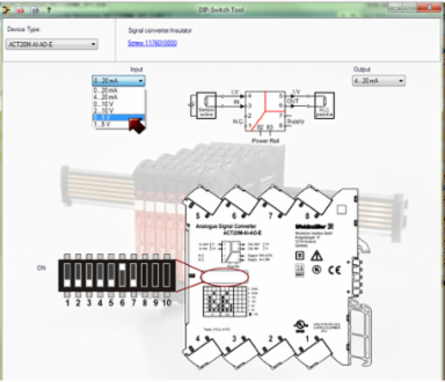

ConfigurationDIP switch
Power consumption, max.0.8 W
RailTS 35
Temperature coefficient≤ 0.015 % / °C
Probability Of Failure
- MTBF
- 249 Years
Approvals
- Approvals
- CE, CULUS, DETNORVER, DNV GL, EAC
- UL File Number Search
- E337701
ROHSConform
Dimensions And Weights
- Width
- 6.1 mm
- Height
- 112.5 mm
- Depth
- 114.3 mm
- Net weight
- 83.5 g
Width (inches)0.24 inch
Height (inches)4.429 inch
Depth (inches)4.5 inch
Connection Data
- Type of connection
- Screw connection
- Tightening torque, max.
- 0.6 Nm
- Clamping range, min.
- 0.5 mm²
- Wire connection cross section AWG, min.
- AWG 30
Tightening torque, min.0.4 Nm
Clamping range, rated connection2.5 mm²
Clamping range, max.2.5 mm²
Wire connection cross section AWG, max.AWG 14
Rated Data Ul
- UL certificate
- E337701.pdf
Tender Specification Sheets
- Long specification
- Universal standard signal isolating amplifier1-channel signal isolating amplifier in 6.1 mm width with external power supply,for transmitting and isolating analogue DC current signals 0/4 to 20 mA and voltage signals 0/2 to 10 V // 0/1 to 5 V. Input and output signals can be configured with DIP switches.Add-on housing for TS35 rail mounting Dimensions: L/W/H 114.3/ 6.1/ 112.5 mm Screw connection / Nominal cross-section 2.5 mm2Protection degree: IP 20 Input 0/4...20 mA 0/2...10 V or 0/1...10 V Isolation EN 61010-1, 3-way isolation up to 2.5 kV AC/DC of all circuits against each otherTest voltage 2.5 kV input against output against auxiliary powerRated voltage 300 V AC/DC at overvoltage category II and pollution degree 2 Approvals cULus, DNV, GL Output 0/4...20 mA 0/2...10 V or 0/1...5 V Load resistance < 600 Ohm/ Strom/> 10 kOhm/ voltageTransmission error < 0,2 % v. E. Limit frequency 100 HzAuxiliary power 24 VDC +/- 30 % Power loss approx. 0.8 W Ambient temperature range 0 °C...+70 °C Type ACT20M-AI-AO-E-S

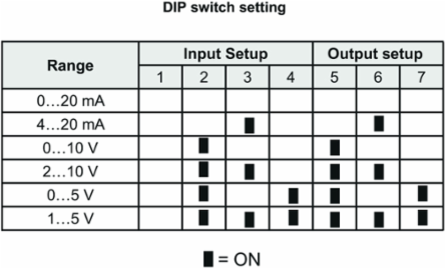

Short specificationUniversal standard signal isolating amplifier1-channel signal isolating amplifier in 6.1 mm width with external power supply,for transmitting and isolating analogue DC current signals 0/4...20 mA and voltage signals0/2...10V // 0/1...5 V. I/O signals are configured with DIP switches.
Input
- Number of inputs
- 1
- Input voltage
- configurable, 0(2)…10 V, 0(1)…5 V
- Input current
- configurable, 0...20 mA, 4…20mA
- Input resistance, current
- 70 Ω
- Voltage drop
- <1,5 V
SensorVoltage source, Current source
Input resistance, voltage>500 kΩ
Voltage drop, current input<1,5 V
Input frequency100 Hz
Classifications
- ETIM 6.0
- EC002653
- eClass 9.0
- 27-21-01-20
- eClass 10.0
- 27-21-01-20
ETIM 7.0EC002653
eClass 9.127-21-01-20
Output
- Number of outputs
- 1
- Output current
- configurable, 0...20 mA, 4...20 mA
- load impedance voltage
- ≥ 10 kΩ
Output voltage, noteconfigurable, 0(2)...10 V, 0(1)...5 V
Cut-off frequency (-3 dB)100 Hz
load impedance current≤ 600 Ω, @ max 23mA
Product Information
- Product information

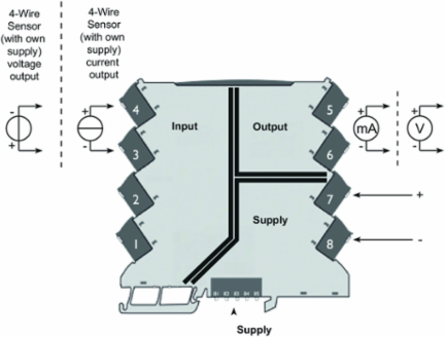

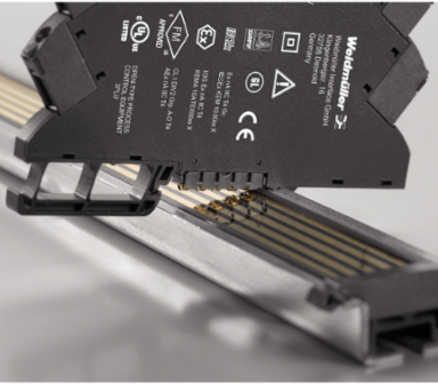

- The configurable DC isolating amplifier ACT20M-AI-AO-E-S isolates and converts analogue signals. An analogue input signal is linearly converted into an analogue output signal and galvanically isolated. The power supply is galvanically isolated from the input and output (3-way isolation) by means of direct wiring or the Weidmüller rail bus.
Environmental Product Compliance
- REACH SVHC
- Lead 7439-92-1
Insulation Coordination
- EMC standards
- IEC 61326-1, NE 21
- Insulation voltage
- 2.5 kVeff /1 min.
- Rated voltage
- 300 Veff
Galvanic isolation3-way isolator
Pollution severity2
Surge voltage categoryII
Temperatures
- Humidity
- 40 °C / 93 % rel. humidity, no condensation
- Operating temperature, min.
- 0 °C
- Storage temperature, min.
- -40 °C
- Ambient temperature
- -25 °C...+70 °C
Operating temperature, max.70 °C
Storage temperature, max.85 °C
Operating temperature0 °C...70 °C
Storage temperature-40 °C...85 °C
Ratings Iecex/Atex/Cul
- Certificate no. (cULus)
- E337701
