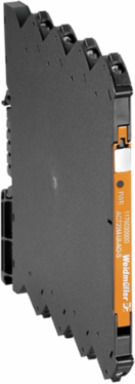

Weidmuller 1176040000 Signal Isolator 1-Channel 4-20 mA Output with 6.1 mm Width, 85 C Max Temperature
- MPN: 1176040000
- PPN: WDM-1176040000
CAD
$347.96
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Signal converter/insulator, Output current loop powered, 1-channel, Input : 4-20 mA, Output : 4-20 mA
Documentation & Downloads
Specifications
General Data
- Accuracy
- < 0.05 % of measuring range
- Galvanic isolation
- 2-way isolator
- Rail
- TS 35
- Temperature coefficient
- ≤±0.02 µA x (Δ °C x V supply) @ Tamb > 25 °C
Configurationnone
Power consumption, max.0.5 W
Step response time≤ 5 ms
Voltage supplyOutput loop powered
Approvals
- Approvals
- CULUS, DETNORVER, DNV GL, EAC, FMEX, IECEXKEM, KEMAATEX
- UL File Number Search
- E337701
ROHSConform
Dimensions And Weights
- Width
- 6.1 mm
- Height
- 112.5 mm
- Depth
- 114.3 mm
- Net weight
- 80 g
Width (inches)0.24 inch
Height (inches)4.429 inch
Depth (inches)4.5 inch
Connection Data
- Type of connection
- Screw connection
- Tightening torque, max.
- 0.6 Nm
- Clamping range, min.
- 0.5 mm²
- Wire connection cross section AWG, min.
- AWG 30
Tightening torque, min.0.4 Nm
Clamping range, rated connection2.5 mm²
Clamping range, max.2.5 mm²
Wire connection cross section AWG, max.AWG 14
Rated Data Ul
- UL certificate
- E337701.pdf
Tender Specification Sheets
- Long specification
- Standard signal isolating amplifier1-channel signal isolating amplifier in 6.1 mm width output-loop powered,for transmitting and isolating analogue DC current signals 0/4...20 mA.Add-on housing for TS35 rail mountingDimensions: L/W/H 114.3/ 6.1/ 112.5 mmScrew connection / Nominal cross-section 2.5 mm2Protection degree: IP 20 Input 0/4...20 mAOutput 0/4...20 mALoad resistance < 600 OhmTransmission error < 0,1 % v. E. Limit frequency 100 HzAuxiliary power 0/4...20 mA output current loopPower loss approx. 0.9 WAmbient temperature range -25 °C...+70 °C Isolation EN 61010-1, 2-way isolation up to 2.5 kV AC/DCTest voltage 2.5 kV input against output against auxiliary powerRated voltage 300 V AC/DC at overvoltage category II and pollution degree 2Approvals cULus, FM Div2, ATEX Zone2, DNV, GLType ACT20M-CI-CO-OLP-S
Short specificationStandard signal isolating amplifier1-channel signal isolating amplifier in 6.1 mm width with output current loop feed,for transmitting and isolating analogue DC current signals from 0/4 to 20 mA.
Input
- Number of inputs
- 1
- Sensor supply
- 6…35 V (@ 20 mA)
- Voltage drop, current input
- Typical 2.5 V
Sensor2-wire transmitter (without own power supply)
Input current4…20mA
Classifications
- ETIM 6.0
- EC002653
- eClass 9.0
- 27-21-01-20
- eClass 10.0
- 27-21-01-20
ETIM 7.0EC002653
eClass 9.127-21-01-20
Output
- Number of outputs
- 1
- Cut-off frequency (-3 dB)
- 100 Hz
- Supply voltage (output)
- 6…35 V
Output current4...20 mA
load impedance current≤600 Ω (channel 1 + 2), @ max 23mA
Product Information
- Product information

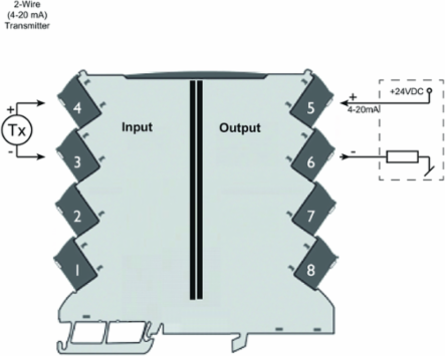

- The passive isolator ACT20M-CI-CO-OLP-S isolates standard analogue current signals. An analogue input current signal is linearly converted into an analogue output current signal and is galvanically isolated. Power is supplied through the output measuring circuit (output loop-powered).
Environmental Product Compliance
- REACH SVHC
- Lead 7439-92-1
Data For Ex Applications (Atex)
- Marking
- II 3 G Ex nA IIC T4 Gc
Insulation Coordination
- EMC standards
- IEC 61326-1, NE 21
- Insulation voltage
- 2.5 kVeff /1 min.
- Rated voltage
- 300 Veff
Galvanic isolation2-way isolator
Pollution severity2
Surge voltage categoryII
Temperatures
- Humidity
- 40 °C / 93 % rel. humidity, no condensation
- Operating temperature, min.
- -25 °C
- Storage temperature, min.
- -40 °C
- Ambient temperature
- -25 °C...+70 °C
Operating temperature, max.70 °C
Storage temperature, max.85 °C
Operating temperature-25 °C...70 °C
Storage temperature-40 °C...85 °C
Ratings Iecex/Atex/Cul
- Certificate No. (ATEX)
- KEMA10ATEX0183X
- Certificate no. (cULus)
- E337701
Certificate No. (IECEX)IECEXKEM10.0090X
