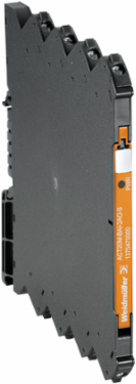

Weidmuller 1435590000 ACT20M Temperature Converter, RTD & Thermocouple Input, 4-20 mA Output, 112.5 mm Height
- MPN: 1435590000
- PPN: WDM-1435590000
CAD
$398.13
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Temperature converter, 2-/3-/4- wire RTD, Thermocouple, Input : Temperature, Output : 4-20 mA, (loop powered)
Documentation & Downloads
Specifications
General Data
- Accuracy
- absolute accuracy: < ±0.05 % of the measurement range, RTD (PT100) Basic accuracy: < ±0.1 °C of the measurement range, TC (J,K) Basic accuracy: < ±0.5 °C of the measurement range
- Configuration

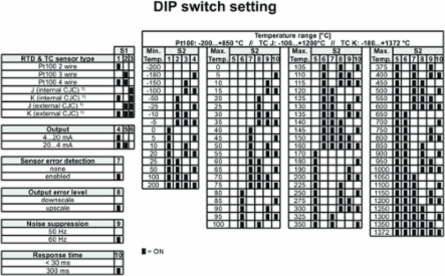

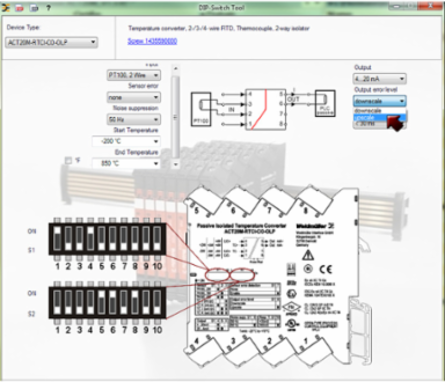

- DIP switch
- Power consumption, max.
- 0.8 W
- Rail
- TS 35
- Temperature coefficient
- RTD (PT100) ≤0.01 % of the measurement range⁄°C or 0.02 °C ⁄ °C, TC (J,K) 0.1 °C ⁄ °C
Cold-junction compensation error±(2.0 °C + 0.4 °C x Δt) Δt = inside temperature – ambient temperature
Galvanic isolation2-way isolator
Power consumption, typ.0.48 W
Step response time≤ 30 ms, < 300 ms
Voltage supplyOutput loop powered, 6…35 V
Probability Of Failure
- MTBF
- 207 Years
Approvals
- Approvals
- CULUS, DETNORVER, DNV GL, EAC, FMEX, IECEXKEM, KEMAATEX
- UL File Number Search
- E337701
ROHSConform
Dimensions And Weights
- Width
- 6.1 mm
- Height
- 112.5 mm
- Depth
- 114.3 mm
- Net weight
- 80 g
Width (inches)0.24 inch
Height (inches)4.429 inch
Depth (inches)4.5 inch
Connection Data
- Type of connection
- Screw connection
- Tightening torque, max.
- 0.6 Nm
- Clamping range, min.
- 0.5 mm²
- Wire connection cross section AWG, min.
- AWG 30
Tightening torque, min.0.4 Nm
Clamping range, rated connection2.5 mm²
Clamping range, max.2.5 mm²
Wire connection cross section AWG, max.AWG 14
Rated Data Ul
- UL certificate
- E337701.pdf
Input
- Number of inputs
- 1
- Influence of the sensor cable resistance
- < 0.002 Ω⁄Ω
- Line resistance in measuring circuit
- 50 Ω@ RTD (Pt100), 10 kΩ @ TC (J, K)
SensorPT100 / 2-/3-/4-wire, Thermocouple acc. to IEC 584, type: J, Thermocouple acc. to IEC 584, type: K
Input measurement rangePT100 -200…+850 °C, Thermocouple type J -100…+1200°C, Thermocouple type K -200…+1370°C
Temperature input rangeConfigurable, min. measurement range 10°C (RTD), min. measurement range 50°C (TC)
Classifications
- ETIM 6.0
- EC002919
- eClass 9.0
- 27-21-01-29
- eClass 10.0
- 27-21-01-29
ETIM 7.0EC002919
eClass 9.127-21-01-29
Output
- Number of outputs
- 1
- Wire break detection
- 3.5 mA ⁄ 23 mA ⁄ none
- Supply voltage (output)
- 16,8 V…31,2 V
Output currentconfigurable, 4...20 mA, 20…4 mA
cold junction compensationconfigurable internal or external cold-junction compensation (thermocouple)
Product Information
- Product information

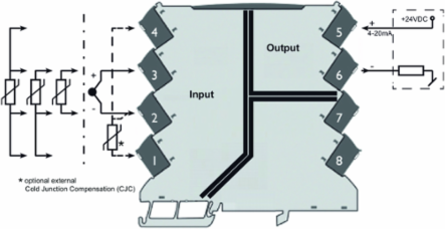

- The ACT20M-RTCI-CO-OLP-S passive configurable temperature transducer isolates and converts analogue signals. An analogue RTD (Type Pt100) or TC (Type J, K) input signal is linearly converted into an analogue output signal and galvanically isolated. Power is supplied through the output measurement circuit (output- loop powered).
Environmental Product Compliance
- REACH SVHC
- Lead 7439-92-1
Data For Ex Applications (Atex)
- Marking
- II 3 G Ex nA IIC T4 Gc
Insulation Coordination
- EMC standards
- IEC 61326-1, NE 21
- Insulation voltage
- 2.5 kVeff /1 min.
- Rated voltage
- 300 Veff
Galvanic isolation2-way isolator
Pollution severity2
Surge voltage categoryII
Temperatures
- Humidity
- 40 °C / 93 % rel. humidity, no condensation
- Storage temperature, min.
- -40 °C
- Storage temperature
- -40 °C...85 °C
Storage temperature, max.85 °C
Ambient temperature-25 °C...+70 °C
Ratings Iecex/Atex/Cul
- Certificate No. (ATEX)
- KEMA10ATEX0183X
- Certificate no. (cULus)
- E337701
Certificate No. (IECEX)IECEXKEM10.0090X
