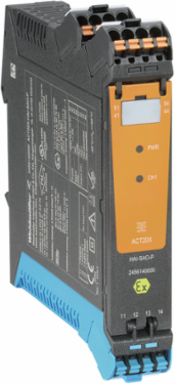

Weidmuller 2456160000 ACT20X Signal Isolating Converter, 4-20 mA, Width 0.886 Inch, Height 5.012 Inch

  • MPN: 2456160000
  • PPN: WDM-2456160000

CAD

$405.27

/ EA

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Description

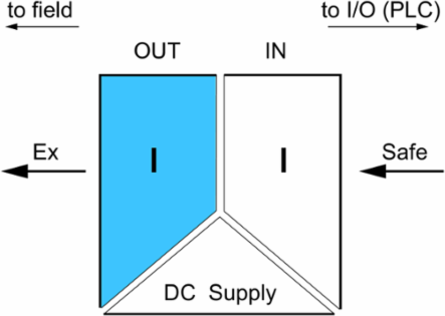

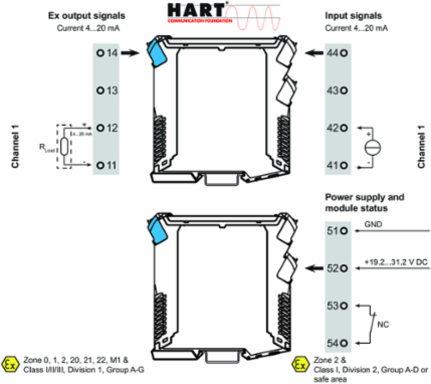

EX signal isolating converter, Safe-input: 4-20mA, Ex output: 4 - 20 mA, 1-channel

Documentation & Downloads

Specifications

Probability Of Failure

MTBF
135 Years
SIL PAPERSIL certificate

Approvals

Approvals
DEKRAATEX, DNV GL, EAC, IECEXDEK
ROHSConform

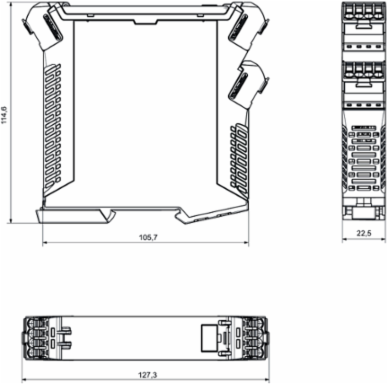

Dimensions And Weights

Width
22.5 mm
Height
127.3 mm
Depth
114.6 mm
Net weight
189 g
Width (inches)0.886 inch
Height (inches)5.012 inch
Depth (inches)4.512 inch

Safety-Related Specifications Low Demand Mode

Average Probability of Failure on Demand (PFD
2.29 x 10-4 (Tproof = 1 year), 4.37 x 10-4 (Tproof = 2 years), 1.06 x 10-4 (Tproof = 5 year)

Connection Data

Type of connection

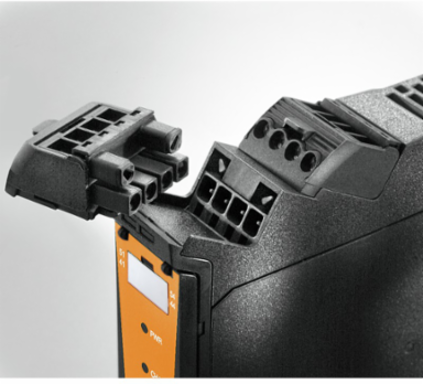

PUSH IN
Wire connection cross section AWG, max.
AWG 14
Wire cross-section, solid, max.
2.5 mm²
Wire connection cross section, finely stranded, max.
2.5 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max.
2.5 mm²
Wire connection cross section AWG, min.AWG 26
Wire cross-section, solid, min.0.2 mm²
Wire connection cross-section, finely stranded, min.0.2 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min.0.2 mm²

Rated Data Ul

UL certificate
E337701.pdf

Safety-Related Basic Specifications

Demand mode
High
Device type
A
Mean Time To Repair (MTTR)
24 h
T
5 Years
Total failure rate for dangerous undetected failures (λ
48 FIT
Total failure rate for safe undetected failures (λ
164 FIT
Probability of outage PFH
4.8 x 10-8 h-1
Description of the "safe state"analogue Output ≤ 3.6 mA or output ≥ 21 mA
Hardware fault tolerance (HFT)0
Safe Failure Fraction (SFF)85 %
Total failure rate for dangerous detected failures (λ127 FIT
Total failure rate for safe detected failures (λ0 FIT
Safety categorySIL 2

Alarm Output

Alarm function
Signal limit exceeded, Line interruption at the input, No supply voltage, Device error
Nominal switching voltage
≤ 125 V AC / 110 V DC (safe area)≤ 32 V AC / 32 V DC (zone 2)
Power rating
≤ 62.5 VA / 32 W (safe area)≤ 16 VA / 32 W (Zone 2)
Switching thresholds
0…29.9 mA (programmable)
TypeRelay, 1 NC (voltage-free)
Continuous current≤ 0,5 A AC / 1 A DC (zone 2)
Hysteresis0.1 mA (switching threshold)

Input

Input current
4…20mA
Voltage drop
< 2 V
Input frequency0,5…2,5 kHz @ 3,5…23 mA bi-directional HART® signal

Classifications

ETIM 6.0
EC002653
eClass 9.0
27-21-01-20
eClass 10.0
27-21-01-20
ETIM 7.0EC002653
eClass 9.127-21-01-90

Output

Type
intrinsically safe circuit
2-wire supply
> 14.5 V @ 20 mA
Residual ripple (current loop)
< 7.5 mVeff
Cut-off frequency (-3 dB)
0.5…2.5 kHz @ 3.5…23 mA bi-directional HART® signal
Influence of load resistance≤ 0.01% of span / 100 Ω
Output signal limit< 28 mA
Output current4…20 mA (max. 23 mA)
load impedance current≤ 725 Ω

Environmental Product Compliance

REACH SVHC
Lead 7439-92-1

Data For Ex Applications (Atex)

Voltage U
28 V DC
Power P
< 650 mW

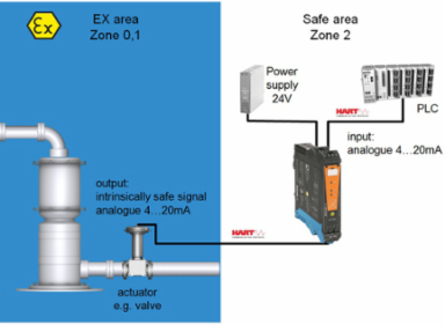

Installation location
Device installed in safe area, zone 2
Current I93 mA
MarkingII (1) G [Ex ia Ga] IIC/IIB/IIA, II (1) D [Ex ia Da] IIIC, I (M1) [Ex ia Ma] I

Insulation Coordination

EMC standards
DIN EN 61326, NE 21
Rated voltage
300 V
Insulation voltage2.6 kV (input / output)

Input Ex

Input current
4…20mA
Output signal in case of wire break
< 1 mA
Voltage drop not powered
< 6 V
Input frequency0,5…2,5 kHz @ 3,5…23 mA bi-directional HART® signal
Voltage drop< 2 V
Voltage drop powered< 2 V

Temperatures

Humidity
0...95 % (no condensation)
Operating temperature, min.
-20 °C
Storage temperature, min.
-20 °C
Storage temperature
-20 °C...85 °C
Operating temperature, max.60 °C
Storage temperature, max.85 °C
Operating temperature-20 °C...60 °C

Ratings Iecex/Atex/Cul

ATEX certificate
11ATEX0164X.pdf
IEC Ex certificateIECEx certification

General Specifications

Configuration

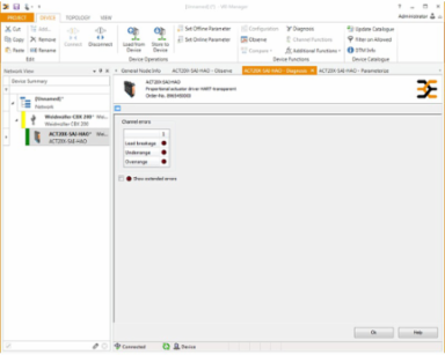

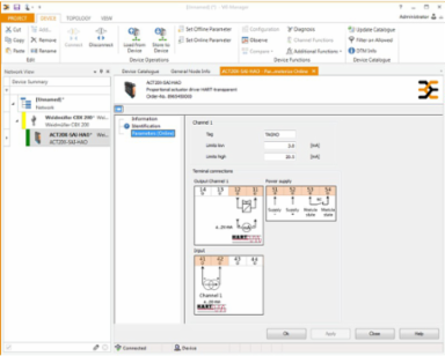

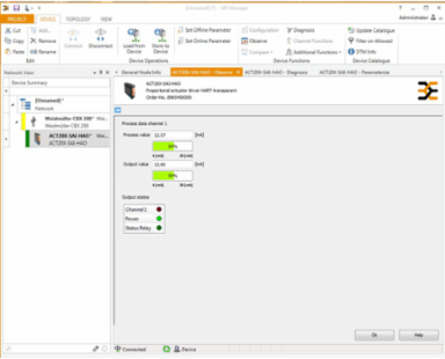

With FDT/DTM software
Type of connection
PUSH IN
Accuracy
< 0.1% span
Step response time
≤ 5 ms
Humidity
0...95 % (no condensation)
Voltage supply19.2…31.2 V DC
Power consumption≤1.8 W
Temperature coefficient< 0.01% of span/°C (TU)
Protection degreeIP20
