Weidmuller

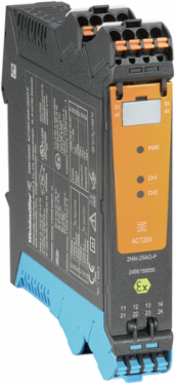

Weidmuller 2456080000 ACT20X Signal Isolating Converter, 2-Channel, 32 mW, 5.012 Inch Height

  • MPN: 2456080000
  • PPN: WDM-2456080000

CAD

$381.18

/ EA

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Description

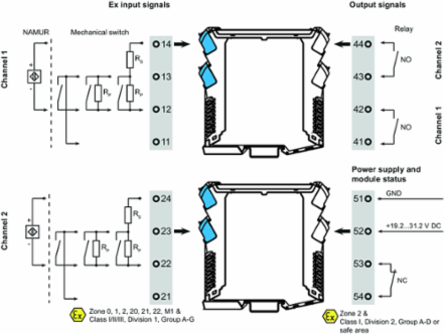

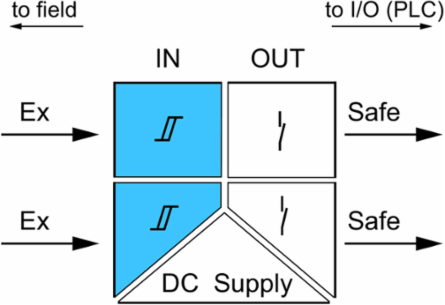

EX signal isolating converter, Ex-input: NAMUR sensor/switch, Safe-output: relay, NO contact, 2-channel

Documentation & Downloads

Specifications

Probability Of Failure

MTBF
207 Years
SIL in compliance with IEC 61508
2
SIL PAPERSIL certificate

Digital Output

Switching capacity
500 VA / 60 W (safe area), 16 VA / 60 W (zone 2)
Nominal switching voltage
≤ 250 V AC / 30 V DC (safe area)≤ 32 V AC / 32 V DC (zone 2)
Function
Output = input, direct or inverse (configurable)
TypeRelay, 1 NC contact, Switching frequency 20 Hz
Continuous current≤ 2 A AC/DC (safe area, Zone 2 area)

Approvals

Approvals
DNV GL, EAC
ROHSConform

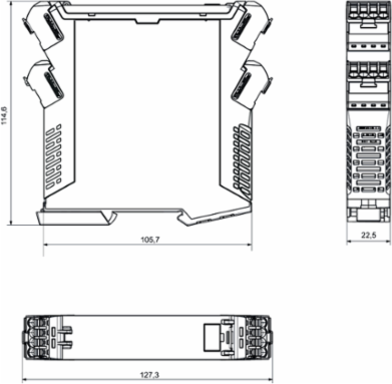

Dimensions And Weights

Width
22.5 mm
Height
127.3 mm
Depth
114.6 mm
Net weight
190 g
Width (inches)0.886 inch
Height (inches)5.012 inch
Depth (inches)4.512 inch

Safety-Related Specifications Low Demand Mode

Average Probability of Failure on Demand (PFD
2.04 x 10-4 (Tproof = 1 year), 4.08 x 10-4 (Tproof = 2 years), 1.02 x 10-4 (Tproof = 5 years)
Safe Failure Fraction (SFF)90 %

Connection Data

Type of connection

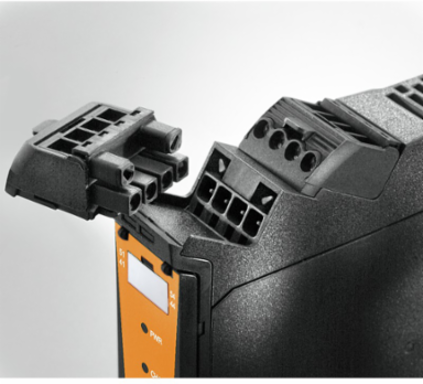

PUSH IN
Wire connection cross section AWG, max.
AWG 14
Wire cross-section, solid, max.
2.5 mm²
Wire connection cross section, finely stranded, max.
2.5 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max.
2.5 mm²
Wire connection cross section AWG, min.AWG 26
Wire cross-section, solid, min.0.2 mm²
Wire connection cross-section, finely stranded, min.0.2 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min.0.2 mm²

Safety-Related Basic Specifications

Demand mode
High
Demand response time
< 10 ms (relay output)
Device type
B
Hardware fault tolerance (HFT)
0
Relay lifetime
100000 times
T
4 Years
Total failure rate for dangerous undetected failures (λ
46 FIT
Total failure rate for safe undetected failures (λ
289 FIT
Probability of outage PFH
4.66 x 10-8 h-1
Demand rate1,000 s
Description of the "safe state"de-energized (relay output)
Diagnostic test interval10 s
Mean Time To Repair (MTTR)8 h
Safe Failure Fraction (SFF)90 %
Total failure rate for dangerous detected failures (λ130 FIT
Total failure rate for safe detected failures (λ0 FIT
Safety categorySIL 2

Alarm Output

Alarm function

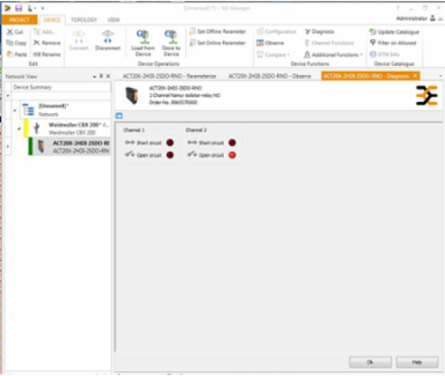

Line interruption at the input, Short circuit at input, No supply voltage, Device error
Nominal switching voltage
≤ 125 V AC / 110 V DC (safe area)≤ 32 V AC / 32 V DC (zone 2)
Power rating
≤ 62.5 VA / 32 W (safe area)≤ 16 VA / 32 W (Zone 2)
TypeRelay, 1 NC (voltage-free)
Continuous current≤ 0.5 A AC / 0.3 A DC (safe zone), ≤ 0,5 A AC / 1 A DC (zone 2)

Classifications

ETIM 6.0
EC002653
eClass 9.0
27-21-01-20
eClass 10.0
27-21-01-20
ETIM 7.0EC002653
eClass 9.127-21-01-20

Environmental Product Compliance

REACH SVHC
Lead 7439-92-1

Data For Ex Applications (Atex)

Voltage U
10.6 V DC
Power P
32 mW
Installation location

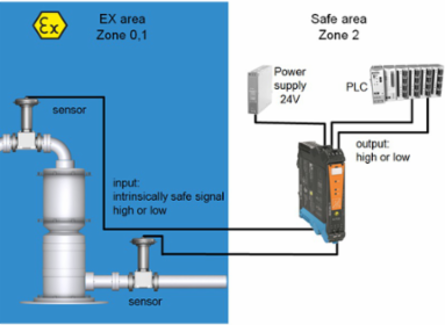

Device installed in safe area, zone 2
Current I12 mA DC
MarkingII (1) G [Ex ia Ga] IIC/IIB/IIA, II (1) D [Ex ia Da] IIIC, I (M1) [Ex ia Ma] I

Insulation Coordination

EMC standards
DIN EN 61326, NE 21
Rated voltage
300 V
Insulation voltage2.6 kV (input / output)

Input Ex

Input frequency
< 20 Hz
Output signal in case of wire break
< 0.1 mA, > 6.5 mA (in case of wire break)
Resistance
RP = 750 Ω / RS = 15kΩ
Sensor supply
8 V DC / 8 mA
Trigger level low
< 1.2 mA
Input resistance1 kΩ
Pulse duration> 0.1 ms
SensorNAMUR sensor, according to EN60947, switch with or without RS, RP
Trigger level high> 2.1 mA
Typeintrinsically safe circuit

Temperatures

Humidity
0...95 % (no condensation)
Operating temperature, min.
-20 °C
Storage temperature, min.
-20 °C
Storage temperature
-20 °C...85 °C
Operating temperature, max.60 °C
Storage temperature, max.85 °C
Operating temperature-20 °C...60 °C

General Specifications

Configuration

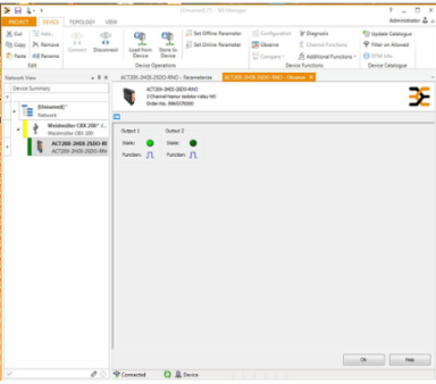

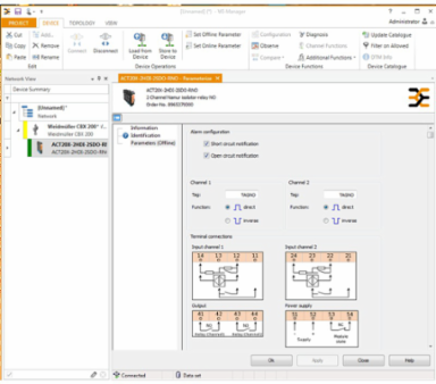

With FDT/DTM software
Type of connection
PUSH IN
Power consumption
≤1.9 W
Humidity
0...95 % (no condensation)
Voltage supply19.2…31.2 V DC
NAMUR supply8 V DC / 8 mA
Protection degreeIP20
