Schneider Electric NTSAMI0210K Analog Input Module + Base, 2 Isolated In, Current, Voltage, 2/3/4 wires, Loop Power, Modicon Edge I/O NTS
- MPN: NTSAMI0210K
- PPN: SCH-NTSAMI0210K
CAD
$641.48
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

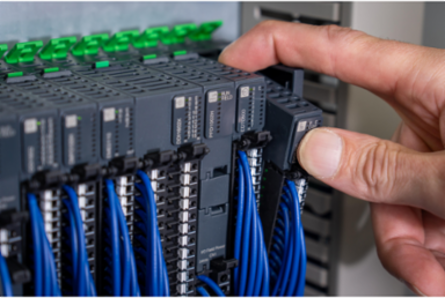

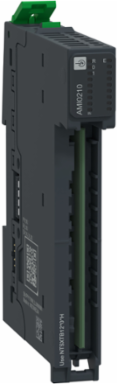

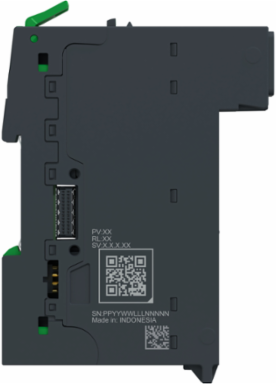

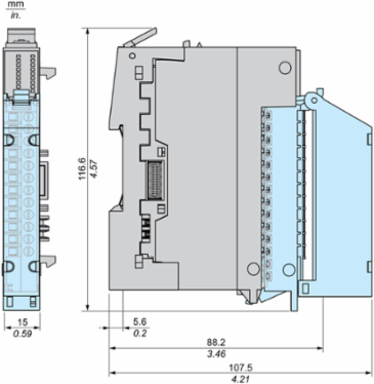

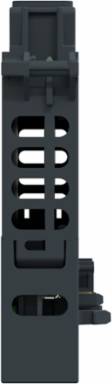

This analog input kit is part of the Modicon Edge I/O NTS range. This kit is a preassembly of a base and an analog input module. It features 2 isolated voltage current inputs of type ±10V, 0to10V, ±5V, 0to5V, 1to5V, ±20mA, 0to20mA, 4to20mA, with a 2-3-4-wire connection. This all-in-one solution is a comprehensive platform for managing multiple analog signals, ensuring efficient data processing. It functions within a temperature range of minus 20 to 60 degrees Celsius. The inputs are powered by a current loop. The IP degree of protection is IP20. It measures 116mm high, 15mm wide, 88mm deep and weighs 0.073kg. It is compatible with Modicon M262 and Modicon M580 Automation controller ranges and mounting accessories. The package contains the module already assembled at its base. The kit installs on a DIN rail, with a Mechanical locking clip. Modicon Edge I/O NTS is a future-ready I/O system for data aggregation. Modicon Edge I/O NTS is a robust distributed IP20 I/O system with wide choice of modules.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Brazil, France, Indonesia, Philippines, United States
Depth80 mm
Physical Attributes
- Housing Color
- grey
Complementary Attributes
- Maximum Cable Distance Between Devices
- shielded cable <200 m voltage inputsshielded cable <1000 m current input
Rated Operational Voltage Limits20.4...28.8 V DC
Important Information Attributes
- Environmental Characteristic
- gas resistant C3 and G2, standard environment, standard environment
- Kit Composition
- NTSAMI0210 module, NTSXBA0100H base
- Marking
- CE, UKCA, cULus, RCM
- Mounting Support
- top hat type TH35-7.5 rail IEC 60715, top hat type TH35-15 rail IEC 60715
- Sensor Power Supply Protection
- over current protection per channel, short circuit protection on loop power supply per channel
- Non-linearity
- <= 0.01 % FS voltage/current, <= 0.01 % FS voltage/current, <= 0.01 % FS voltage/current, <= 0.01 % FS voltage/current
- Carbon Footprint Of The End-of-life Phase [C1 To C4]
- 0.21933873510256938, 0.2 kg CO2 eq.
- Carbon Footprint Of The Manufacturing Phase [A1 To A3]
- 6 kg CO2 eq., 5.615929856774683
- Local Data Status
- Publishable
- Pre Comm Date
- 2025-02-03
- Stocking Flag
- N
- Weee Scope
- Out
- Scope Perimeter
- At least in Europe
- End Of Life Doc Ref
- ENVEOLI2410004EN
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- Rohs Eur In Scope
- No
- Rohs Eur Conformity Date
- 2439
- China Rohs In Scope
- Yes
- With Recycled Cardboard
- No
- Product Contributes To Saved And Avoided Emissions
- No
- Common Mode Rejection
- 90 dB
- Hart Tolerance
- yes
- Isolation Between Channels
- 530 V AC
- Isolation Between Field Power And Bus
- 1500 V AC
- Mandatory Accessory
- NTSXTB12_0_H terminal block
- Power Dissipation In W
- 1.3 W maximum at 24 V DC
- Product Or Component Type
- analog input module
- Returnability
- Yes
- Sensor Power Supply
- 19.2-30 V DC sensor power supply24-24 V DC Loop power
- Software Version
- v6.1
- Temperature Drift
- ± 0.001 % FS/ °C± 0.001 % FS/ °C
- Type Of Cable
- shielded cable
- Vibration Resistance
- 1 g without accessory2 g with accessory
- Analogue Input Type 9 Analogue Input Type
- voltage
- Database Version
- 2023-02
- Pcr Version
- PCR-4-ed4-EN-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
- Functional-unit Description
- To receive and process digital input signals from sensors in Modicon Edge I/O System during 10 years with a 100% use rate. Typical power consumption is 0,79W (33mA at 24 VDC).To receive and process digital input signals from sensors in Modicon Edge I/O System during 10 years with a 100% use rate. Typical power consumption is 0,79W (33mA at 24 VDC).
- Functional-unit Unit
- unit
- Energy Consumption On Product Lifetime In Kwh
- 37.8432
- Energy Model - Installation [A5]
- Electricity Mix; Low voltage; 2018; Europe, EU-27
- Energy Model - End Of Life [C1-c4]
- Electricity Mix; Low voltage; 2018; Europe, EU-27
- Width Nominal
- 15 mm
- Package Weight(Lbs)
- 104.000 g
- Warranty (In Months)
- 18
Isolation Between Channels And Field Pwrno for module sensor power supply, 1000 Vac for module loop power supply
Lsb Value0.31 mV, +/- 10 V, 0.31 mV, 0...10 V0.16 mV, +/- 5 V, 0.16 mV, 0...5 V0.13 mV, 1...5 V0.61 µA, +/- 20 mA, 0.61 µA, 0...2 mA0.49 µA, 4...20 mA
Measurement Error<= 0.05 % FS 25 °C, <= 0.05 % FS 25 °C, <= 0.1 % FS - 20…60 °C, <= 0.1 % FS - 20…60 °C<= 0.05 % FS 25 °C, <= 0.05 % FS 25 °C, <= 0.1 % FS - 20…60 °C, <= 0.1 % FS - 20…60 °C
Power Supply Typebus power from power supply bus (24 Vdc), field power from power supply field (24 Vdc)
Certificate AgencyCE, UKCA, cULus, RCM, Merchant Navy - EU RO MR (pending), EAC (pending), ATEX Zone 2 (pending), IECEx zone 2 (pending), CCC Ex zone 2 (pending)
Carbon Footprint Of The Distribution Phase [A4]0.11342234809860938, 0.1 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]0 kg CO2 eq., 0.00017573016570754922
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]20 kg CO2 eq., 20.211086378297914
Local Publishable Date2026-01-12
Return IndicatorY
Stock Policy2
Weee Product Category5
Eoli Availability DisplayYes
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant By Exemption
Rohs Eur Full Compliance StatusCompliant By Exemption
China Rohs Label5
Without Single Use PlasticNo
Product Kit IdentifierN
Device ApplicationIndustrial Application
Hot Swapping Fallbackyes
Isolation Between Channels And Bus1500 V AC
Local Signalling1 LED green module operating (RUN)1 LED per channel green channel diagnostic1 LED red module error (ERR)
Operating ModeSynchronous/Isochronous/Asynchronous
Product AvailabilityStock - Normally stocked in distribution facility
Range Of ProductModicon Edge I/O NTS
Sampling Duration0.499 ms
Shock Resistance15 g 11 ms with and without accessory)
Sustainable PackagingNo
Total Lifecycle Carbon Footprint26 kg CO2 eq.
Typical Current Consumption36 mA 24 V DC on the Bus current38.4 mA 24 V DC on the internal field current minimum246.1 mA 24 V DC on the internal field current maximum
Housing Colorgrey
Pep CodeENVPEP2410004EN
Pep Verification Date2024-10-08
Psr VersionPSR-0005-ed3.1-EN-2023 12 08
Data Sourceextrapolated product
Functional-unit Quantity1
Reference Lifetime In Y10
Energy Model - Manufacturing [A1-a3]Indonesia, ID
Energy Model - Use [B6]Electricity Mix; Low voltage; 2018; Europe, EU-27
Height Nominal100 mm
Nbr. Of Units In Pkg.1
Take-backNo
Customs Code8538908180
Environment Attributes Main
- Directives
- 2014/30/EU - electromagnetic compatibility, 2014/34/EU - ATEX directive, 2014/35/EU
- Recycled Metal Content At Cr Level
- 0 %
- Mercury Free
- Yes
- Ambient Air Temperature For Operation
- -20-60 °C-20-60 °C
- Circularity Profile
- ENVEOLI2410004EN
- Eu Rohs Directive
- Compliant By Exemption
- Operating Altitude
- 0...6561.68 ft (0...2000 m)2000...5000 m with derating
- Packaging Without Single Use Plastic
- No
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Pep Code
- ENVPEP2410004EN
- Pcr Version
- PCR-4-ed4-EN-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
Take BackNo
China Rohs RegulationX
Carbon Footprint26.159953048439483
Ambient Air Temperature For Storage-40-85 °C-40-85 °C
Environmental DisclosureENVPEP2410004EN
Ip Degree Of ProtectionIP20
Packaging Made With Recycled CardboardNo
Product CompatibilityNTSN.....
Relative Humidity5-95 % without condensation
Pep Verification Date2024-10-08
Psr VersionPSR-0005-ed3.1-EN-2023 12 08
General Attributes
- Product Or Component Type
- analog input module
Range Of ProductModicon Edge I/O NTS
ETIM
- ETIM 8
- EC001596
ETIM 9EC001596
Input Attributes
- Analogue Input Type
- current +/- 20 mA, current 0...20 mA, current 4...20 mAvoltage +/- 10 V, voltage 0...10 V, voltage +/- 5 V, voltage 0...5 V, voltage 1...5 V
- Input Impedance
- > 10 MOhm in voltage mode, > 10 MOhm in voltage mode> 10 MOhm in voltage mode, > 10 MOhm in voltage mode250 Ohm + internal current protector 10 Ohm typical
- Permitted Overload On Inputs
- 30 V maximum voltage, 30 V at 50 mA maximum current
- Analogue Input Resolution
- 15 bits + sign
Input Diagnosticunderflow error per channel, overflow error per channel, Broken wire error per channel, Hardware error per channel, Calibration error per channel, Loop power supply error per channel
Input Protection Typeover current / miswiring protection per channel for current input, over voltage / miswiring protection per channel for voltage input
Analogue Input Number2

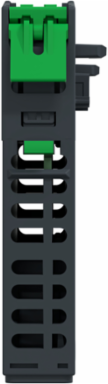

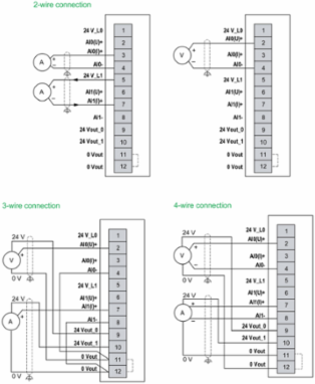

Input Wiring Mode2, 3 or 4 wires
