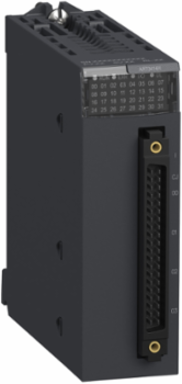

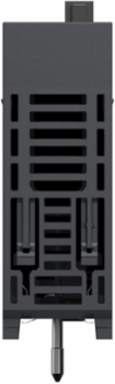

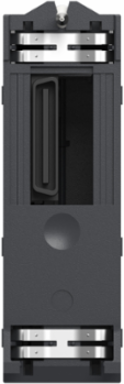

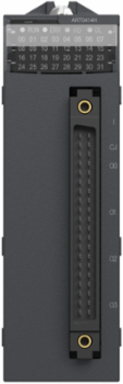

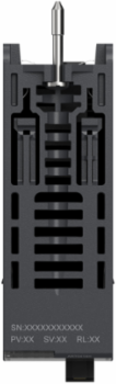

Schneider Electric BMXART0414H Analog isolated low level input module, Modicon X80, 4 inputs, 40mV positive or negative, for severe environments
Schneider Electric BMXART0414H Analog isolated low level input module, Modicon X80, 4 inputs, 40mV positive or negative, for severe environments
- MPN: BMXART0414H
- PPN: SCH-BMXART0414H
- UNSPSC: 32151705
Spec sheet
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$2157.49/ EA
Description
This analog isolated input module is part of the Modicon X80 range, an offer of common input/output and communication modules, power supplies and racks for Modicon M340 and Modicon M580. This product is composed of 4 input channels. This ruggedized product can be used in more severe environments, and operate in an extended temperature range, from -25°C to +70°C/-13°F to 158°F. Modicon X80 modules provide a single environment for the deployment of I/O modules in automation architectures by reducing spare parts inventory, maintenance and training costs. This product is IP20 rated and offers 1409427 hours of MTBF. This analog module has a weight of 0.135kg and dimensions of 32x100x86mm. This module meets the needs of applications in Transportation, Water and Waste Water, Consumer Packaged Goods, Mining Minerals Metals, Power generation, Energies and Chemicals, and Data centers. This product is certified by CE, UL, CSA, RCM, EAC, UKCA, Merchant Navy and meets EN 61000-6-5, EN 61850-3 standards. This module is compatible with Modicon M340, M580 (Local or Remote I/O) PLCs with one 40-way connector. The product must be installed on the rack and fixed with 2 screws.
Features
- Cost-effective modernization and migration
- Reduce time to market
- Process efficiency
- Easy Maintenance
- Reliability and robustness
Specifications
Conformance Attributes
- Product Certifications
- IEC-Ex, Merchant Navy, UL, RCM, EAC, CSA, CE, ATEX
StandardsIEC 61131-2, IEC 61000-6-4, IEC 61000-6-2, EN 61010-2-201
Complementary Attributes
- Maximum Conversion Value
- +/- 100 % 400 Ohm, +/- 100 % 400 Ohm, +/- 100 % 4000 Ohm, +/- 100 % 4000 Ohm, +/- 102.5 % +/- 1.28 V, +/- 102.5 % +/- 1.28 V, +/- 102.5 % +/- 160 mV, +/- 102.5 % +/- 160 mV, +/- 102.5 % +/- 320 mV, +/- 102.5 % +/- 320 mV, +/- 102.5 % +/- 40 mV, +/- 102.5 % +/- 40 mV, +/- 102.5 % +/- 640 mV, +/- 102.5 % +/- 640 mV, +/- 102.5 % +/- 80 mV, +/- 102.5 % +/- 80 mV, +/- 100 % 400 Ohm, +/- 100 % 400 Ohm, +/- 100 % 4000 Ohm, +/- 102.5 % +/- 1.28 V, +/- 102.5 % +/- 1.28 V, +/- 102.5 % +/- 160 mV, +/- 102.5 % +/- 320 mV, +/- 102.5 % +/- 40 mV, +/- 102.5 % +/- 640 mV, +/- 102.5 % +/- 80 mV
Maximum Wiring Resistance20 Ohm 3 wires Ni 100, 20 Ohm 3 wires Pt 100, 200 Ohm 3 wires Ni 1000, 200 Ohm 3 wires Pt 1000, 50 Ohm 4 wires Ni 100, 50 Ohm 4 wires Pt 100, 500 Ohm 4 wires Pt 1000, 20 Ohm 2 wires Cu 10, 20 Ohm 2 wires Ni 100, 20 Ohm 2 wires Pt 100, 20 Ohm 3 wires Cu 10, 200 Ohm 2 wires Ni 1000, 200 Ohm 2 wires Pt 1000, 50 Ohm 4 wires Cu 10, 500 Ohm 4 wires Ni 1000
Important Information Attributes
- Persona Type Ids
- EU, OM8, SI
- Current Consumption
- 150 mA 3.3 V DC, 40 mA 24 V DC
- Status Led
- 1 LED (Green) RUN, 1 LED per channel (Green) channel diagnostic, 1 LED (Red) ERR, 1 LED (Red) I/O
- Carbon Footprint Of The Distribution Phase A4
- 0.0224913455, 0 kg CO2 eq.
- Carbon Footprint Of The Installation Phase A5
- 0.0457999515, 0 kg CO2 eq.
- Carbon Footprint Of The Use Phase B2 B3 B4 B6
- 75 kg CO2 eq., 74.7910642458
- Measurement Error
- +/- 0.7 °C Ni 1000 25 °C, +/- 0.7 °C Ni 1000 25 °C, +/- 0.7 °C Ni 1000 25 °C, +/- 2.1 °C Ni 100 25 °C, +/- 2.1 °C Ni 100 25 °C, +/- 2.1 °C Ni 100 25 °C, +/- 2.1 °C Pt 100 25 °C, +/- 2.1 °C Pt 100 25 °C, +/- 2.1 °C Pt 100 25 °C, +/- 2.1 °C Pt 1000 25 °C, +/- 2.1 °C Pt 1000 25 °C, +/- 2.1 °C Pt 1000 25 °C, +/- 2.7 °C thermocouple U 25 °C, +/- 2.7 °C thermocouple U 25 °C, +/- 2.7 °C thermocouple U 25 °C, +/- 2.8 °C thermocouple J 25 °C, +/- 2.8 °C thermocouple J 25 °C, +/- 2.8 °C thermocouple J 25 °C, +/- 3 °C thermocouple L 25 °C, +/- 3 °C thermocouple L 25 °C, +/- 3 °C thermocouple L 25 °C, +/- 3.2 °C thermocouple R 25 °C, +/- 3.2 °C thermocouple R 25 °C, +/- 3.2 °C thermocouple R 25 °C, +/- 3.2 °C thermocouple S 25 °C, +/- 3.2 °C thermocouple S 25 °C, +/- 3.2 °C thermocouple S 25 °C, +/- 3.5 °C thermocouple B 25 °C, +/- 3.5 °C thermocouple B 25 °C, +/- 3.5 °C thermocouple B 25 °C, +/- 3.7 °C thermocouple E 25 °C, +/- 3.7 °C thermocouple E 25 °C, +/- 3.7 °C thermocouple E 25 °C, +/- 3.7 °C thermocouple K 25 °C, +/- 3.7 °C thermocouple K 25 °C, +/- 3.7 °C thermocouple K 25 °C, +/- 3.7 °C thermocouple N 25 °C, +/- 3.7 °C thermocouple N 25 °C, +/- 3.7 °C thermocouple N 25 °C, +/- 3.7 °C thermocouple T 25 °C, +/- 3.7 °C thermocouple T 25 °C, +/- 3.7 °C thermocouple T 25 °C, +/- 4 °C Cu 10 25 °C, +/- 4 °C Cu 10 25 °C, +/- 4 °C Cu 10 25 °C, +/- 1.5 °C Ni 1000 - 25...70 °C, +/- 1.5 °C Ni 1000 - 25...70 °C, +/- 1.5 °C Ni 1000 - 25...70 °C, +/- 3.5 °C Ni 100 - 25...70 °C, +/- 3.5 °C Ni 100 - 25...70 °C, +/- 3.5 °C Ni 100 - 25...70 °C, +/- 3.5 °C Pt 100 - 25...70 °C, +/- 3.5 °C Pt 100 - 25...70 °C, +/- 3.5 °C Pt 100 - 25...70 °C, +/- 3.5 °C Pt 1000 - 25...70 °C, +/- 3.5 °C Pt 1000 - 25...70 °C, +/- 3.5 °C Pt 1000 - 25...70 °C, +/- 4.5 °C Cu 10 - 25...70 °C, +/- 4.5 °C Cu 10 - 25...70 °C, +/- 4.5 °C Cu 10 - 25...70 °C, +/- 5.5 °C thermocouple J - 25...70 °C, +/- 5.5 °C thermocouple J - 25...70 °C, +/- 5.5 °C thermocouple J - 25...70 °C, +/- 5.5 °C thermocouple L - 25...70 °C, +/- 5.5 °C thermocouple L - 25...70 °C, +/- 5.5 °C thermocouple L - 25...70 °C, +/- 5.5 °C thermocouple R - 25...70 °C, +/- 5.5 °C thermocouple R - 25...70 °C, +/- 5.5 °C thermocouple R - 25...70 °C, +/- 5.5 °C thermocouple S - 25...70 °C, +/- 5.5 °C thermocouple S - 25...70 °C, +/- 5.5 °C thermocouple S - 25...70 °C, +/- 5.5 °C thermocouple U - 25...70 °C, +/- 5.5 °C thermocouple U - 25...70 °C, +/- 5.5 °C thermocouple U - 25...70 °C, +/- 6 °C thermocouple B - 25...70 °C, +/- 6 °C thermocouple B - 25...70 °C, +/- 6 °C thermocouple B - 25...70 °C, +/- 6 °C thermocouple E - 25...70 °C, +/- 6 °C thermocouple E - 25...70 °C, +/- 6 °C thermocouple E - 25...70 °C, +/- 6 °C thermocouple K - 25...70 °C, +/- 6 °C thermocouple K - 25...70 °C, +/- 6 °C thermocouple K - 25...70 °C, +/- 6 °C thermocouple N - 25...70 °C, +/- 6 °C thermocouple N - 25...70 °C, +/- 6 °C thermocouple N - 25...70 °C, +/- 6 °C thermocouple T - 25...70 °C, +/- 6 °C thermocouple T - 25...70 °C, +/- 6 °C thermocouple T - 25...70 °C, <= 0.2 % of full scale +/- 1.28 V - 25...70 °C, <= 0.2 % of full scale +/- 1.28 V - 25...70 °C, <= 0.2 % of full scale +/- 1.28 V - 25...70 °C, <= 0.2 % of full scale +/- 160 mV - 25...70 °C, <= 0.2 % of full scale +/- 160 mV - 25...70 °C, <= 0.2 % of full scale +/- 160 mV - 25...70 °C, <= 0.2 % of full scale +/- 320 mV - 25...70 °C, <= 0.2 % of full scale +/- 320 mV - 25...70 °C, <= 0.2 % of full scale +/- 320 mV - 25...70 °C, <= 0.2 % of full scale +/- 40 mV - 25...70 °C, <= 0.2 % of full scale +/- 40 mV - 25...70 °C, <= 0.2 % of full scale +/- 40 mV - 25...70 °C, <= 0.2 % of full scale +/- 640 mV - 25...70 °C, <= 0.2 % of full scale +/- 640 mV - 25...70 °C, <= 0.2 % of full scale +/- 640 mV - 25...70 °C, <= 0.2 % of full scale +/- 80 mV - 25...70 °C, <= 0.2 % of full scale +/- 80 mV - 25...70 °C, <= 0.2 % of full scale +/- 80 mV - 25...70 °C, <= 0.3 % of full scale 400 Ohm - 25...70 °C, <= 0.3 % of full scale 400 Ohm - 25...70 °C, <= 0.3 % of full scale 400 Ohm - 25...70 °C, <= 0.3 % of full scale 4000 Ohm - 25...70 °C, <= 0.3 % of full scale 4000 Ohm - 25...70 °C, <= 0.3 % of full scale 4000 Ohm - 25...70 °C, +/- 0.7 °C Ni 1000 25 °C, +/- 0.7 °C Ni 1000 25 °C, +/- 0.7 °C Ni 1000 25 °C, +/- 2.1 °C Ni 100 25 °C, +/- 2.1 °C Ni 100 25 °C, +/- 2.1 °C Pt 100 25 °C, +/- 2.1 °C Pt 1000 25 °C, +/- 2.7 °C thermocouple U 25 °C, +/- 2.7 °C thermocouple U 25 °C, +/- 2.8 °C thermocouple J 25 °C, +/- 2.8 °C thermocouple J 25 °C, +/- 3 °C thermocouple L 25 °C, +/- 3 °C thermocouple L 25 °C, +/- 3.2 °C thermocouple R 25 °C, +/- 3.2 °C thermocouple R 25 °C, +/- 3.2 °C thermocouple S 25 °C, +/- 3.5 °C thermocouple B 25 °C, +/- 3.5 °C thermocouple B 25 °C, +/- 3.7 °C thermocouple E 25 °C, +/- 3.7 °C thermocouple E 25 °C, +/- 3.7 °C thermocouple K 25 °C, +/- 3.7 °C thermocouple N 25 °C, +/- 3.7 °C thermocouple T 25 °C, +/- 4 °C Cu 10 25 °C, +/- 4 °C Cu 10 25 °C, 0.05 % of full scale +/- 1.28 V 25 °C, 0.05 % of full scale +/- 160 mV 25 °C, 0.05 % of full scale +/- 320 mV 25 °C, 0.05 % of full scale +/- 40 mV 25 °C, 0.05 % of full scale +/- 640 mV 25 °C, 0.05 % of full scale +/- 80 mV 25 °C, 0.12 % of full scale 400 Ohm 25 °C, 0.12 % of full scale 4000 Ohm 25 °C, +/- 1.5 °C Ni 1000 - 25...70 °C, +/- 1.5 °C Ni 1000 - 25...70 °C, +/- 4.5 °C Cu 10 - 25...70 °C, +/- 5.5 °C thermocouple J - 25...70 °C, +/- 6 °C thermocouple B - 25...70 °C, <= 0.2 % of full scale +/- 1.28 V - 25...70 °C, <= 0.3 % of full scale 400 Ohm - 25...70 °C
- Nominal Read Cycle Time
- 200 ms with thermocouple, 400 ms with temperature probe
- Local Publishable Date
- 2026-01-31
- Serviceability
- No
- Field Service Division
- IDIBS
- Legacy WEEE Scope
- Out
- EOLI Availability Display
- Yes
- Reach Full Compliance Status
- Reference contains Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Reference contains Substances of Very High Concern above the threshold
- ROHS EUR Status
- Compliant with Exemptions
- ROHS EUR Full Compliance Status Id
- PRO_ACTIVE_COMPLIANCE
- Green Premium Status For Reporting
- Green Premium product
- Product Contributes To Saved And Avoided Emissions
- No
- Function Option Id
- STANDARD
- Market Segmentation Id
- INDUSTRIAL
- Electrical Connection
- 40 ways 1 connector
- Package Weight Lbs
- 172.000 g
- Product Or Component Type
- analog input module
- Protective Treatment
- conformal coating
- Returnability
- No
- Sustainable Packaging
- Yes
- Vibration Resistance
- 3 gn
- Stocking Flag
- Y
- Pep Code
- ENVPEP2311046EN
- Pep Verification Date
- 2023-11-01
- Psr Version
- PSR-0005-ed2-2016 03 29
- Data Source
- extrapolated product
- Functional Unit Unit
- Unit
- Energy Model Installation A5 2
- Electricity Mix; Production mix; Low voltage; US / Electricity Mix; Production mix; Low voltage; UE-27 / Electricity Mix; Production mix; Low voltage; APAC / Electricity Mix; Production mix; Low voltage; AUS
- Energy Model End Of Life C1 C4 2
- Electricity Mix; Production mix; Low voltage; US / Electricity Mix; Production mix; Low voltage; UE-27 / Electricity Mix; Production mix; Low voltage; APAC / Electricity Mix; Production mix; Low voltage; AUS
- Cold Junction Compensation
- external by Pt100 probe
- Differential Mode Rejection
- 60 dB 50/60 Hz
- Type Of Filter
- first order digital filtering
Persona Type NamesEnd User, OEM - Control Panelbuilder, System Integrator
Environmental Characteristicgas resistant class Gx, gas resistant class 3C4, dust resistant class 3S4, sand resistant class 3S4, salt resistant level 2, mold growth resistant class 3B2, fungal spore resistant class 3B2, hazardous location class I division 2
Temperature Drift25 ppm/°C 400 Ohm, 25 ppm/°C 4000 Ohm, 25 ppm/°C Ni 1000, 25 ppm/°C thermocouple B, 25 ppm/°C thermocouple E, 25 ppm/°C thermocouple J, 25 ppm/°C thermocouple K, 25 ppm/°C thermocouple L, 25 ppm/°C thermocouple N, 25 ppm/°C thermocouple R, 25 ppm/°C thermocouple S, 25 ppm/°C thermocouple T, 25 ppm/°C thermocouple U, 30 ppm/°C +/- 1.28 V, 30 ppm/°C +/- 160 mV, 30 ppm/°C +/- 320 mV, 30 ppm/°C +/- 40 mV, 30 ppm/°C +/- 640 mV, 30 ppm/°C +/- 80 mV, 30 ppm/°C Cu 10, 30 ppm/°C Ni 100, 30 ppm/°C Pt 100, 30 ppm/°C Pt 1000
Carbon Footprint Of The End Of Life Phase C1 To C40.3 kg CO2 eq., 0.3052009697
Carbon Footprint Of The Manufacturing Phase A1 To A322 kg CO2 eq., 21.9763878788
Detection Typeopen circuit Cu 10, open circuit Ni 100, open circuit Ni 1000, open circuit Pt 100, open circuit Pt 1000, open circuit thermocouple B, open circuit thermocouple E, open circuit thermocouple J, open circuit thermocouple K, open circuit thermocouple L, open circuit thermocouple N, open circuit thermocouple R, open circuit thermocouple S, open circuit thermocouple T, open circuit thermocouple U
Measurement Resolution0.1 °C Cu 10, 0.1 °C Ni 100, 0.1 °C Ni 1000, 0.1 °C Pt 100, 0.1 °C Pt 1000, 0.1 °C thermocouple B, 0.1 °C thermocouple E, 0.1 °C thermocouple J, 0.1 °C thermocouple K, 0.1 °C thermocouple L, 0.1 °C thermocouple N, 0.1 °C thermocouple R, 0.1 °C thermocouple S, 0.1 °C thermocouple T, 0.1 °C thermocouple U, 1280/2exp14 mV +/- 1.28 V, 160/2exp14 mV +/- 160 mV, 320/2exp14 mV +/- 320 mV, 40/2exp14 mV +/- 40 mV, 12.5 mOhm 400 Ohm, 125 mOhm 4000 Ohm, 640/2exp14 mV +/- 640 mV, 80/2exp14 mV +/- 80 mV
Local Data StatusPublishable
Device TypePLC System - PLC Component
TraceabilityYes
Average Life Duration20 year(s)
Scope PerimeterAt least in Europe
End Of Life Doc RefENVEOLI2311046EN
Reach Full Compliance Status IdCONTAINS_SVHC
ROHS EUR In ScopeNo
ROHS EUR Full Compliance StatusPro-active compliance (Product out of EU RoHS legal scope)
China ROHS In ScopeYes
With Recycled CardboardYes
Return IndicatorN
Function OptionStandard
Market SegmentationIndustrial
Mtbf Reliability1400000 H
Product AvailabilityNon-Stock - Not normally stocked in distribution facility
Product Specific Applicationfor severe environments
Range Of ProductModicon X80
Shock Resistance30 gn
Total Lifecycle Carbon Footprint97 kg CO2 eq.
Medium DescAnalog isolated low level input module, Modicon X80, 4 inputs, 40mV positive or negative, for severe environments
Product Kit IdentifierN
Database Version2022-01
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
Functional Unit DescriptionThe Modicon M X80 range has a long life cycle for about more than 10 years with a 100% use rate. Typical electrical power is 1.79W (150 mA 3.3 V DC). The module offers the following ranges of voltage and current :& 10Voltage range: +/-5 V/+/-10 V/0..5 V/0..10 V/1..5 V,& 10Current range: +/-20 mA/0..20 mA/4..20 mA& 10& 10IP Degree of Protection: IP20& 10IEC 61010-2-201, IEC 61131-2,UL 61010-2-201,CSA C22.2 No 61010-2-201
Energy Model Manufacturing A1 A3 2Energy model used: Electricity Mix; Production mix; Low voltage; FR
Energy Model Use B6 2Electricity Mix; Production mix; Low voltage; US / Electricity Mix; Production mix; Low voltage; UE-27 / Electricity Mix; Production mix; Low voltage; APAC / Electricity Mix; Production mix; Low voltage; AUS
Analog Digital Conversionsigma delta 16 bits
Common Mode Rejection120 dB 50/60 Hz
Recalibrationinternal
Global Commercial StatusCommercialised
Environment Attributes Main
- Take Back
- No, Nej
- EU ROHS Directive
- Compliant By Exemption , Pro-active compliance (Product out of EU RoHS legal scope)
- ROHS Exemption Information
- Yes
- China ROHS Regulation
- X
- Carbon Footprint
- 97.1409443913
- Ambient Air Temperature For Storage
- -40-85 °C
- Environmental Disclosure
- ENVPEP2311046EN
- Packaging Made With Recycled Cardboard
- Yes
- Relative Humidity
- 5-95 % 55-55 °C without condensation
- Pep Verification Date
- 2023-11-01
- Psr Version
- PSR-0005-ed2-2016 03 29
Directives2014/35/EU - low voltage directive, 2014/30/EU - electromagnetic compatibility
Operating Altitude0...6561.68 ft (0...2000 m), 2000...5000 m with derating factor
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Ambient Air Temperature For Operation-25-70 °C
Circularity ProfileENVEOLI2311046EN
IP Degree Of ProtectionIP20
Reach RegulationReference contains Substances of Very High Concern above the threshold
Pep CodeENVPEP2311046EN
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
General Attributes
- Product Or Component Type
- analog input module
Range Of ProductModicon X80
Surge Protection And Filtering Attributes
- Type Of Filter
- first order digital filtering
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
Input Attributes
- Analogue Input Type
- resistor 4000 Ohm 3 wires, resistor 4000 Ohm 4 wires, temperature probe -200...+850 °C Pt 1000 IEC, voltage +/- 1.28 V, voltage +/- 160 mV, voltage +/- 320 mV, voltage +/- 40 mV, voltage +/- 640 mV, voltage +/- 80 mV, resistor 400 Ohm 2 wires, resistor 400 Ohm 3 wires, resistor 400 Ohm 4 wires, resistor 4000 Ohm 2 wires, temperature probe -100...+260 °C Cu 10, temperature probe -100...+450 °C Pt 100 UL/JIS, temperature probe -100...+450 °C Pt 1000 UL/JIS, temperature probe -200...+850 °C Pt 100 IEC, temperature probe -60...+180 °C Ni 100, temperature probe -60...+180 °C Ni 1000, thermocouple +130...+1820 °C thermocouple B, thermocouple +270...+1300 °C thermocouple N, thermocouple -200...+600 °C thermocouple U, thermocouple -200...+760 °C thermocouple J, thermocouple -200...+900 °C thermocouple L, thermocouple -270...+1000 °C thermocouple E, thermocouple -270...+1370 °C thermocouple K, thermocouple -270...+400 °C thermocouple T, thermocouple -50...+1769 °C thermocouple R, thermocouple -50...+1769 °C thermocouple S
- Analogue Input Number
- 4
- Input Level
- low level
Permitted Overload On Inputs+/- 7.5 V +/- 1.28 V, +/- 7.5 V +/- 1.28 V, +/- 7.5 V +/- 160 mV, +/- 7.5 V +/- 160 mV, +/- 7.5 V +/- 320 mV, +/- 7.5 V +/- 320 mV, +/- 7.5 V +/- 40 mV, +/- 7.5 V +/- 40 mV, +/- 7.5 V +/- 640 mV, +/- 7.5 V +/- 640 mV, +/- 7.5 V +/- 80 mV, +/- 7.5 V +/- 80 mV, +/- 7.5 V +/- 1.28 V, +/- 7.5 V +/- 1.28 V, +/- 7.5 V +/- 160 mV, +/- 7.5 V +/- 320 mV, +/- 7.5 V +/- 40 mV, +/- 7.5 V +/- 640 mV, +/- 7.5 V +/- 80 mV
Analogue Input Resolution15 bits + sign
Input Output Isolationisolated
