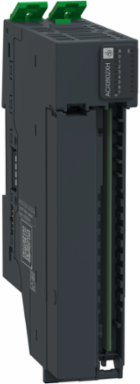

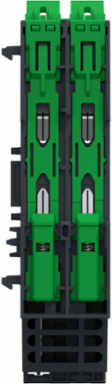

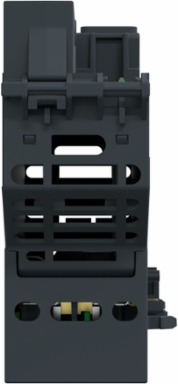

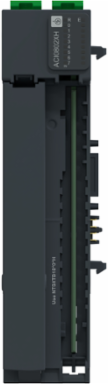

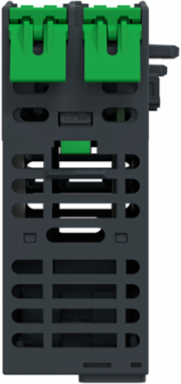

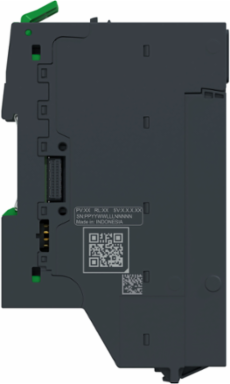

Schneider Electric NTSACI0802XHK Analog Input Module + Base, 8 In, Current, 1/2 wires, Loop Power, Hardened, Modicon Edge I/O NTS
- MPN: NTSACI0802XHK
- PPN: SCH-NTSACI0802XHK
CAD
$1291.74
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

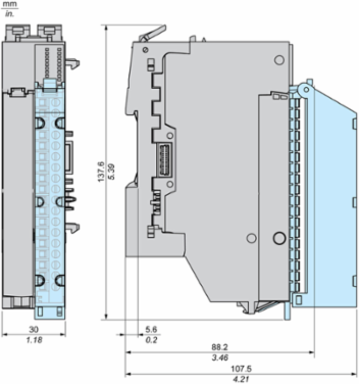

This analog input kit is part of the Modicon Edge I/O NTS range. This kit is a preassembly of a base and an analog input module. It features 8 current inputs of type ±20mA, 0 to 20mA, and 4 to 20mA, with a 1-2-wire connection. The inputs are powered by a current loop. This all-in-one solution is a comprehensive platform for managing multiple analog signals, ensuring efficient data processing. It functions within a temperature range of minus 40 to 70 degrees Celsius. It has an IP protection rating of IP20, and a Protective coating is applied to electronic components and circuit boards. It measures 137.6mm high, 30mm wide, 88mm deep and weighs 0.131kg. It is compatible with field power supply modules. The package contains the module already assembled at its base. The kit installs on a DIN rail, with a Mechanical locking clip. Modicon Edge I/O NTS is a future-ready I/O system for data aggregation. Modicon Edge I/O NTS is a robust distributed IP20 I/O system with wide choice of modules.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Brazil, France, Indonesia, Philippines, United States
Depth80 mm
Physical Attributes
- Housing Color
- grey
Complementary Attributes
- Maximum Cable Distance Between Devices
- shielded cable <1000 m current input
Rated Operational Voltage Limits20.4...28.8 V DC
Important Information Attributes
- Environmental Characteristic
- harsh environment, harsh environment
- Lsb Value
- 0.61 µA, +/-20 mA, 0.61 µA, 0...20 mA0.49 µA, 4...20 mA
- Measurement Error
- <= 0.1 % FS 25 °C, <= 0.1 % FS 25 °C, <= 0.3 % FS - 20…60 °C, <= 0.3 % FS - 20…60 °C<= 0.1 % FS 25 °C, <= 0.1 % FS 25 °C, <= 0.3 % FS - 20…60 °C, <= 0.3 % FS - 20…60 °C
- Power Supply Type
- bus power from power supply bus (24 Vdc), field power from power supply field (24 Vdc)
- Certificate Agency
- CE, UKCA, cULus, RCM, Merchant Navy - EU RO MR (pending), EAC (pending), ATEX Zone 2 (pending), IECEx zone 2 (pending), CCC Ex zone 2 (pending)
- Carbon Footprint Of The Distribution Phase [A4]
- 0.20353873425914837, 0.2 kg CO2 eq.
- Carbon Footprint Of The Installation Phase [A5]
- 0 kg CO2 eq., 0.000315351393256013
- Carbon Footprint Of The Use Phase [B2 B3 B4 B6]
- 20 kg CO2 eq., 20.211086378297914
- Local Publishable Date
- 2026-01-12
- Pre Comm Date
- 2024-12-19
- Stocking Flag
- N
- Weee Scope
- Out
- Scope Perimeter
- At least in Europe
- End Of Life Doc Ref
- ENVEOLI2410004EN
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- Rohs Eur In Scope
- No
- Rohs Eur Conformity Date
- 2439
- China Rohs In Scope
- Yes
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Common Mode Rejection
- 90 dB
- Hot Swapping Fallback
- yes
- Isolation Between Channels And Field Pwr
- No
- Local Signalling
- 1 LED green module operating (RUN)1 LED per channel green channel diagnostic1 LED red module error (ERR)
- Operating Mode
- Isochronous/Asynchronous
- Product Availability
- Stock - Normally stocked in distribution facility
- Protective Treatment
- conformal coating
- Returnability
- Yes
- Sensor Power Supply
- 19.2-30 V DC Loop power
- Software Version
- v6.1
- Temperature Drift
- ± 0.004 % FS/ °C± 0.004 % FS/ °C
- Type Of Cable
- shielded cable
- Vibration Resistance
- 1 g without accessory2 g with accessory
- Analogue Input Type 9 Analogue Input Type
- current
- Database Version
- 2023-02
- Pcr Version
- PCR-4-ed4-EN-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
- Functional-unit Description
- To receive and process digital input signals from sensors in Modicon Edge I/O System during 10 years with a 100% use rate. Typical power consumption is 0,79W (33mA at 24 VDC).To receive and process digital input signals from sensors in Modicon Edge I/O System during 10 years with a 100% use rate. Typical power consumption is 0,79W (33mA at 24 VDC).
- Functional-unit Unit
- unit
- Energy Consumption On Product Lifetime In Kwh
- 37.8432
- Energy Model - Installation [A5]
- Electricity Mix; Low voltage; 2018; Europe, EU-27
- Energy Model - End Of Life [C1-c4]
- Electricity Mix; Low voltage; 2018; Europe, EU-27
- Width Nominal
- 30 mm
- Package Weight(Lbs)
- 153.000 g
- Warranty (In Months)
- 18
Kit CompositionNTSACI0802XH module, NTSXBA0200H base
MarkingCE, UKCA, cULus, RCM
Mounting Supporttop hat type TH35-7.5 rail IEC 60715, top hat type TH35-15 rail IEC 60715
Sensor Power Supply Protectionover current protection per channel, short circuit protection on loop power supply per channel
Non-linearity<= 0.01 % FS voltage/current, <= 0.01 % FS voltage/current, <= 0.01 % FS voltage/current, <= 0.01 % FS voltage/current
Carbon Footprint Of The End-of-life Phase [C1 To C4]0.3936078671018711, 0.4 kg CO2 eq.
Carbon Footprint Of The Manufacturing Phase [A1 To A3]10 kg CO2 eq., 10.077901523801144
Local Data StatusPublishable
Pre Comm Announcement Date2024-12-19
Return IndicatorY
Stock Policy2
Weee Product Category5
Eoli Availability DisplayYes
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant By Exemption
Rohs Eur Full Compliance StatusCompliant By Exemption
China Rohs Label5
Without Single Use PlasticYes
Product Kit IdentifierN
Device ApplicationIndustrial Application
Isolation Between Channels And Bus1500 V AC
Isolation Between Field Power And Bus1500 V AC
Mandatory AccessoryNTSXTB18_0_H terminal block
Power Dissipation In W2.3 W maximum at 24 V DC
Product Or Component Typeanalog input module kit
Range Of ProductModicon Edge I/O NTS
Sampling Duration1.595 ms per module
Shock Resistance15 g 11 ms with and without accessory)
Sustainable PackagingYes
Total Lifecycle Carbon Footprint31 kg CO2 eq.
Typical Current Consumption36 mA 24 V DC on the Bus current24 mA 24 V DC on the internal field current minimum208.8 mA 24 V DC on the internal field current maximum
Housing Colorgrey
Pep CodeENVPEP2410004EN
Pep Verification Date2024-10-08
Psr VersionPSR-0005-ed3.1-EN-2023 12 08
Data Sourceextrapolated product
Functional-unit Quantity1
Reference Lifetime In Y10
Energy Model - Manufacturing [A1-a3]Indonesia, ID
Energy Model - Use [B6]Electricity Mix; Low voltage; 2018; Europe, EU-27
Height Nominal121 mm
Nbr. Of Units In Pkg.1
Take-backNo
Customs Code8538908180
Environment Attributes Main
- Directives
- 2014/30/EU - electromagnetic compatibility, 2014/34/EU - ATEX directive, 2014/35/EU
- Recycled Metal Content At Cr Level
- 0 %
- Mercury Free
- Yes
- Ambient Air Temperature For Operation
- -20-60 °C-20-60 °C
- Circularity Profile
- ENVEOLI2410004EN
- Eu Rohs Directive
- Compliant By Exemption
- Operating Altitude
- 0...6561.68 ft (0...2000 m)2000...5000 m with derating
- Packaging Without Single Use Plastic
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Pep Code
- ENVPEP2410004EN
- Pcr Version
- PCR-4-ed4-EN-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
Take BackNo
China Rohs RegulationX
Carbon Footprint30.886449854853332
Ambient Air Temperature For Storage-40-85 °C-40-85 °C
Environmental DisclosureENVPEP2410004EN
Ip Degree Of ProtectionIP20
Packaging Made With Recycled CardboardYes
Product CompatibilityNTSN.....
Relative Humidity5-95 % without condensation
Pep Verification Date2024-10-08
Psr VersionPSR-0005-ed3.1-EN-2023 12 08
General Attributes
- Product Or Component Type
- analog input module kit
Range Of ProductModicon Edge I/O NTS
ETIM
- ETIM 8
- EC001596
ETIM 9EC001596
Input Attributes
- Analogue Input Type
- current +/- 20 mA, current 0...20 mA, current 4...20 mA
- Analogue Input Number
- 8
- Input Impedance
- 250 Ohm + internal current protector 10 Ohm typical

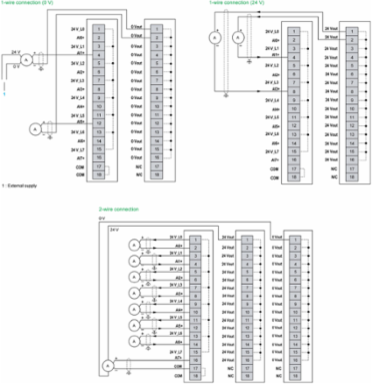

- Input Wiring Mode
- 1 or 2 wires
Input Diagnosticunderflow error per channel, overflow error per channel, Broken wire error per channel, Hardware error per channel, Calibration error per channel, Loop power supply error per channel
Analogue Input Resolution15 bits + sign
Input Protection Typeover current / miswiring protection per channel for current input
Permitted Overload On Inputs30 V at 50 mA maximum current
