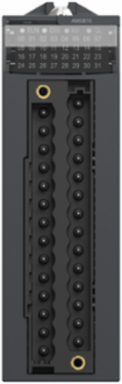

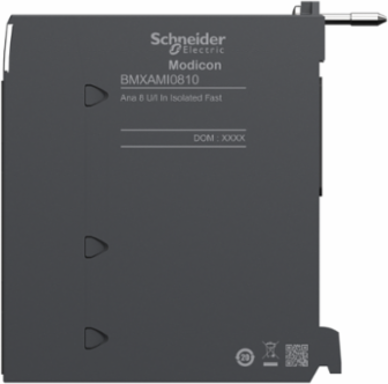

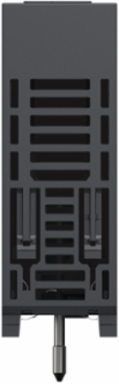

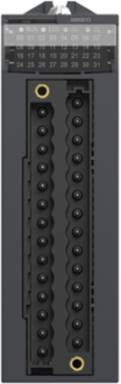

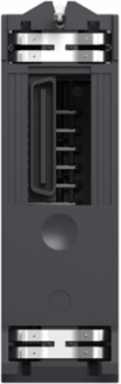

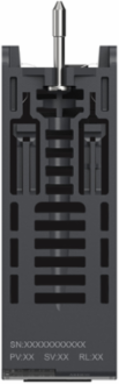

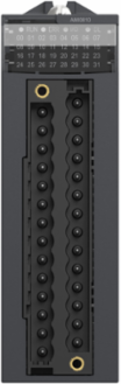

Modicon X80 Analog Input Module, 8 Inputs, IP20, High Level
Modicon X80 Analog Input Module, 8 Inputs, IP20, High Level
Modicon X80 Analog Input Module, 8 Inputs, IP20, High Level
Modicon X80 Analog Input Module, 8 Inputs, IP20, High Level
Modicon X80 Analog Input Module, 8 Inputs, IP20, High Level
Modicon X80 Analog Input Module, 8 Inputs, IP20, High Level
Schneider Electric

Schneider Electric BMXAMI0810 Modicon X80 Analog Input Module, 8 Inputs, IP20, High Level

  • MPN: BMXAMI0810
  • PPN: SCH-BMXAMI0810
  • If you can't find the product or are unsure which one you need, please use the Product Selector tool below

    • CAD

    $2295.69

    / EA

    Available to Order

    Lead times may vary. For an accurate estimate please contact us.

    Company Stock:

    0

    Loading dialog...

    Looking to buy a large quantity?

    To view product inventory

    Spec sheet

    Description

    This high level analog input module is part of the Modicon X80 modules. It has 8 isolated analog inputs (15 bits + sign). This module is connected via 28-way removable terminal block. The module offers different ranges of voltage or current for each of the inputs depending on configuration choice. It occupies a single slot on the rack and it has a case which provides IP 20 protection of the electronics.

    Documentation & Downloads

    Specifications

    Key Specifications

    Country of Origin
    France

    Complementary Attributes

    Maximum Conversion Value
    +/- 11.4 V +/- 10 V, +/- 11.4 V +/- 10 V, +/- 11.4 V 0...10 V, +/- 11.4 V 0...10 V, +/- 11.4 V 0...5 V, +/- 11.4 V 0...5 V, +/- 11.4 V 1...5 V, +/- 11.4 V 1...5 V, +/- 11.4 V +/- 10 V, +/- 11.4 V +/- 10 V, +/- 11.4 V 0...10 V, +/- 11.4 V 0...5 V, +/- 11.4 V 1...5 V, 0...30 mA +/- 20 mA, 0...30 mA 0...20 mA, 0...30 mA 4...20 mA, 0...30 mA +/- 5 V
    Minimum Crosstalk Attenuation80 dB

    Important Information Attributes

    Persona Type Ids
    EU, OM8, SI
    Current Consumption
    150 mA 3.3 V DC, 54 mA 24 V DC
    Isolation Voltage
    300 V DC between channels, 1400 V DC between channels and ground, 1400 V DC between channels and bus
    Measurement Resolution
    0.36 mV +/- 10 V, 0.36 mV 0...10 V, 0.36 mV 0...5 V, 0.36 mV 1...5 V, 0.36 mV +/- 5 V, 1.4 µA +/- 20 mA, 1.4 µA 0...20 mA, 1.4 µA 4...20 mA
    Status Led
    1 LED (Green) RUN, 1 LED per channel (Green) channel diagnostic, 1 LED (Red) ERR, 1 LED (Red) I/O
    Certificate Agency
    CE, RCM, CSA, EAC, Merchant Navy, UL
    Carbon Footprint Of The End-of-life Phase [C1 To C4]
    0.3 kg CO2 eq., 0.29278
    Carbon Footprint Of The Manufacturing Phase [A1 To A3]
    21 kg CO2 eq., 21.082
    Local Data Status
    Publishable
    Return Indicator
    Y
    Stock Policy
    1
    Serviceability
    No
    Field Service Division
    IDIBS
    Manufacturing Carbon Footprint
    21.082
    Weee Scope
    Out
    Scope Perimeter
    At least in Europe
    End Of Life Doc Ref
    ENVEOLI2311046EN
    Reach Full Compliance Status Id
    CONTAINS_SVHC
    Rohs Eur In Scope
    No
    Rohs Eur Conformity Date
    2438
    China Rohs In Scope
    Yes
    With Recycled Cardboard
    Yes
    Product Contributes To Saved And Avoided Emissions
    No
    Tier
    1
    Function Option
    Standard
    Market Segmentation
    Industrial
    Common Mode Rejection
    80 dB
    Fast Read Cycle Time
    1 ms + 1 ms x number of channels used
    Nominal Read Cycle Time
    9 ms for 8 channels
    Product Availability
    Stock - Normally stocked in distribution facility
    Protective Treatment
    standard version
    Returnability
    Yes
    Software Version
    v5.9.4
    Total Lifecycle Carbon Footprint
    113 kg CO2 eq.
    Vibration Resistance
    3 gn
    Database Version
    2022-01
    Pcr Version
    PEP-PCR-ed4-2021 09 06
    Type Of Verification For The Pep
    Independent internal review
    Functional-unit Description
    The Modicon M X80 range has a long life cycle for about more than 10 years with a 100% use rate. Typical electrical power is 1.79W (150 mA 3.3 V DC). The module offers the following ranges of voltage and current :& 10Voltage range: +/-5 V/+/-10 V/0..5 V/0..10 V/1..5 V,& 10Current range: +/-20 mA/0..20 mA/4..20 mA& 10& 10IP Degree of Protection: IP20& 10IEC 61010-2-201, IEC 61131-2,UL 61010-2-201,CSA C22.2 No 61010-2-201
    Functional-unit Unit
    Unit
    Energy Consumption On Product Lifetime, In Kwh
    141.1236
    Energy Model - Installation [A5]
    Electricity Mix; Production mix; Low voltage; US / Electricity Mix; Production mix; Low voltage; UE-27 / Electricity Mix; Production mix; Low voltage; APAC / Electricity Mix; Production mix; Low voltage; AUS
    Energy Model - End Of Life [C1-c4]
    Electricity Mix; Production mix; Low voltage; US / Electricity Mix; Production mix; Low voltage; UE-27 / Electricity Mix; Production mix; Low voltage; APAC / Electricity Mix; Production mix; Low voltage; AUS
    Water Use (M3 Eq); Total Life Cycle
    535903
    Nbr. Of Units In Pkg.
    1
    Take-back
    No
    Climate Change - Fossil Fuels ( Kg Co2 Eq.) Manufacturing [A1-a3]
    21.062
    Climate Change - Total ( Kg Co2 Eq.) Manufacturing [A1-a3]
    21.082
    Depletion Of Abiotic Resources - Fossil Fuels (Mj) Manufacturing [A1-a3]
    249.6
    Depletion Of Abiotic Resources - Fossil Fuels (Mj) End Of Life [C1-c4]
    2.2102
    Ecotoxicity (Fresh Water) (Ctue) Operational Energy Use [B6]
    1368.6
    Hazardous Waste Disposed Of (Kg) Manufacturing [A1-a3]
    101.02
    Impacts Related To Land Use/Soil Quality (-) Total Life Cycle
    1330568
    Ionizing Radiation, Human Health (Kbq Of U235 Equiv.) Manufacturing [A1-a3]
    44586
    Marine Aquatic Eutrophication (Kg Of N Equiv) Operational Energy Use [B6]
    0.0655
    Net Use Of Fresh Water (M3) Total Life Cycle
    1375403
    Net Use Of Fresh Water (M3) End Of Life [C1-c4]
    11553
    Non-hazardous Waste Disposed Of (Kg) Manufacturing [A1-a3]
    56586
    Non-hazardous Waste Disposed Of (Kg) Benefits/Loads Beyond System Boundaries [D]
    -0.1723
    Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Manufacturing [A1-a3]
    249.6
    Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) End Of Life [C1-c4]
    22102
    Total Use Of Primary Energy During The Life Cycle (Mj) Manufacturing [A1-a3]
    258.99
    Total Use Of Primary Energy During The Life Cycle (Mj) End Of Life [C1-c4]
    24029
    Total Use Of Renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Total Life Cycle
    2156933
    Total Use Of Renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Operational Energy Use [B6]
    206.1
    Use Of Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Total Life Cycle
    27309
    Use Of Non-renewable Primary Energy, Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Total Life Cycle
    1951.53
    Use Of Non-renewable Primary Energy, Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6]
    1702
    Use Of Renewable Primary Energy, Excluding Renewable Primary Energy Resources Used As Raw Materials (Mj) Total Life Cycle
    2150311
    Use Of Renewable Primary Energy, Excluding Renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6]
    206.1
    Water Use (M3 Eq) Manufacturing [A1-a3]
    58454
    Water Use (M3 Eq) End Of Life [C1-c4]
    44137
    Persona Type NamesEnd User, OEM - Control Panelbuilder, System Integrator
    Digital Value Format- 32768 to + 32767 in maximum user scale, +/- 10000 by default, - 32768 to + 32767 in maximum user scale, +/- 10000 by default
    Measurement Error<= 0.1 % of full scale +/- 10 V 0...60 °C, <= 0.1 % of full scale +/- 10 V 0...60 °C, <= 0.1 % of full scale +/- 10 V 0...60 °C, <= 0.1 % of full scale +/- 5 V 0...60 °C, <= 0.1 % of full scale +/- 5 V 0...60 °C, <= 0.1 % of full scale +/- 5 V 0...60 °C, <= 0.1 % of full scale 0...10 V 0...60 °C, <= 0.1 % of full scale 0...10 V 0...60 °C, <= 0.1 % of full scale 0...10 V 0...60 °C, <= 0.1 % of full scale 0...5 V 0...60 °C, <= 0.1 % of full scale 0...5 V 0...60 °C, <= 0.1 % of full scale 0...5 V 0...60 °C, <= 0.1 % of full scale 1...5 V 0...60 °C, <= 0.1 % of full scale 1...5 V 0...60 °C, <= 0.1 % of full scale 1...5 V 0...60 °C, <= 0.3 % of full scale +/- 20 mA 0...60 °C, <= 0.3 % of full scale +/- 20 mA 0...60 °C, <= 0.3 % of full scale +/- 20 mA 0...60 °C, <= 0.3 % of full scale 0...20 mA 0...60 °C, <= 0.3 % of full scale 0...20 mA 0...60 °C, <= 0.3 % of full scale 0...20 mA 0...60 °C, <= 0.3 % of full scale 4...20 mA 0...60 °C, <= 0.3 % of full scale 4...20 mA 0...60 °C, <= 0.3 % of full scale 4...20 mA 0...60 °C, 0.15 % of full scale 0...20 mA 25 °C, 0.15 % of full scale 4...20 mA 25 °C, 0.075 % of full scale 0...10 V 25 °C, 0.075 % of full scale 0...5 V 25 °C, 0.075 % of full scale 1...5 V 25 °C, 0.075 % of full scale +/- 5 V 25 °C<= 0.1 % of full scale +/- 10 V 0...60 °C, <= 0.1 % of full scale +/- 10 V 0...60 °C, <= 0.1 % of full scale +/- 10 V 0...60 °C, <= 0.1 % of full scale +/- 5 V 0...60 °C, <= 0.1 % of full scale 0...10 V 0...60 °C, <= 0.1 % of full scale 0...5 V 0...60 °C, <= 0.1 % of full scale 1...5 V 0...60 °C, <= 0.3 % of full scale +/- 20 mA 0...60 °C, <= 0.3 % of full scale +/- 20 mA 0...60 °C, <= 0.3 % of full scale 0...20 mA 0...60 °C, <= 0.3 % of full scale 4...20 mA 0...60 °C, 0.15 % of full scale +/- 20 mA 25 °C, 0.075 % of full scale +/- 10 V 25 °C
    Power Consumption In W1.06 W 24 V DC typical, 1.50 W 24 V DC maximum, 0.32 W 3.3 V DC typical, 0.48 W 3.3 V DC maximum
    Temperature Drift30 ppm/°C +/- 10 V, 30 ppm/°C +/- 5 V, 30 ppm/°C 0...10 V, 30 ppm/°C 0...5 V, 30 ppm/°C 1...5 V, 50 ppm/°C +/- 20 mA, 50 ppm/°C 0...20 mA, 50 ppm/°C 4...20 mA
    Carbon Footprint Of The Distribution Phase [A4]0.021576, 0 kg CO2 eq.
    Carbon Footprint Of The Installation Phase [A5]0.043936, 0 kg CO2 eq.
    Carbon Footprint Of The Use Phase [B2, B3, B4, B6]92 kg CO2 eq., 92.011
    Local Publishable Date2026-03-25
    Stocking FlagY
    Device TypePLC System - PLC Component
    TraceabilityYes
    Average Life Duration20 year(s)
    Use Carbon Footprint92.011
    Weee Product Category5
    Eoli Availability DisplayYes
    Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
    Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
    Rohs Eur StatusCompliant By Exemption
    Rohs Eur Full Compliance StatusCompliant By Exemption
    China Rohs Label5
    Without Single Use PlasticYes
    Tier Id1
    Function Option IdSTANDARD
    Market Segmentation IdINDUSTRIAL
    Product Kit IdentifierN
    Electrical Connection28 ways 1 connector
    Mtbf Reliability900000 H
    Precision Of Internal Conversion Resistor0.1 % - 15 ppm/°C
    Product Or Component Typeanalog input module
    Range Of ProductModicon X80
    Shock Resistance30 gn
    Sustainable PackagingYes
    Type Of Filterfirst order digital filtering
    Pep CodeENVPEP2311046EN
    Pep Verification Date2023-11-01
    Psr VersionPSR-0005-ed2-2016 03 29
    Data Sourcereferent product
    Functional-unit Quantity1
    Reference Lifetime, In Y10
    Energy Model - Manufacturing [A1-a3]Energy model used: Electricity Mix; Production mix; Low voltage; FR
    Energy Model - Use [B6]Electricity Mix; Production mix; Low voltage; US / Electricity Mix; Production mix; Low voltage; UE-27 / Electricity Mix; Production mix; Low voltage; APAC / Electricity Mix; Production mix; Low voltage; AUS
    Recyclability Potential, In %3
    Analog/Digital Conversion16 bits
    Package Weight(Lbs)157.000 g
    Warranty (In Months)18
    Climate Change - Fossil Fuels ( Kg Co2 Eq.) Operational Energy Use [B6]91.951
    Climate Change - Total ( Kg Co2 Eq.) Operational Energy Use [B6]92.011
    Depletion Of Abiotic Resources - Fossil Fuels (Mj) Operational Energy Use [B6]1702
    Ecotoxicity (Fresh Water) (Ctue) Manufacturing [A1-a3]267.09
    Ecotoxicity (Fresh Water) (Ctue) End Of Life [C1-c4]86.541
    Hazardous Waste Disposed Of (Kg) Operational Energy Use [B6]2.2234
    Ionizing Radiation, Human Health (Kbq Of U235 Equiv.) Total Life Cycle4667711
    Ionizing Radiation, Human Health (Kbq Of U235 Equiv.) Operational Energy Use [B6]42211
    Materials For Recycling (Kg) Installation [A5]0.006
    Net Use Of Fresh Water (M3) Manufacturing [A1-a3]0.1361
    Non-hazardous Waste Disposed Of (Kg) Total Life Cycle203294
    Non-hazardous Waste Disposed Of (Kg) Operational Energy Use [B6]14539
    Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Total Life Cycle1954.26
    Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Operational Energy Use [B6]1702
    Total Use Of Primary Energy During The Life Cycle (Mj) Total Life Cycle2169952
    Total Use Of Primary Energy During The Life Cycle (Mj) Operational Energy Use [B6]1908.1
    Total Use Of Primary Energy During The Life Cycle (Mj) Benefits/Loads Beyond System Boundaries [D]-0.5349
    Total Use Of Renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Manufacturing [A1-a3]93911
    Total Use Of Renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) End Of Life [C1-c4]0.1927
    Use Of Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Manufacturing [A1-a3]27309
    Use Of Non-renewable Primary Energy, Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Manufacturing [A1-a3]246.87
    Use Of Non-renewable Primary Energy, Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) End Of Life [C1-c4]22102
    Use Of Renewable Primary Energy, Excluding Renewable Primary Energy Resources Used As Raw Materials (Mj) Manufacturing [A1-a3]87289
    Use Of Renewable Primary Energy, Excluding Renewable Primary Energy Resources Used As Raw Materials (Mj) End Of Life [C1-c4]0.1927
    Water Use (M3 Eq) Operational Energy Use [B6]36028

    Environment Attributes Main

    Ambient Air Temperature For Storage
    -40-85 °C, -40-85 °C
    Operating Altitude
    0...6561.68 ft (0...2000 m), 2000...5000 m with derating factor
    Recycled Metal Content At Cr Level
    0 %
    Mercury Free
    Yes
    Ambient Air Temperature For Operation
    0-60 °C
    Environmental Disclosure
    ENVPEP2311046EN
    Ip Degree Of Protection
    IP20
    Packaging Without Single Use Plastic
    Yes
    Relative Humidity
    5-95 % 55-55 °C without condensation
    Pep Verification Date
    2023-11-01
    Psr Version
    PSR-0005-ed2-2016 03 29
    Directives2014/35/EU - low voltage directive, 2014/30/EU - electromagnetic compatibility
    Take BackNo
    China Rohs RegulationX
    Carbon Footprint113.451292
    Circularity ProfileENVEOLI2311046EN
    Eu Rohs DirectiveCompliant By Exemption
    Packaging Made With Recycled CardboardYes
    Reach RegulationReference contains Substances of Very High Concern above the threshold
    Pep CodeENVPEP2311046EN
    Pcr VersionPEP-PCR-ed4-2021 09 06
    Type Of Verification For The PepIndependent internal review

    General Attributes

    Product Or Component Type
    analog input module
    Range Of ProductModicon X80

    ETIM

    ETIM 8
    EC001420
    ETIM 9EC001420

    Surge Protection And Filtering Attributes

    Type Of Filter
    first order digital filtering

    Contractual Warranty Attributes

    Warranty Period
    18 months
    Warranty18 months

    Input Attributes

    Analogue Input Type
    current +/- 20 mA, current 0...20 mA, current 4...20 mA, voltage +/- 10 V, voltage +/- 5 V, voltage 0...10 V, voltage 0...5 V, voltage 1...5 V
    Input Output Isolation
    isolated, isolated
    Analogue Input Number
    8
    Input Level
    high level
    Input Impedance10 MOhm in voltage mode, 250 Ohm + 3.6...50 Ohm internal protective resistor in current mode
    Permitted Overload On Inputs+/- 30 mA 0...20 mA, +/- 30 mA 0...20 mA, +/- 30 mA 4...20 mA, +/- 30 mA 4...20 mA, +/- 30 V +/- 10 V, +/- 30 V +/- 10 V, +/- 30 V +/- 5 V, +/- 30 V +/- 5 V, +/- 30 V 0...10 V, +/- 30 V 0...10 V, +/- 30 V 0...5 V, +/- 30 V 0...5 V, +/- 30 V 1...5 V, +/- 30 V 1...5 V, +/- 30 mA +/- 20 mA, +/- 30 mA +/- 20 mA, +/- 30 mA 0...20 mA, +/- 30 mA 0...20 mA, +/- 30 mA 4...20 mA, +/- 30 V +/- 10 V, +/- 30 V +/- 10 V, +/- 30 V +/- 5 V, +/- 30 V 0...10 V, +/- 30 V 0...5 V, +/- 30 V 1...5 V, +/- 30 mA +/- 20 mA
    Analogue Input Resolution15 bits + sign
