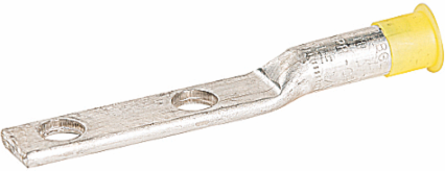

Blackburn GLE 750 N Aluminum Two-Hole CSA Die Lugs, 7.5 Inch Length, 1/2 Inch Bolt Size, For 750 Conductors
- MPN: GLE 750 N
- UPC: 783786729708
- PPN: T-B-GLE 750 N
CAD
$148.72
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Aluminum Two-Hole Compression Lug, use with CSA Die 30, Use with Aluminum and Copper Conductors, 750 Stranded - Compressed - Compact, Uses 1/2 Inch Bolt (not included). Overall Length 7.50 inch. Two 1/2 inch holes spaced 1.750 inch center to center. Oxide Inhibiting Compound with Yellow Cap.
Features
- Entire Conductor Range Installed by Four Dies to Reduce Die Inventory.
- Dual-Rated for Use with Aluminum and Copper Conductors.
- Made from Aluminum for High Strength and Conductivity.
- Prefilled with Oxide Inhibitor to Prevent Oxidation and Keep Out Moisture.
- All Lugs Marked with Conductor Size and Die References for Easy Identification.
- Meets or Exceeds ANSI C119.4 Specifications.
Documentation & Downloads
Specifications
Packaging
- Outer Quantity
- 25
- Weight Uom
- 0.6 lbs. Each
Outer Dimensions (inches)13.375x8.25x7.875
North American Specifications (UNSPSC)
- UNSPSC
- 39121448 Wire or cable compression connector
- Brand Name
- Blackburn
- Special Features
- Use with Aluminum and Copper Conductors. Provide high strength and high conductivity. Prevents oxidation and keeps out moisture. Easy Identification.
- Standard
- ANSI C119.4
- Conductor Range
- 750
- Finish
- Bare
- Number Of Mounting Holes
- 2
- Mounting Hole Spacing
- 1.750 inch Center to Center
IGCC4668 Wire or cable compression connector
TypeTwo-Hole CSA Die Lugs
ApplicationCompression Connector
SizeLength 7.5 inches
MaterialAluminum
InsulationNo
Bolt Size1/2 inch
