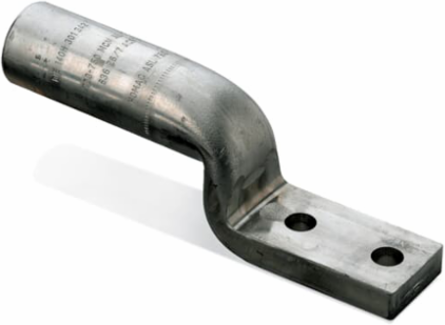

Blackburn ASL 400 N Aluminum Compression Lug Two Hole Stacking 7-5/16 Inch for 400 kcmil
Blackburn ASL 400 N Aluminum Compression Lug Two Hole Stacking 7-5/16 Inch for 400 kcmil
- MPN: ASL 400 N
- UPC: 783786696550
- PPN: T-B-ASL 400 N
- UNSPSC: 39121409
Spec sheet
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$105.33/ EA
Description
Aluminum Two-Hole NEMA Lugs - Stacking lug, 397.5 to 400 kcmil AL-CU, ACSR 336.4(26/7) and 397.5 (18/1), installing dies 96, 472, 655, 1, 1/8-1, 705, 13A. Length 6-7/8 inch. Pad 1-43/64 inch wide x 3 inch long x 25/64 inch thick. (2) 9/16 inch holes on 1-3/4 inch centers. Barrel 2-7/16 inch long x 1-3/16 inch Outside Diameter. Oxide Inhibitor. Green Cap.
Specifications
Classifications
- WEEE Category
- Product Not in WEEE Scope
IDEA Granular Category Code (IGCC)4543 >> Wire connectors
Additional Information
- Application
- General purpose lugs for Aluminum and Copper terminations.
- Connection Type
- Compression
- Product Name
- ELECTRICAL TERMINAL<1000V
- Size
- Length 7-5/16 inches X 1-3/4 inch wide
- Standards
- ANSI C119.4
Brand / LabelHomac
Effective Date20080619
Product TypeCompression Lug Two Hole Stacking
Special FunctionsMade from Aluminum which provides high strength and high conductivity. Dual-rated. Use with Aluminum and Copper conductors. Prefilled with oxide inhibitor to prevent oxidation and keep out moisture. All lugs marked with conductor sizes and die reference for easy identification.
Wire Size400 kcmil397.5 kcmil
Ordering
- Country of Origin
- United States (US)
Selling Unit of Measureeach
