Burndy

Burndy YAZ302N Long Length Barrel YAZ302N

Long Length Barrel YAZ302N
  • MPN: YAZ302N
  • UPC: 781810227886
  • PPN: HBL-YAZ302N

Spec sheet

Available to Order

Company Stock:

0

Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST

Looking to buy a large quantity?

To view product inventory

CAD$7.69/ E

Description

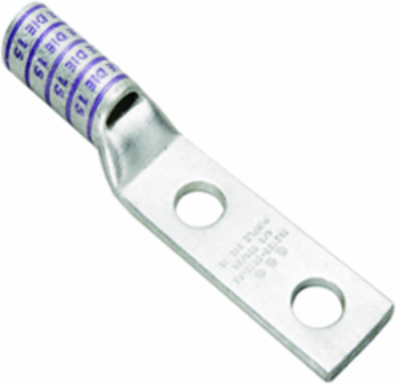

Copper Compression Lug, 2 Hole w/ Inspection Window, 300 kcmil, 1/2" Stud, 1-3/4" Stud Hole Spacing, Long Barrel, Tin Plated.

Specifications

Dimensions

Dimension - B Length fraction
2 in
Dimension - Bolt Hole Size inch
0.52 in
Dimension - D inch
3.01 in
Dimension - Hole Size mm
14 mm
Dimension - Length Overall inch
5.60 in
Dimension - Outside Diameter inch
0.81 in
Dimension - Strip Length inch
2-1/16
Dimension - Thread Size
1/2
Physical Attribute - Tongue Angle
Straight
Dimension - B Length inch2.00 in
Dimension - Bolt Size fraction1/2
Dimension - Hole Size inch0.56 in
Dimension - L Length Overall mm142 mm
Dimension - N inch0.62 in
Dimension - Pad Width inch1.20 in
Dimension - Stud Size inch1/2
Dimension - Z inch0.64 in

Certifications and Compliance

Certification - CSA Approved
Yes
Certification - UL Recognized
No
Industry Standard(s)
UL468A-468B
Standards - RoHS Compliance Status
CM
Certification - ETLNo
Certification - cULusNo
Standards - Industry Standards MetUL468A-468B
UL ListedYes

Conductor Related

Conductor - Copper Str Navy Size
300 (91) Navy
Conductor - Copper Str Size
300 kcmil
Conductor - Material
Copper
Conductor - Copper Str Navy Size Range300 (91) Navy
Conductor - Copper Str Size Range300 kcmil

General

Application
For Code Conductor
Connector Type
Terminal
Feature - Barrel Style
Skived
Material
Copper
Plated
Y
Sub Brand
HYLUG
Trade Name
HYLUG™
UPC
781810227886
Color CodeWhite
Die Index17;298
Feature - Barrel TypeLong
Physical Attribute - Number of Holes2
Plating TypeTin - Electro Plated
Temperature Rating194
TypeLong Barrel, Skive, Tin Plated
UPC 12 Digit7818102278866

Electrical Ratings

Rating - KVA
35 kV
Voltage - Maximum
35000
Rating - Minimum Voltage600

Logistics

Minimum Pack Quantity
