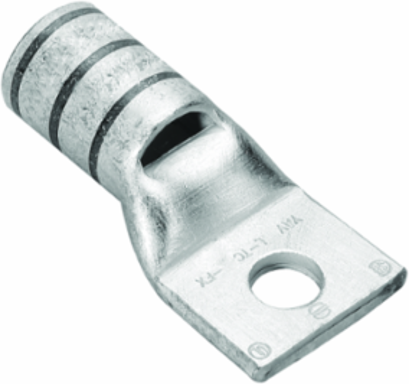

Burndy YAV6CLTC38FX Copper Compression Lug, 1 Hole, 6 AWG, 3/8 Inch Stud, Tin Plated
- MPN: YAV6CLTC38FX
- UPC: 781810022870
- PPN: BUR-518552
CAD
$16.40
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Copper Compression Lug, 1 Hole w/ Inspection Window, 6 Flex, 3/8" Stud, Short Barrel, Tin Plated.
Features
- Featuring a clearly visible inspection hole, this compression lug allows you to visually verify that your #6 AWG copper conductor is pushed perfectly to the back of the barrel. This fail-safe design guarantees a secure, maximum-contact crimp every single time, actively preventing localized electrical heating and dangerous cable pull-outs in high-vibration industrial panel applications.
- Specifically engineered with a smoothly beveled entry, this terminal allows for the rapid, snag-free insertion of highly flexible #6 AWG DLO (Diesel Locomotive) and Class G-M stranded copper cables. This eliminates the frustrating, time-consuming struggle of splayed wire strands, dramatically speeding up your termination process during complex commercial wiring jobs.
- Manufactured from seamless, highly conductive copper and sealed with an electro-tin finish, this single-hole 3/8-inch stud terminal actively defends against both environmental moisture and bimetallic galvanic corrosion. Relying on OEM-grade, tin-plated hardware ensures your heavy-duty switchgear, battery banks, and grounding connections remain highly reliable and maintenance-free for decades.
- The terminal barrel is permanently stamped with a bright blue color code and exact die index numbering, eliminating any guesswork when selecting the right Burndy hydraulic crimping tool on the job site. This precise tooling alignment ensures a structurally flawless, uniform compression that fully satisfies strict UL 486A-486B and CSA safety standards for up to 35kV electrical distribution systems.
Documentation & Downloads
Specifications
Additional
- Voltage
- 600 V - 35000 V
- Stud Size
- 3/8 in
- Hole Size
- 0.40 in (10 mm)
- Pad Width
- 0.58 in
- Strip Length
- 1/2 in
- Z
- 0.42 in
- Material
- Copper
- Barrel Type
- Standard
- Tongue Angle
- Straight
- Certification
- CSA Approved, UL Listed
Rating - KVA35 kV
Length Overall1.61 in (41 mm)
Outside Diameter0.31 in
B Length1/2 in
N0.41 in
Number of Holes1
Plating TypeTin - Electro Plated
Tongue TypeStandard
Color CodeBlue
RoHS Compliance StatusCM
